Dake 29″ x 18″ Work-A-Matic Vertical Band Saw, SXC
Inventory # 8439
Model: SXC
P/N: 988040
Description:
The Dake Work-A-Matic vertical band saw is a gravity feed saw that allows for hands-free operation
Specifications:
Blade Width: 1/4″ – 3/4″
Blade Length: 120″
Blade Speed: 70 / 140 / 270 / 540 FPM
Blade Travel: 9″
Number of Band Wheels: 2
Band Wheels Size: 14″ Diameter
Mitering: 45°
Max. Work Height: 14 1/2″
Work Table Dimensions: 29″ x 18″
Worktable Tilt: Fixed
Worktable Height: 36 1/2″
Motor: 1 HP / 120v / 1ph
Standard Features:
Gravity feed. The blade feeds into the material by gravity, which allows for hands-free operation
Fast set-up. Effortless changes between a cut-off saw, a contour saw, and a rip saw. The fast set-up makes it ideal for production
Low voltage controls with thermal overload and E-stop for emergency stop-and-start situations
The frame and base are heavy-duty welded steel for rigidity. Built to handle the toughest environments
Variable feed rate system with hydraulic feed regulator that features a convenient front-mounted flow control valve
Four blade speeds and infinitely adjustable blade pressure
Enclosed guarding for step pulley and bottom wheel assembly
Standard Equipment:
C-Clamp Assembly
One Standard Blade
Steel Base
Cutting Chart
Head Lock
Miter Gauge
Hydraulic Feed Control
Mechanical Specifications:
Dimensions: 29″ x 40″ x 66″ H
Weight: approx. 810 lbs.
FOB Factory – Contact us for Pricing and Availability

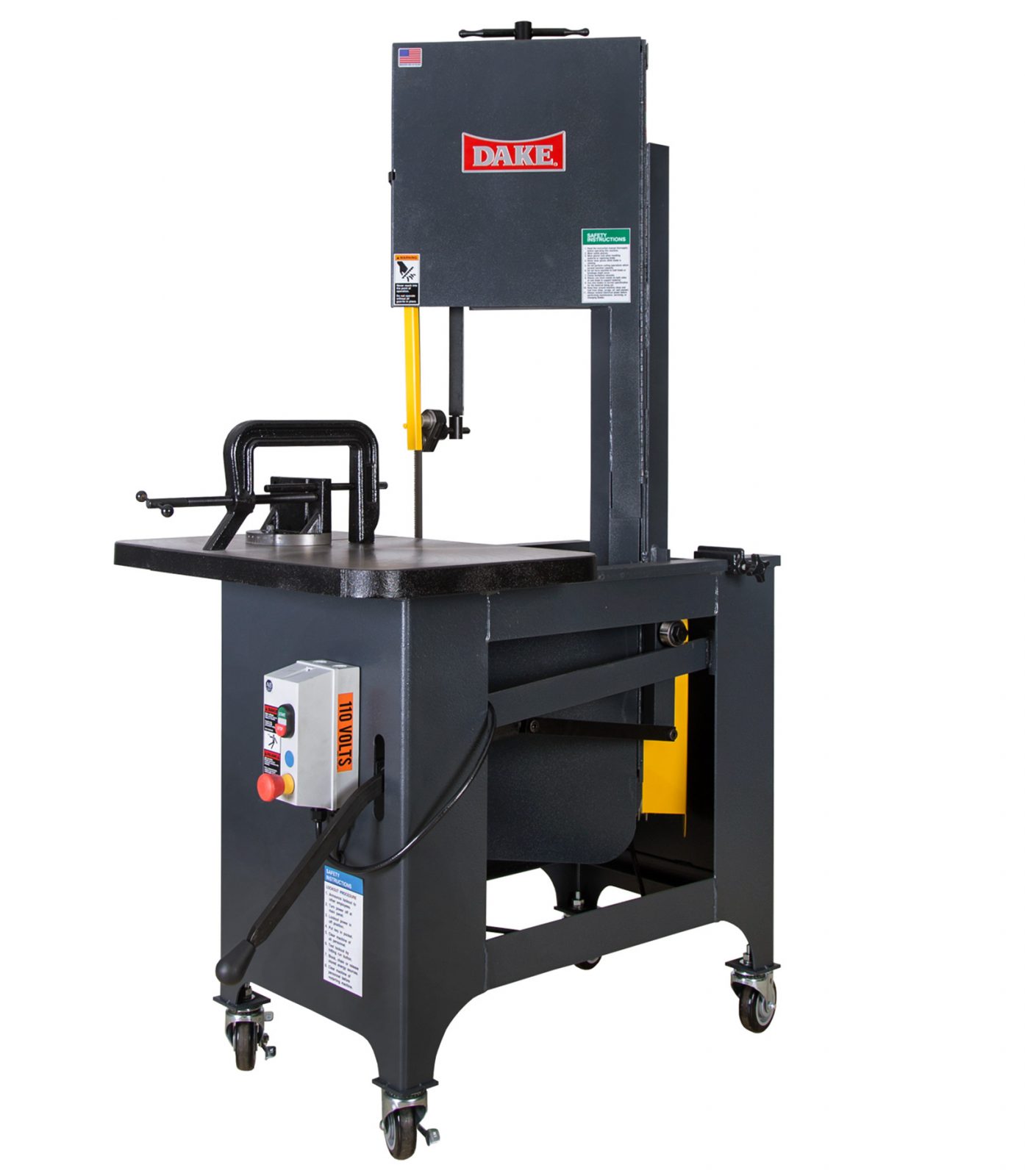

Please Note: Casters Shown in Photo are an Additional Cost
