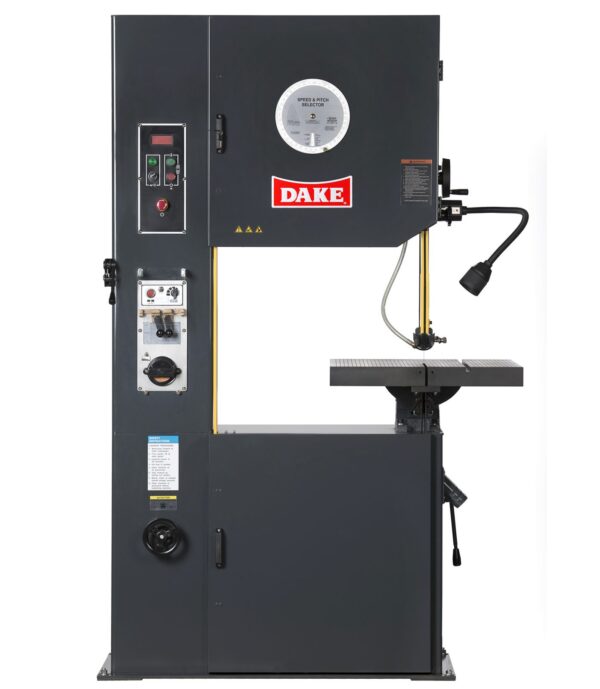

Dake 26″ Industrial Vertical Band Saw, V-26
Inventory # 8456
Model: V-26
Model: 987031
Description:
This heavy duty vertical band saw is designed for large production pieces. A 26″ capacity, multi-tilting table, and variable
speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch
selector, door safety switches, and a work light. Complete with a built-in welder/grinder/cutter, this saw is sure to get the
job done
Specifications:
Blade Width: 1/4″ – 1″
Blade Length: 184 1/4″
Blade Speed:
Low: 50 – 415 FPM
High: 550 – 5,000 FPM
Band Wheels Number: 2
Band Wheels Size: 26 1/4″
Throat Size, Band to Column: 26″
Max. Work Height: 13″
Work Table Dimensions: 23 1/2″ x 27 1/2″
Worktable Tilt: 45° Right, 10° Left
Worktable Height: 84″
Motor: 3 HP / 220v, 440v / 3ph
Standard Features:
Variable speeds with 50 – 145 feet per minute in low range and 550 – 5,000 feet per minute in the high range
26″ saw for intermediate-size work-pieces
Adjustable table
Digital speed indicator for clear readout
Work light comes standard for increased visibility
Low voltage controls, main power lock out switch and door limit switches
Heavy cast, tilting table with chip clearance grooves
Built-in blade welder with grinder and shear to easily fix broken blades
Standard Equipment:
Heavy Duty Frame
Rip Fence
Work Light
Blade Welder / Grinder / Shear
Speed Indicator (Digital Readout)
Blade Tension Indicator
Digital Tachometer
Chip Blower and Blade Brush
One Standard Blade
Mechanical Specifications:
Floor Space: 51″ x 32″
Weight: approx. 1,540 lbs.
FOB Factory – Contact us for Availability
