Description

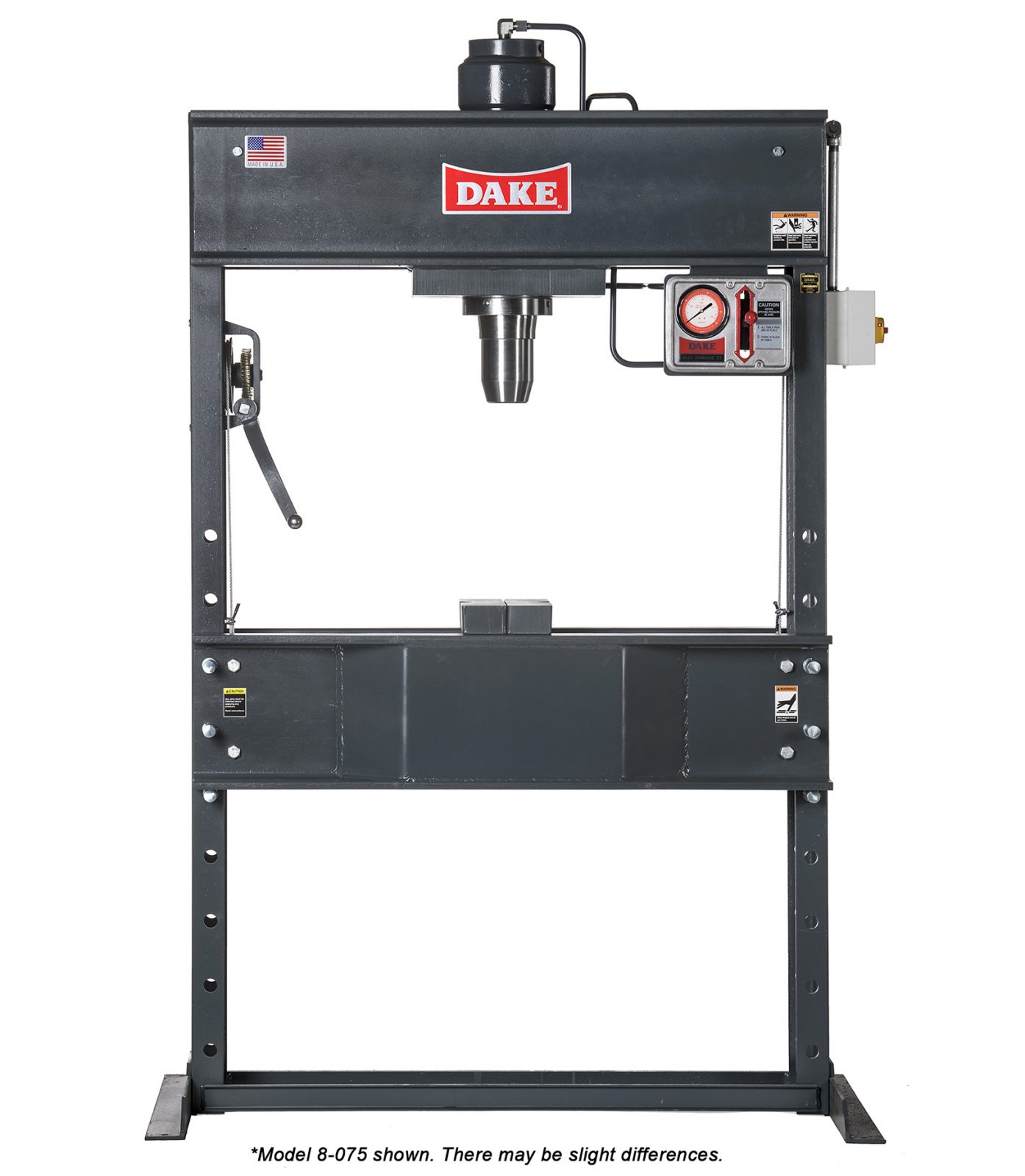

Dake 25 Ton “Elec-Draulic II” Press, 8-025
Inventory # 8426
Model: 8-025
P/N: 908025
Description:
The 25 ton elec-hydraulic II dual acting press has an adjustable table, 15 IPM speed, and a double-acting cylinder. This
series is great for super-sensitive ram control with simple operation
Specifications:
Capacity:
Pressing: 25 Tons
Pulling: 10 Tons
Operation: Electric
Width Between Uprights: 32 3/4″
Width Between Table Channels: 7 1/4″
Min. Ram to Table: 11 3/4″
Max. Ram to Table: 46 3/4″
Ram Travel: 10″
Pressing Speed: 15 IPM
Speed: 1,800 RPM
Motor: 2 HP / 220v, 440v / 3ph
Standard Features:
Electric operation provides smooth, consistent pressing action
Variable ram speed allows fingertip control of ram movement for precise pressure control
H-frame mounted control allows convenient control of press when workhead is out of operator’s reach
Adjustable table permits easy vertical movement by means of self-locking hoist
Double-acting cylinder permits pulling as well as pressing ram action
Safety valve protects against overloads
T-ring seals prevent pressure loss
Optional bolt flange for tooling attachment may be substituted for flat ram nose
Standard Equipment:
Frame
Two Steel V-Blocks
Flat Ram Nose
Pump
Safety Relief Valve
Self-Locking Table Hoist
Double Acting Workhead
Two Steel Table Plates
Pressure Gauge
Mechanical Specifications:
Dimensions: 43 1/2″ x 36″ x 83″ H
Weight: approx. 1,060 lbs.
Contact us for special pricing and availability
FOB Factory
