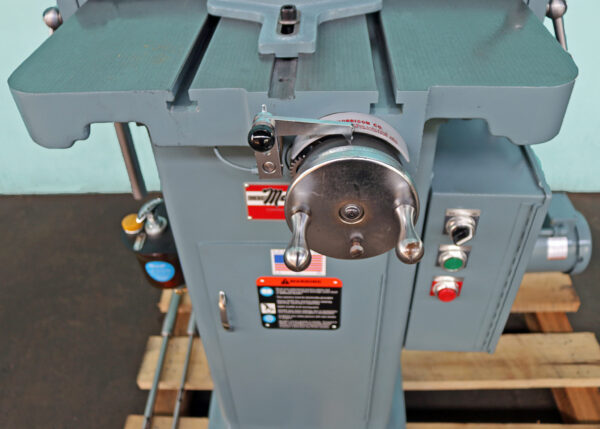

D.C. Morrison 1 1/4″ Heavy Duty Variable Speed Keyseater
Inventory # 8336
Model: 1 1/4″ Heavy Duty Keyseater
Made in USA
Description:
This heavy duty Morrison 1 1/4″ variable speed keyseater is for you if you have to cut keyways into stainless or other exotic materials. Normally it can be a real problem with these materials to cut a keyway. D.C. Morrison has eliminated this problem by using an adjustable speed drive unit. By slowing the surface speed of the tool, the standard M-2 high speed steel cutters are, with proper lubrication, sufficient to produce a nice keyway without excessive wear on the tool. There are no electrics involved, just turn the handle on the reducer to change speeds and you are ready to tackle the mostdifficult job!
Specifications:
Cuts Keyways: 1/16″ – 1 1/4″
Max. Length of Cut: 9″
Length of Stroke: 3″, 4 1/2″, 6″, 7 1/2″, and 9″
Strokes per Minute: Adjustable
Number of Feeds: .002″, .004″, .006″
Largest Diameter Cutter Bar: 1 1/4″
Distance from 1″ Cutter to Column: 16 1/4″
Max. Distance Under Standard Clamps: 14″
Distance Between Clamps: 25 1/2″
Table Size: 24″ x 27″
Table Height from Floor: 36″
Floor Space Required: 32″ x 36″
Motor: 2 HP / 220v, 440v / 3ph
Standard Features:
Automatic Feed
Automatic Stop
Automatic Relief
Quick Set-Up
Uses Single Tooth Cutters
Adjustable Stroke
Automatic Centering
Automatic Lubrication
Doesn’t Use Bushings
Mechanical Specifications:
Dimensions: 36″ x 48″ x 54″ H
Shipping Weight: approx. 1,350 lbs.
FOB Factory
Please Note: Extended Lead-Time Estimated 6 to 12 Months
