Description

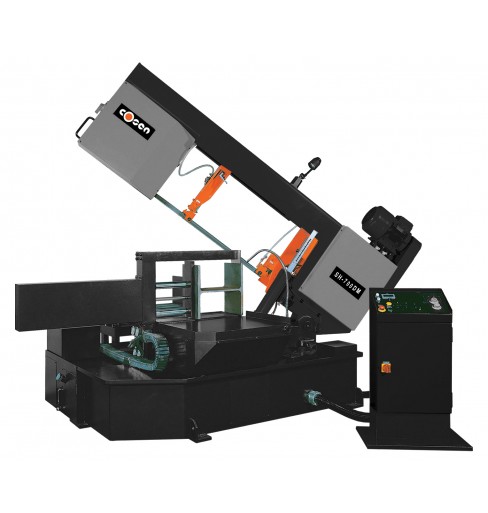

Cosen 17.7″ Semi-Automatic Hydraulic Swivel Head Double Mitering Horizontal Band Saw, SH-700DM
Inventory # 7555
Model: SH-700DM
Description:
The swivel sawhead allows the user to lock and cut at any angle up to 60°. The precision pivot system facilitates easy and accurate adjustment for angle cuts. Cosen’s SH-700DM utilize a protractor and pointer in clear view and away from any chips covering the numbers
Specifications:
Capacities:
Round:
@ 0°: 17.7″
@ ±45°: 17.7″
@ +60°: 11.8″
Rectangle:
@ 0°: 17.7″ x 27 1/2″
@ ±45°: 17.7 x 20 1/2″
@ +60°: 17.7″ x 11.8″
Saw Blade:
Speed: 66 – 330 FPM
Size: 228″ x 1.6″ x 0.05″
Blade Motor: 7.5 HP
Vise Control: Hydraulic Full Stroke Cylinder
Workbed Height: 29 1/2″
Mechanical Specifications:
Dimensions: 106.3″ x 124″ x 107″ H
Weight: approx. 5,280 lbs.
FOB Factory – Contact us for Availability
