Description

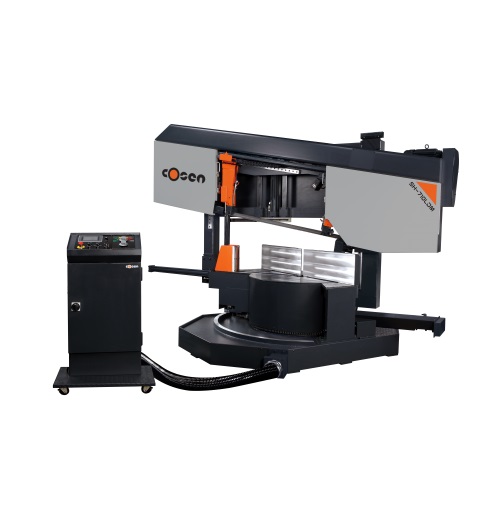

Cosen 18 1/2″ Semi-Automatic Double Column Double Mitering Horizontal Band Saw, SH-710DM
Inventory # 7550
Model: SH-710DM
Description:
Rarely do you find such a versatile horizontal double miter-cutting band saw with such a large capacity. With the SH-710DM, you can miter-cut either forward or backward up to 60°. The 10° blade cant is designed specifically for cutting structural steel such as H-beam, I-beam, channel and profiles at the maximized cutting conditions
Specifications:
Capacities:
Round:
@ 0°: 18 1/2″
@ ±45°: 16 1/2″
@ ±60°: 11.8″
Rectangle:
@ 0°: 16 1/2″ x 28″
@ ±45°: 16 1/2″ x 17.7″
@ ±60°: 16 1/2″ x 11.8″
Saw Blade:
Speed: 82 – 330 FPM
Size: 257 1/2″ x 1.6″ x 0.05″
Motor: 7.5 HP
Hydraulic Tank: 9.2 Gallons
Coolant Tank: 19.8 Gallons
Tension: Hydraulic
Workbed Height: 26.4″
Standard Features:
10° blade cant for cutting large structural material
Rigid linear-guide square columns design
Power gear driven rotating mechanism
Hydraulic angle lock-down
Specially designed heavy-duty gearbox
Inverter-controlled blade speed
Hydraulic clamping vise
5.7″ HMI touch screen with error code feedback
Instant readout on blade speed, blade life and miter angle
Precision feed rate and feed pressure valve
Adjustable control panel at waist level
Mechanical Specifications:
Dimensions: 128″ x 126″ x 76″ H
Weight: approx. 6,380 lbs.
FOB Factory – Contact us for Availability
