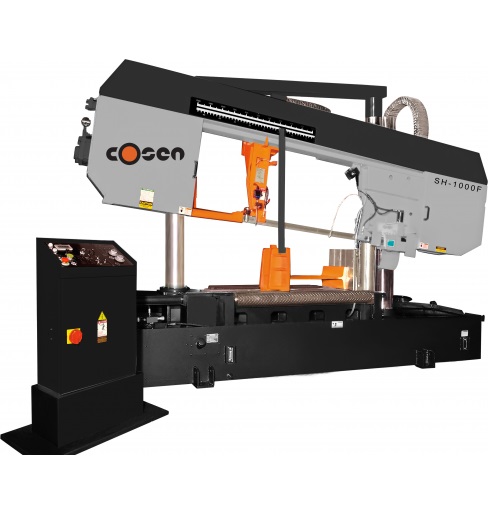

Cosen 26″ Wide Flange Semi-Automatic Horizontal Column Band Saw, SH-1000F
Inventory # 7560
Model: SH-1000F
Description:
This straight cutting band saw adopts the canted frame design available from 0° to 7.5° or 10°, which is particularly useful when cutting structural material giving you better cutting efficiency and blade life. The dual column, cross link and saw frame hydraulic cylinders as a group form a very rigid structure maximizing your productivity, particularly in pack cutting
Specifications:
Capacities:
Round: 26″
Rectangle: 40″ x 20 1/2″
Saw Blade:
Speed: 66 – 330 FPM
Size: 315″ x 2″ x 0.063″
Blade Motor: 10 HP
Workbed Height: 25.6″
Mechanical Specifications:
Dimensions: 54″ x 157 1/2″ x 103″ H
Weight: approx. 12,320 lbs
FOB Factory – Contact us for Availability
