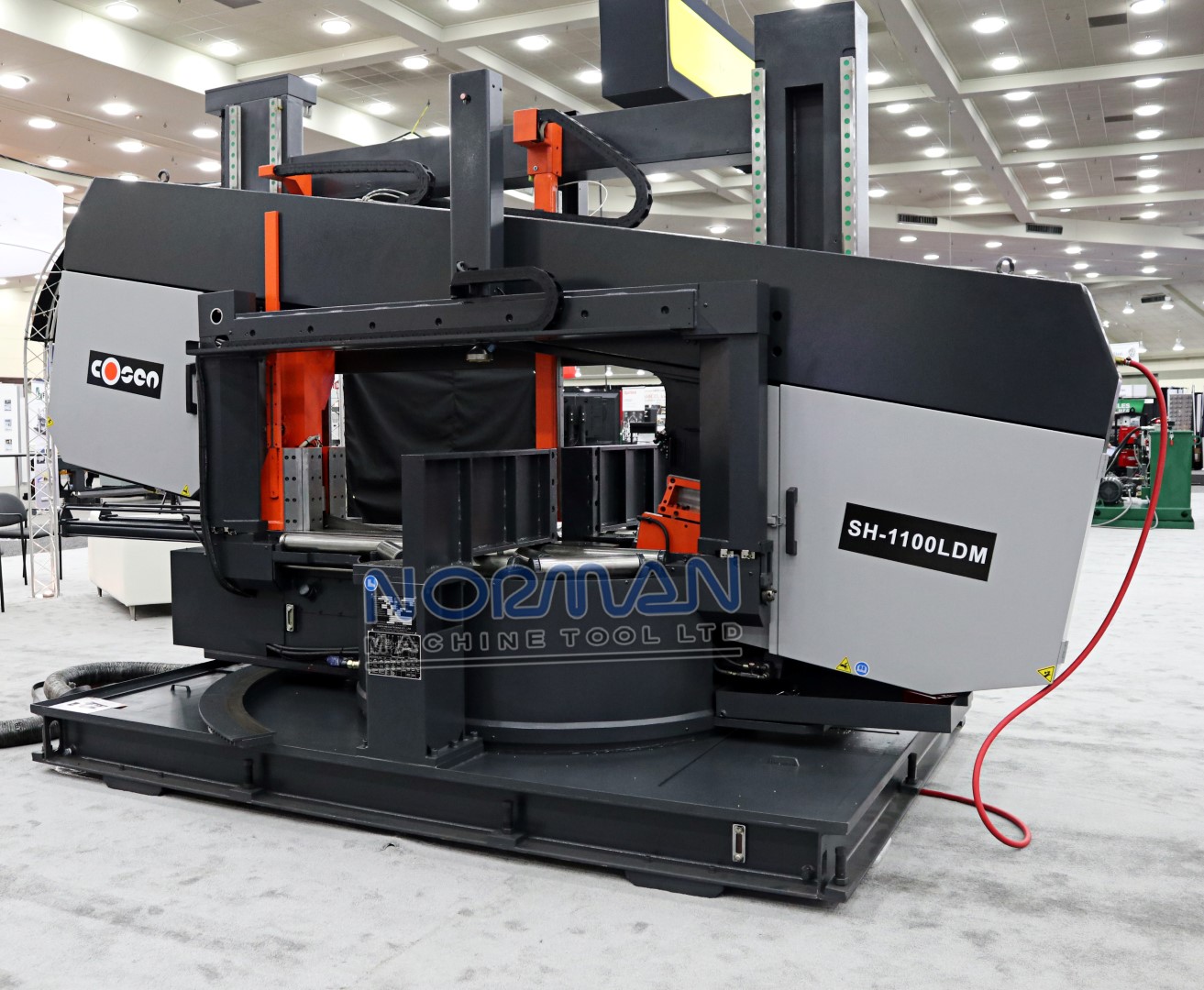

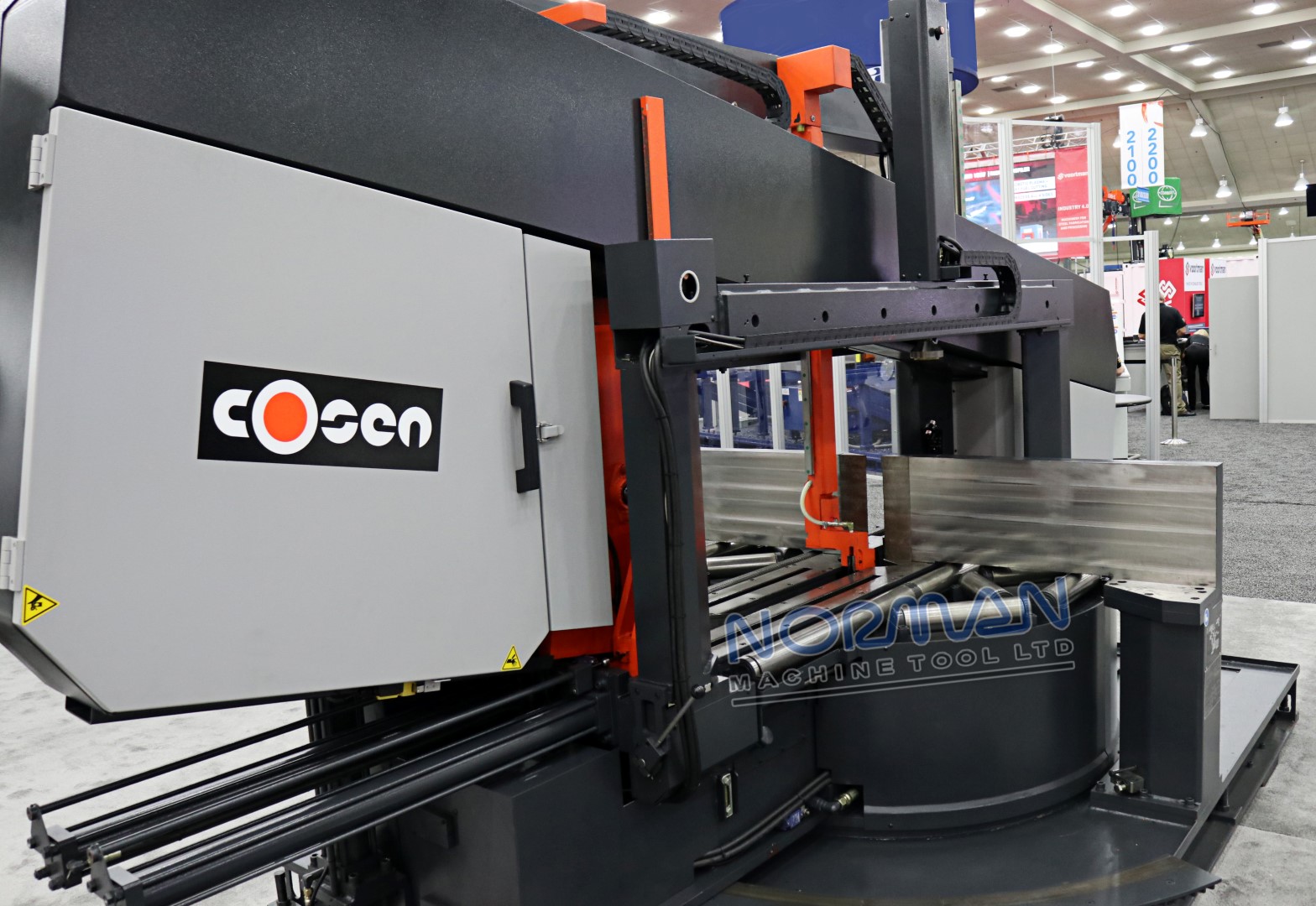

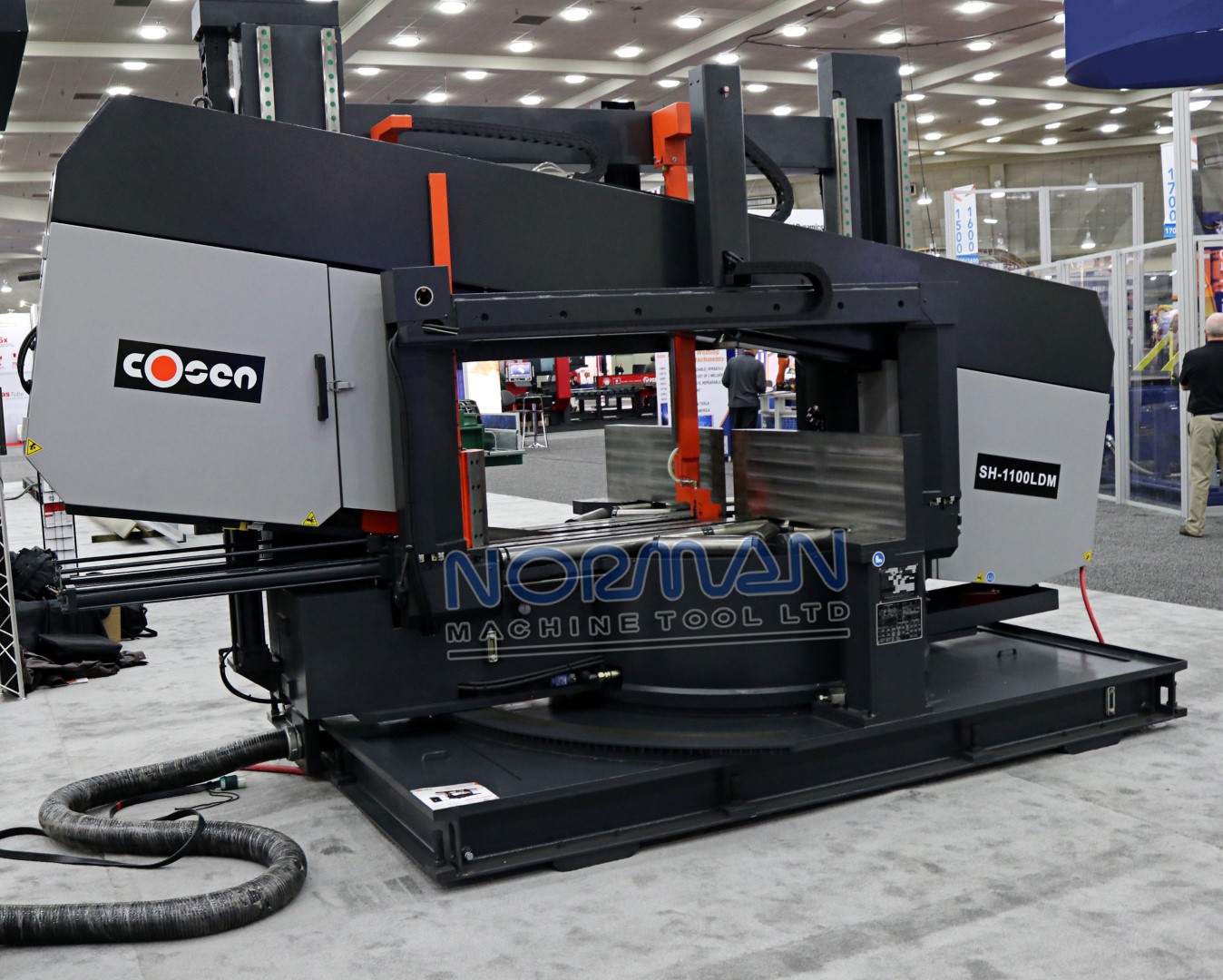

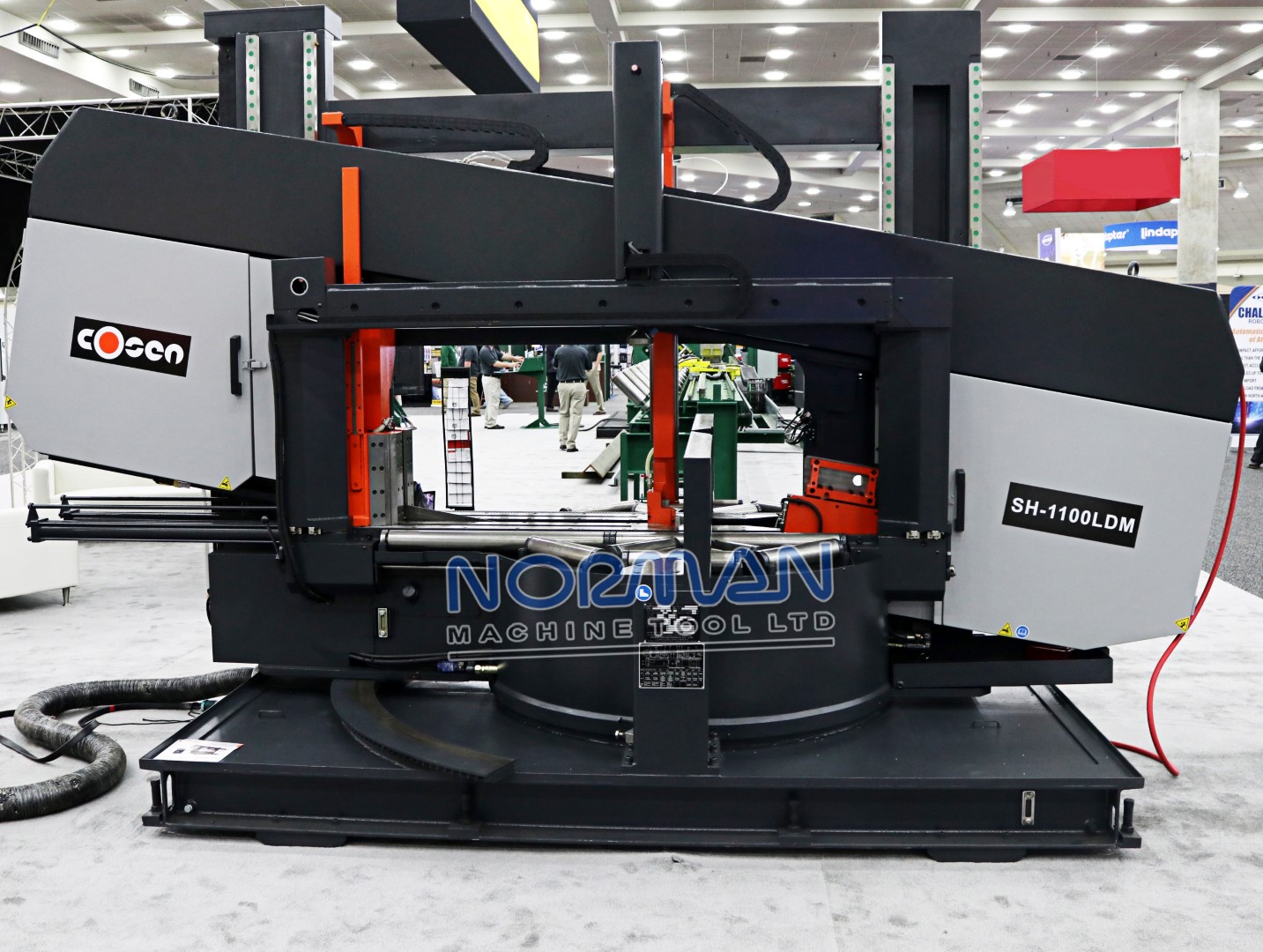

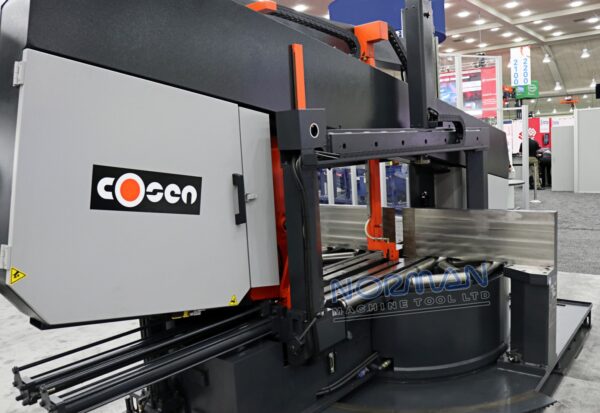

Cosen 26″ Semi-Automatic Dual Mitering Horizontal Column Band Saw, SH-1100LDM
Inventory # 7569
Model: SH-1100LDM
Description:
Rarely do you find a versatile dual mitering horizontal column band saw with such a large capacity. With the SH-1100LDM, you can miter-cut forward and backward up to 60°. The 10° blade cant is designed specifically for cutting structural steel like H-beam, I-beam, channel and profiles at the maximized cutting conditions
Specifications:
Capacities:
Round:
@ 0°: 26″
@ +45°: 26″
@ +60°: 15.7″
Rectangle:
@ 0°: 26″ x 44″
@ 45°: 26″ x 27.6″
@ 60°: 26″ x 15.7″
Saw Blade:
Speed: 79 – 394 FPM
Size: 398″ x 2.6″ x 0.063″
Motor: 15 HP
Workbed Height: 33 1/2″
Standard Features:

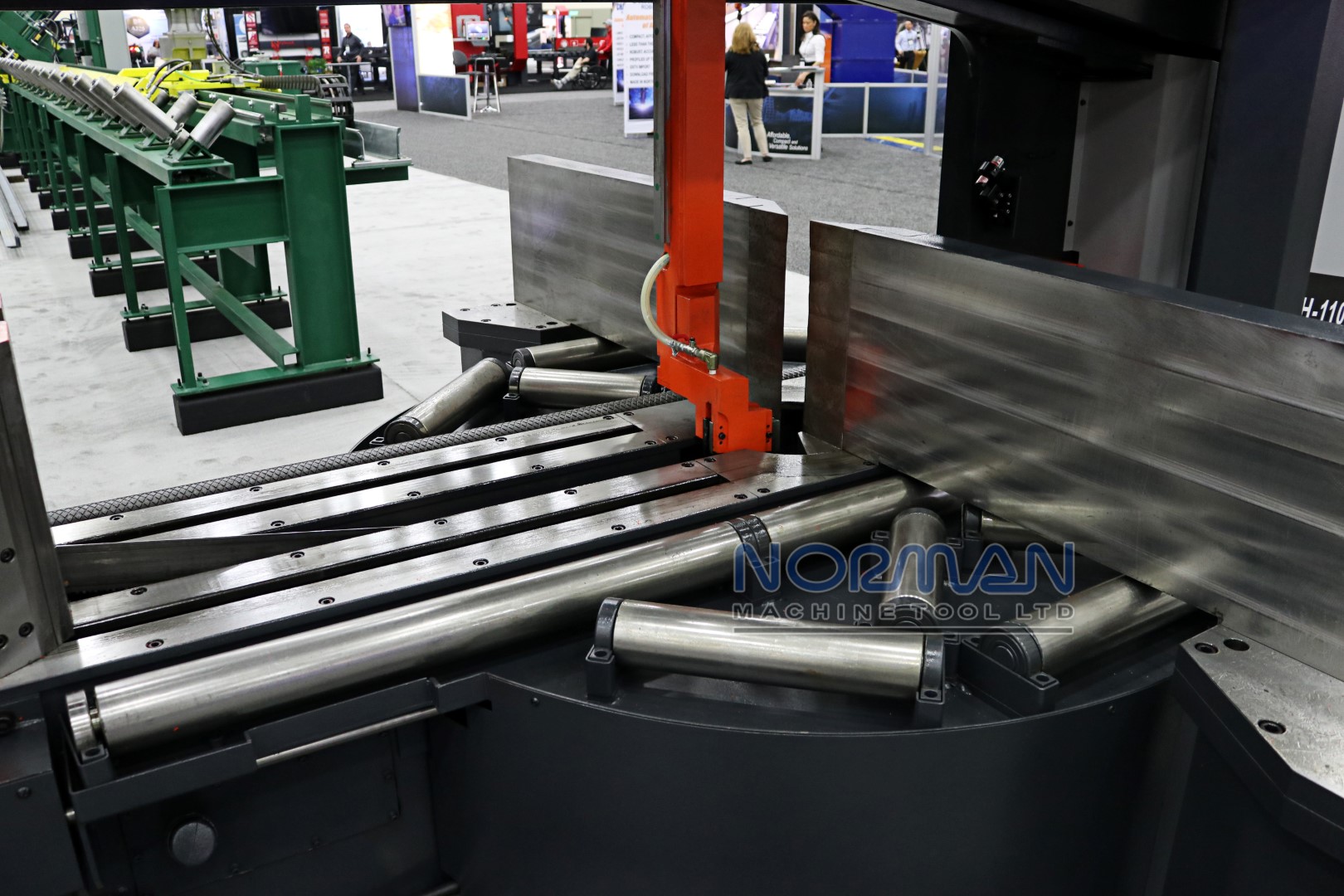

10° blade cant for cutting large structural material

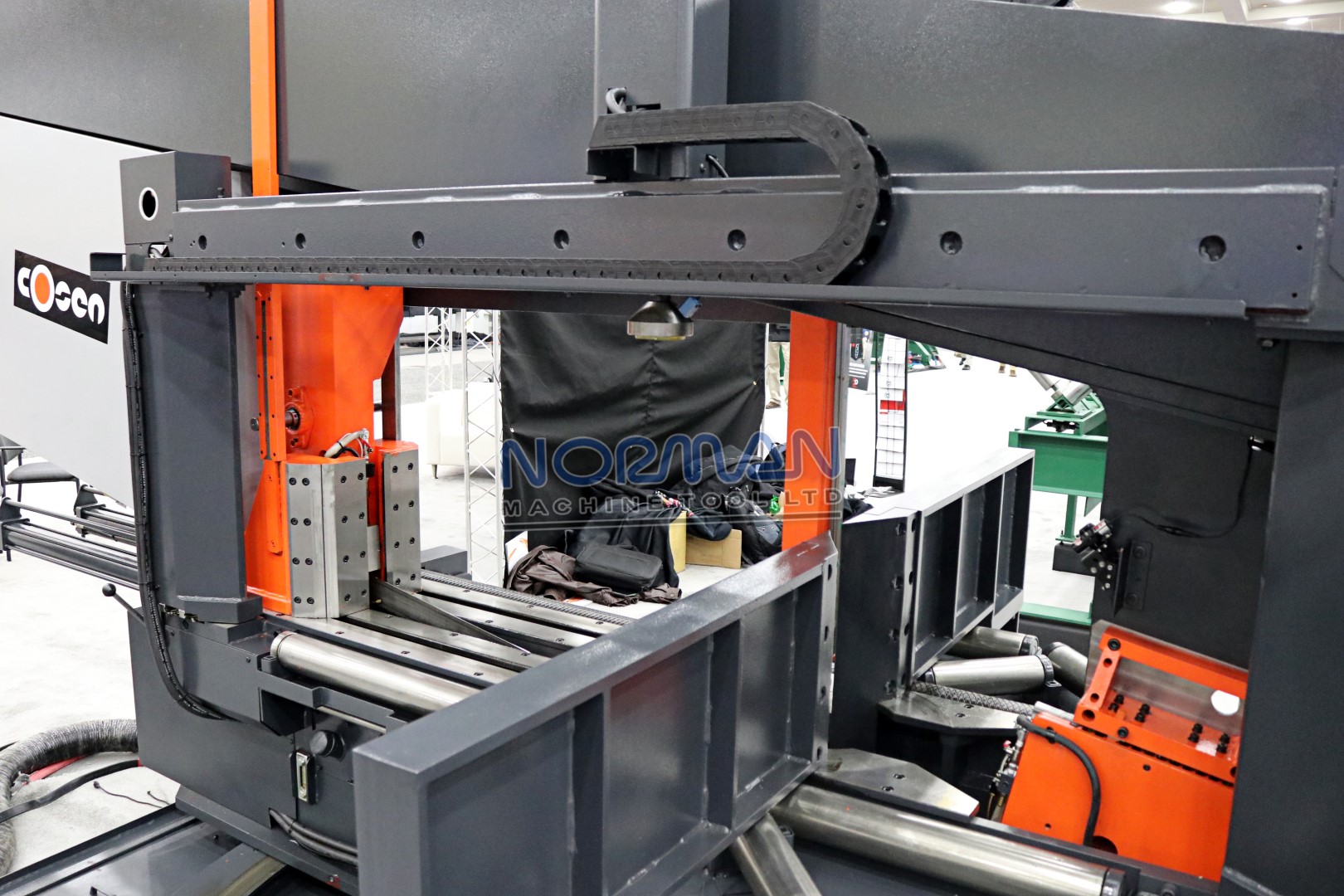

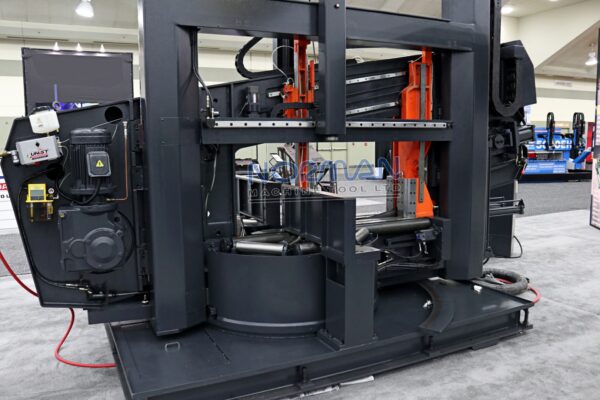

Four large 2″ linear rail column design
Hydraulic power gear driven rotating mechanism
Hydraulic angle lock-down

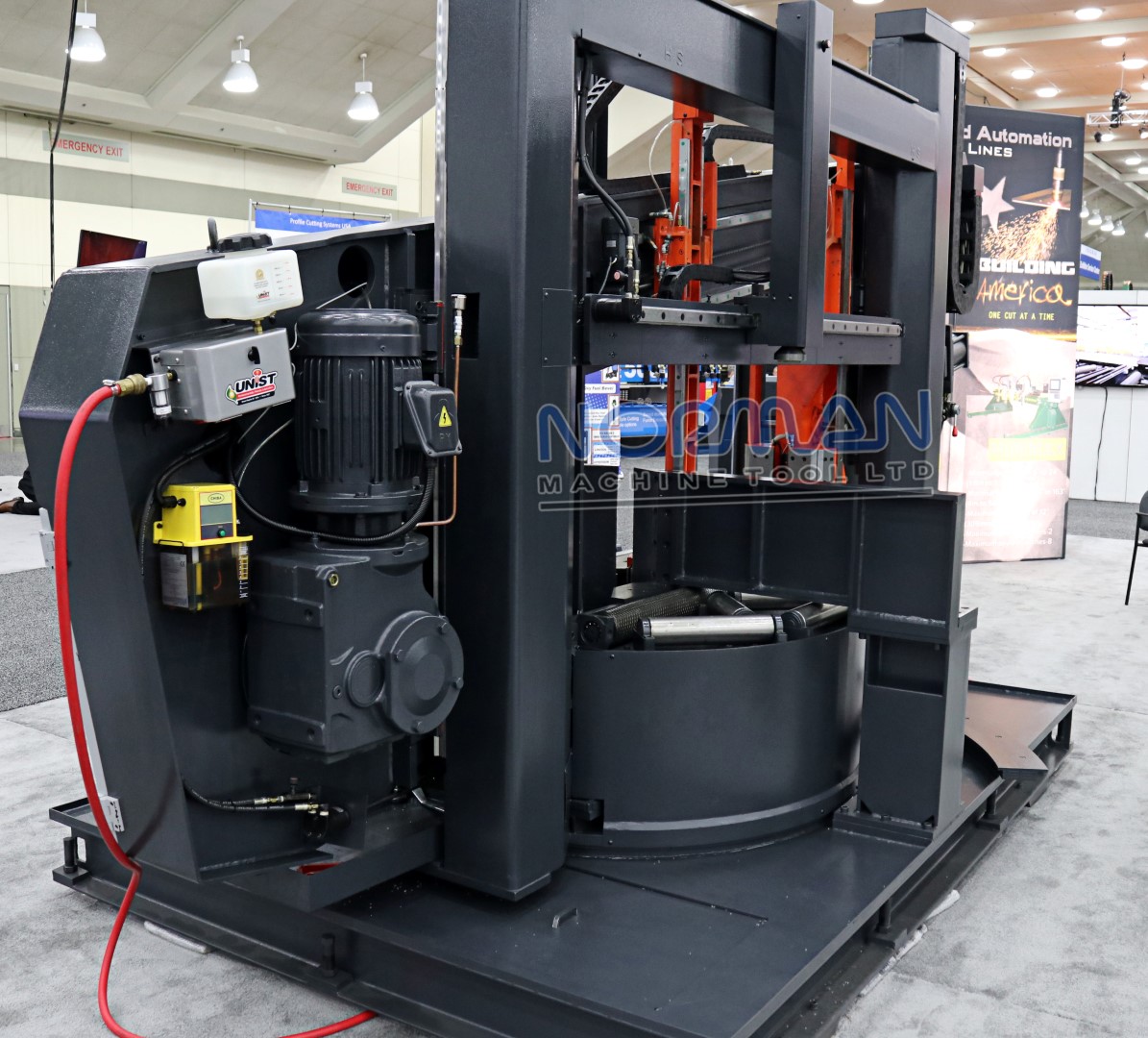

Helical bevel direct drive gear box
Inverter-controlled blade speed

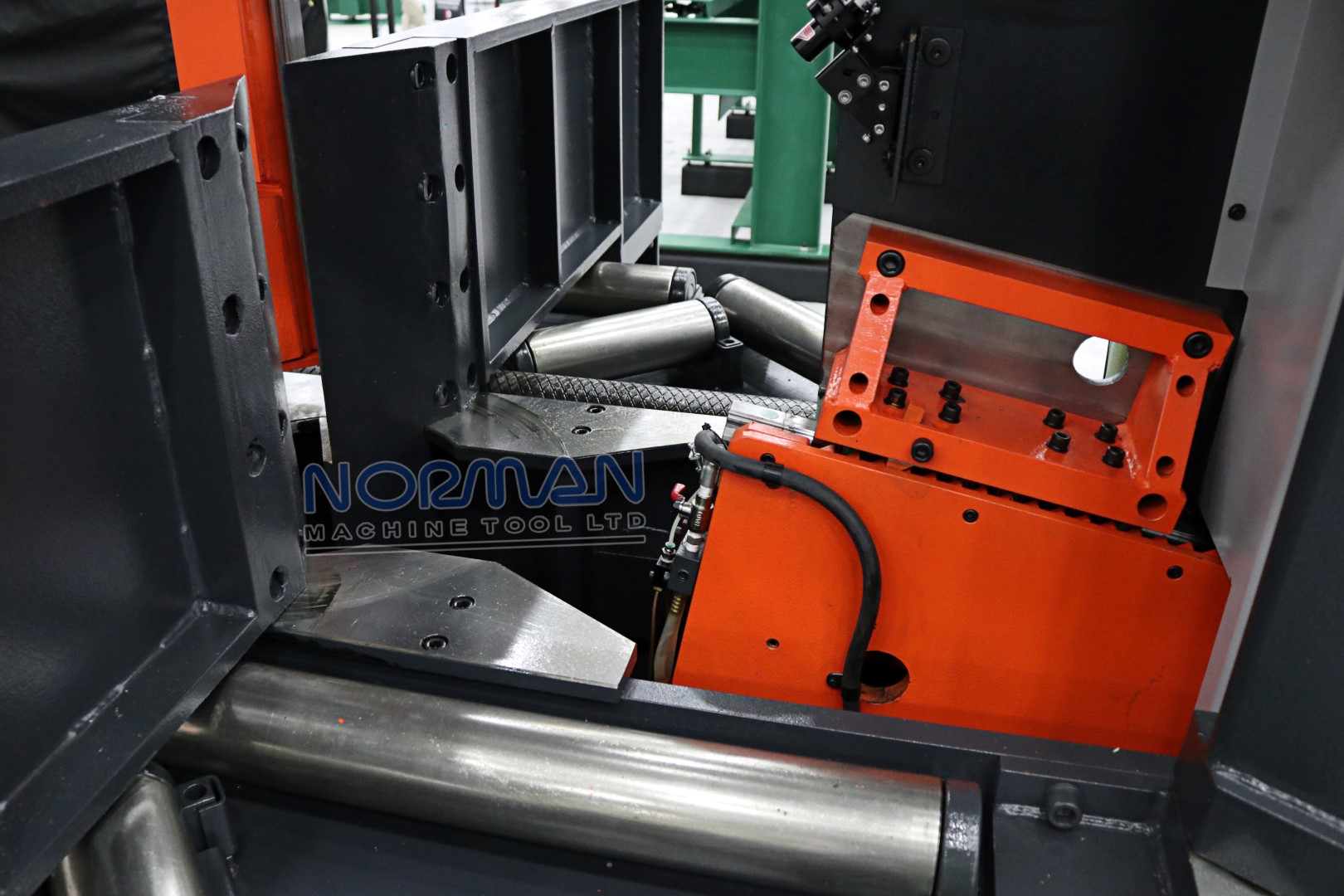

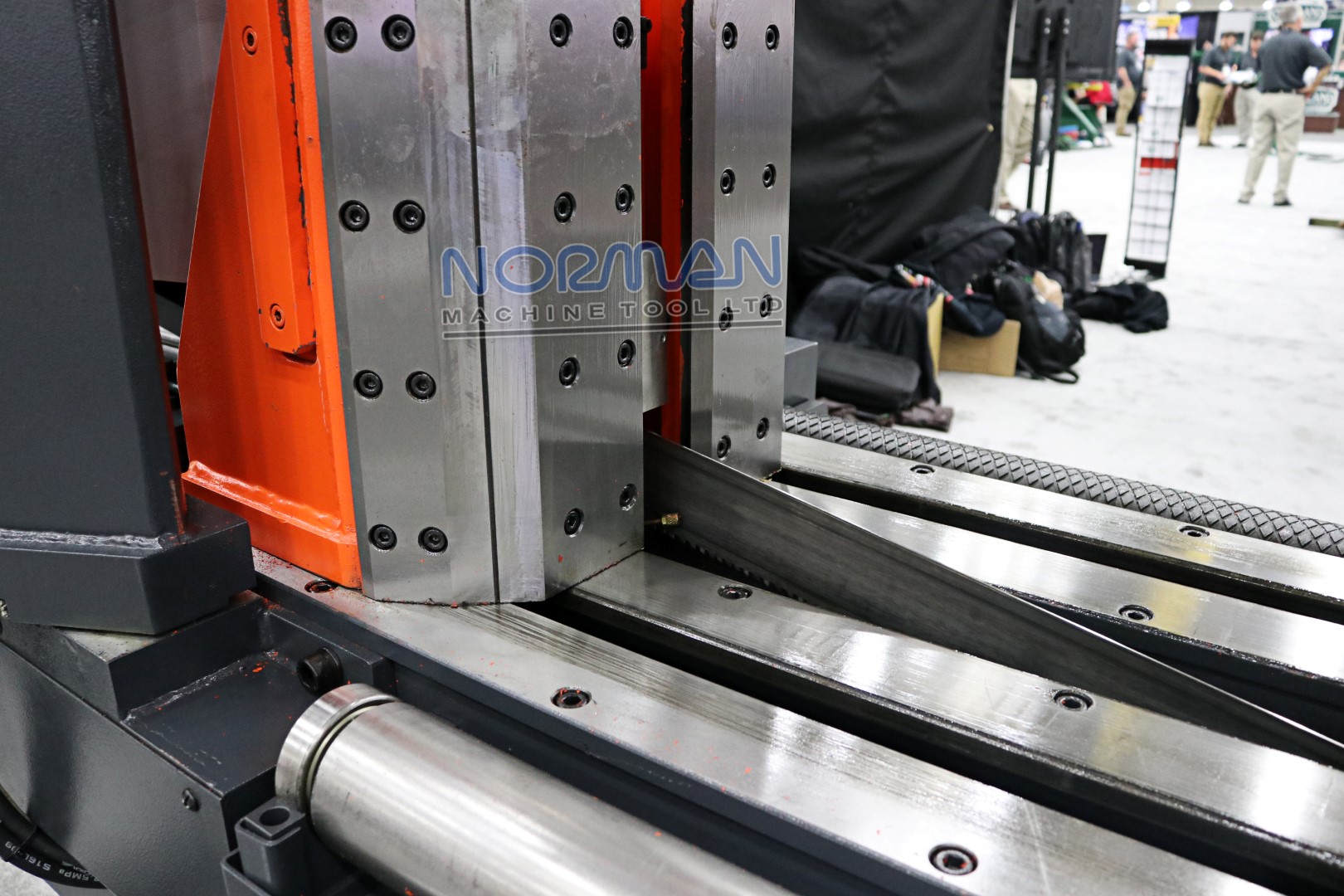

Hydraulic clamping vise

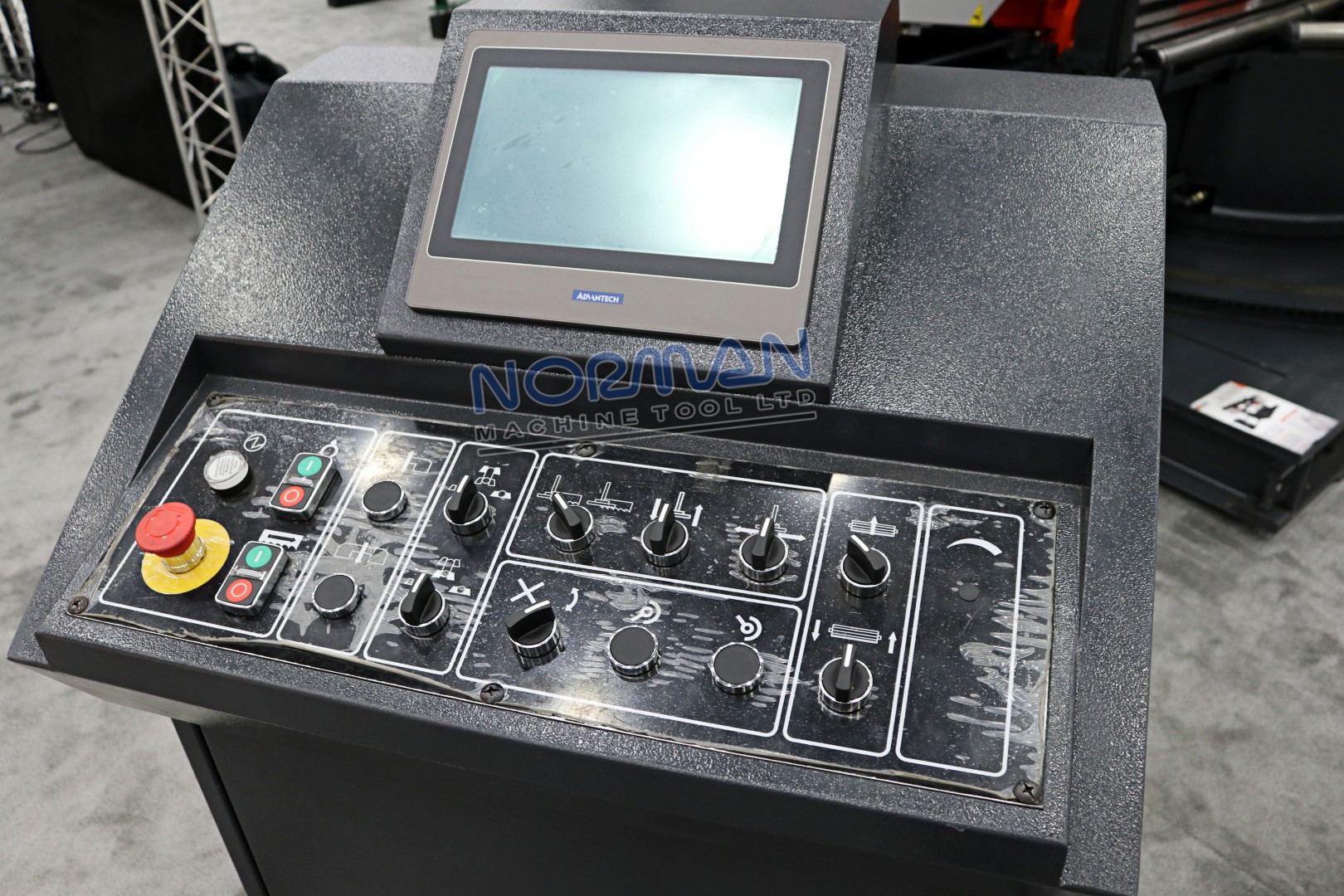

5.7″ HMI touch screen with error code feedback
Precision feed rate and feed pressure valve
Mechanical Specifications:
Dimensions: 191″ x 193″ x 134″ H
Weight: 22,972 lbs.
FOB Factory – Contact us for Pricing and Availability
