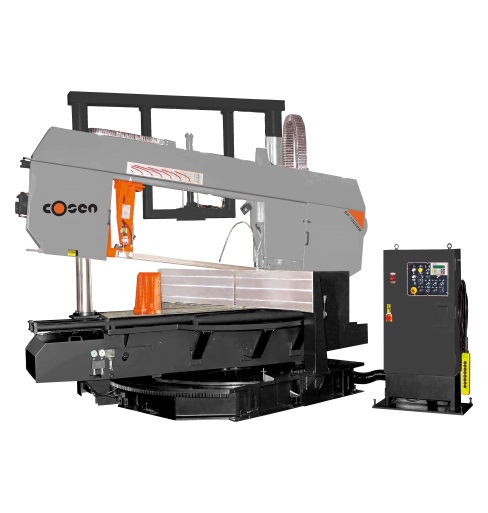

Cosen 26″ Semi-Automatic Dual-Mitering Horizontal Band Saw, SH-1000DM
Inventory # 7561
Model: SH-1000DM
Description:
Cosen employs a rigid, oversized round column design, which keeps the same penetration angle from top to bottom of the material. The 7.5° blade cant design is particularly useful when cutting large l-beams or other structural shapes as it creates an even load per tooth on the blade, thus increasing cutting efficiency and blade life. The twin columns and canted frame make the SH-1000DM the right choice for your structural cutting demands
Specifications:
Capacities:
Round:
@ 0°: 26″
@ ±45°: 23″
@ -60°: 15.7″
Rectangle:
@ 0°: 20 1/2″ x 40″
@ ±45°: 20 1/2″ x 24.4″
@ -60°: 21.3″ x 15.7″
Saw Blade:
Speed: 49 – 295 FPM
Size: 330.7″ x 2.1″ x 0.063″
Blade Motor: 10 HP
Workbed Height: 31.9″
Standard Features:
Versatile double miter-cutting up to 60°
Dual columns insure rigid support throughout the cutting cycle
Gearbox accepts high lateral pressure without creating thermal distortion
Carbide guides
Hydraulically actuated guide arm
Digital precision feed pressure and feed rate valve system
Idle roller supplemental table
Mechanical Specifications:
Dimensions: 148″ x 154″ x 112 1/2″ H
Weight: approx. 12,254 lbs.
FOB Factory – Contact us for Availability
