Description

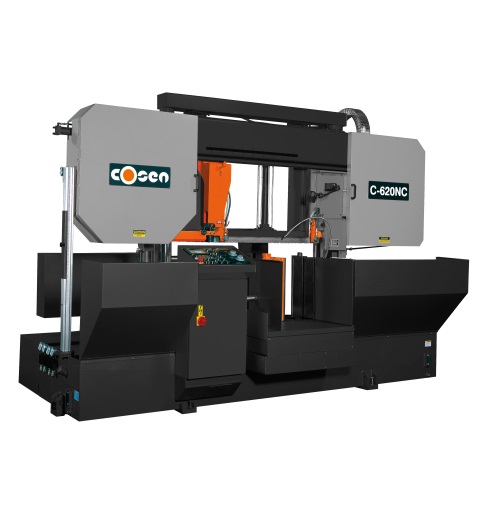

Cosen 24.4″ Fully Programmable Dual Column Heavy Duty Automatic Horizontal Band Saw, C-620NC
Inventory # 7567
Model: C-620NC
Description:
Smart NC-100 (SNC100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC100 controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advance technology, are all words that describe every Cosen SNC-100 Series Sawing Machine
Specifications:
Capacities:
Round: 24.4″
Square: 24.4″
Rectangle: 30″ x 24.4″
Saw Blade:
Speed: 66 – 328 FPM
Size: 283″ x 2.1″ x 0.06″
Blade Motor: 10 HP
Workbed Height: 23.6″
Standard Features:
Dual columns ensure smooth and consistent feed rate throughout cutting cycle
Gantry-type design
Hydraulic shuttle vise assembly
Gearbox designed to accept high lateral pressure (no thermal distortion)
Infinitely variable blade speeds
Carbide blade guides promote straight cuts
Automatic hydraulic blade tensioning device
Integral coolant system
5.7″ touch screen
Dual valve feed system achieves optimal cutting performance
Split vise jaws for a burr-free cut
Ductile cast iron vise
Multiple indexing up to 650″ max. length
Hydraulic feed vise offers two feeding speeds
Mechanical Specifications:
Dimensions: 86.6″ x 145.6″ x 96.4″ H
Weight: approx. 11,880 lbs.
FOB Factory – Contact us for Availability
