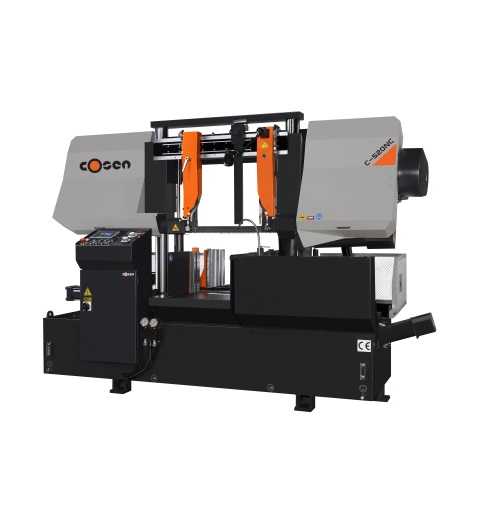

Cosen 20 1/2″ Dual Column Fully Programmable Automatic Horizontal Band Saw, C-520NC
Inventory # 7566
Model: C-520NC
Description:
Smart NC-100 (SNC100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC100 controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advance technology, are all words that describe every Cosen SNC-100 Series Sawing Machine
Specifications:
Capacities:
Round: 20 1/2″
Square: 20 1/2″
Rectangle: 22″ x 20 1/2″
Saw Blade:
Speed: 66 – 328 FPM
Size: 238″ x 2″ x 0.06″
Blade Motor: 10 HP
Workbed Height: 30″
Standard Features:
Back-tilt design puts less stress on the blade, ensuring longer blade life
Hydraulic shuttle vise assembly
Gearbox designed to accept high lateral pressure (no thermal distortion)
Infinitely variable blade speeds
Carbide blade guides
Bearing guides pre-align blade before entering carbide guides
Automatic hydraulic blade tensioning device
Integral coolant system
5.7″ touch screen
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Split vise jaws for burr-free cut
Ductile cast iron vise
Computer controlled multiple indexing up to 999″ max. length
Vertical alignment rollers
Mechanical Specifications:
Dimensions: 125″ x 89″ x 89″ H
Weight: approx. 9,460 lbs.
FOB Factory – Contact us for Availability
