Cosen 16 1/2″ Fully Programmable Automatic Mitering Horizontal Band Saw, C-650MNC

$49,895.00


Shipping: Add to Cart to Calculate

SKU: C-650MNC

Inventory #: 7562

Categories: ,

Condition:

Type:

Brand:

Description

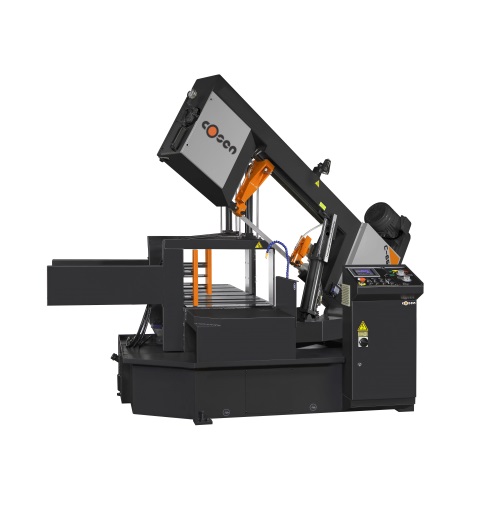

Cosen 16 1/2″ Fully Programmable Automatic Mitering Horizontal Band Saw, C-650MNC

Inventory # 7562

Model: C-650MNC

Description:

Smart NC-100 (SNC100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC100 controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable and advanced technology are all words that describe Cosen’s C-650MNC high production machine which incorporates a massive base, sturdy frame and extremely heavy duty gearbox

Specifications:

Capacities:

Round:

@ 0°: 16 1/2″

@ +45°: 16″

@ +60°: 10″

Rectangle:

@ 0°: 15″ x 25.6″

@ +45°: 16″ x 16″

@ +60°: 16″ x 10″

Saw Blade:

Speed: 66 – 330 FPM

Size: 209″ x 1.6″ x 0.05″

Blade Motor: 7.5 HP

Automatic Indexing Length: 31 1/2″ – 256″

Workbed Height: 29 1/2″

Standard Features:

Swivel saw head allows cuts at any angle from 0° to 60°

Precision pivot system

Hydraulic shuttle vise assembly

24 1/2″ solid discharge table with coolant return

Variable speed blade drive equipped with best worm gear speed reducer

Carbide blade guides

Automatic hydraulic blade tensioning device

Integral coolant system

Smart NC-100 technology

5.7″ touch screen

Precision feed pressure and feed rate dual valve system for optimal cutting performance

Automatic work height sensor and air gap eliminator

Full stroke machine vises

Ductile cast iron vises

Multiple horizontal rollers

Mechanical Specifications:

Dimensions: 141.7″ x 114″ x 98.4″ H

Weight: approx. 6,600 lbs.

FOB Factory – Contact us for Availability

Additional information

Weight 6800 lbs
