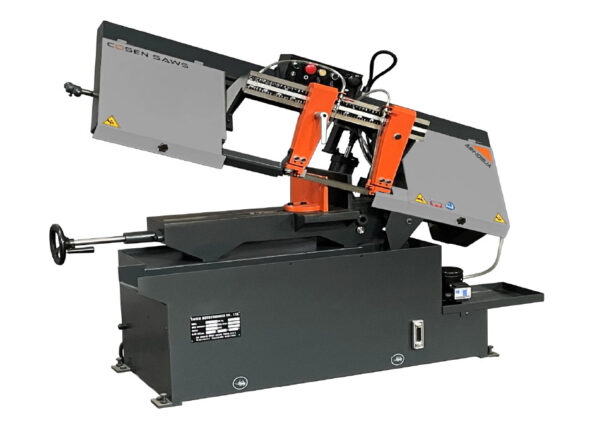

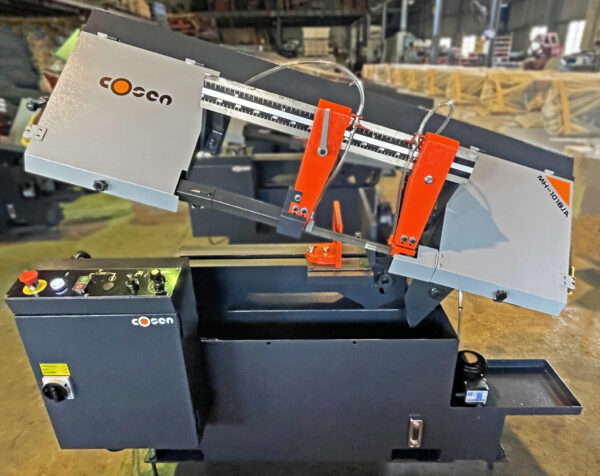

Cosen 10″ Manual Horizontal Scissor Style Band Saw, MH-1018JA
Inventory # 9455
Model: MH-1018JA
Description:
The MH-1018JA comes equipped with a manual vise and adjustable hydraulic down feed. It is an ideal band saw for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and for limited run production work. It is a great machine for cutting square, round, and rectangular solids, as well as tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance
Specifications:
Max. Cutting Capacity:
Round: 10″
Square: 9.1″ x 9.1″
Rectangle:
@ 90°: 9″ x 16 1/2″
@ 45°: 9″ x 10″
Work Bed Height: 25.6″
Speed: 75, 121, 190, 305 FPM
Motor: 2 HP / 230v / 3ph OR 460v / 3ph (Please Specify Desired Voltage at Time of Order – 460v is an Additional Charge)
Standard Features:
Hydraulic Cylinder Plus Precision Ground Hinge Support
Step Pulley Drive
Adjustable Flood Coolant System
Hardened Worm Gear for Durability
Carbide Blade Guides and Bearing Provides Additional Blade Support
Rigid Cast-Iron Guide Arms
Cast-Iron Vise
Vises Can Rotate to Allow a 45° Cut
Blade Cleaning Chip Brush
Adjustable Down-Feed Control
Equipment Included:
Adjustable Material Stop
Bi-Metal Saw Blade
Operation & Parts Manual
Mechanical Specifications:
Dimensions: 68″ x 29″ x 41″ H
Weight: approx. 950 lbs.
FOB Factory – Contact us for Availability
Optional Accessories:
5′ Stock Roller Conveyor
10′ Stock Roller Conveyor
Voltage Change to 460v/3ph
