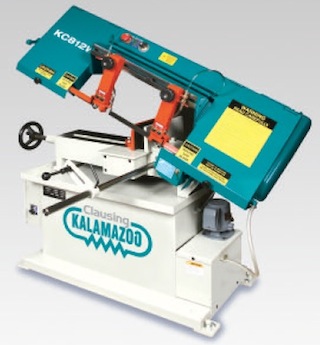

Clausing Kalamazoo 8″ x 12″ Manual Horizontal Band Saw, KC812W
Inventory # 7539
Model: KC812W
Specifications:
Cutting Capacity:
@ 90°:
Round: 8″
Square: 7″
Rectangular: 7″ x 14″
@ 45°:
Round: 7 1/2″
Square: 6″
Rectangular: 6″ x 9″
Bed Height: 24.8″
Blade: 1″ x .035″ x 8′ – 11′
Blade Speeds: 59, 96, 155, 260 FPM
Band Wheel Diameter: 11 1/2″ Flanged, Cast Iron
Motor: 1 HP / 110v, 220v / 1ph
Standard Features:
1 HP drive motor, heavy-duty reducer and variable step drive assembly
4-speed step pulley with worm gear speed reducer, worm shaft is hardened and ground
Heavy-duty hydraulic cylinder with precision ground hinge support
Pan shaped base with built-in coolant and hydraulic system
Carbide blade guides with roller bearings
Two additional bearings to support blade from the top
Integral coolant system
Blade brush
Down feed rate and cutting pressure control via hydraulic down feed valve
Simplified control switches mounted on saw head
Cast iron 0 – 45° quick set up vise
Secure clamping via dependable manual lead screw system
Anti-slip hand wheel
Easy blade change with front access at waist level
Bi-metal saw blade
Operation and parts manual
Two year limited warranty
Mechanical Specifications:
Shipping Dimensions: 58″ x 30″ x 48″ H
Shipping Weight: approx. 580 lbs.
Contact us for special pricing and availability
FOB Factory
