Description

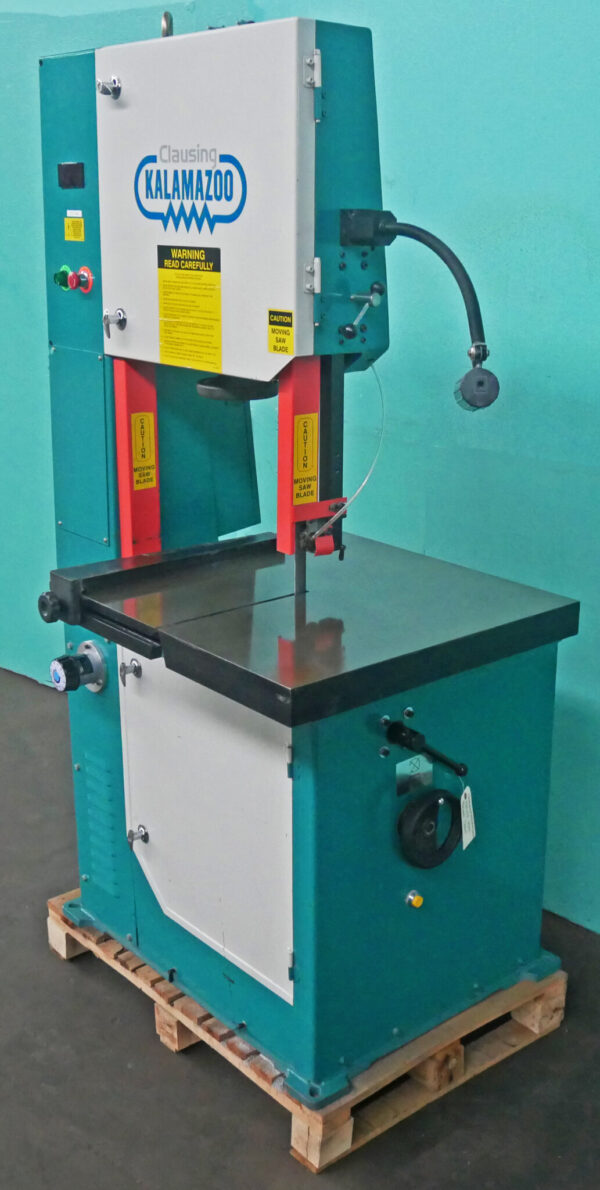

Clausing Kalamazoo 20″ Vertical Band Saw with Fixed Tilting Table, V2012F
Inventory # 9656-P
Model: V2012F
S/N: M1750234
Specifications:
Throat: 20″
Work Height: 12 3/4″
Blade Length: 160 1/2″ – 161.2″
Blade Width: 1/8″ – 1″
Blade Speed: 50 – 5,200 FPM
Band Wheel Diameter: 20.38″ (Two-Wheel)
Floor to Worktable Top: 40 1/8″
Table Tilt: 45° R, 15° L
Motor: 3 HP / 220-230v / 3ph
Features & Equipment Included:
Rip Fence
Magnetic starter with 110v control circuit and overload protection
3 HP TEFC motor
Dual range transmission
26 3/4″ x 29″ heavy-duty cast iron table with two-way tilt & solid table surface
Bonded rubber band wheels
Work light, 110v
Built-in air chip blower
Blade speed indicator
Locking band wheel doors
Mechanical Specifications:
Dimensions: 51″ x 44″ x 81″ H
Weight: approx. 1,400 lbs.
New Replacement Cost: $11,445.00
FOB Our Baltimore, MD Warehouse
