Description

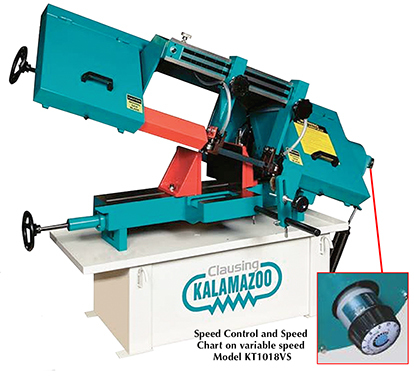

Clausing Kalamazoo 10″ Horizontal Wet-Cut Band Saw, KT1018VS
Inventory # 7536
Model: KT1018VS
Specifications:
Cutting Capacity:
@ 90°:
Round: 10″
Rectangular: 18″ x 6″ or 10″ x 16″
@ 45°:
Round: 8″
Rectangular: 8″ x 6″; 4″ x 9″; 3″ x 10″
Bed Height: 21.8″
Blade Size: 1″ x .035″ x 11′ 4 1/2″
Band Wheel Diameter: 15.4″ Flanged, Cast Iron
Blade Speeds: 69 – 321 FPM (Variable)
Motor: 2 HP / 110v, 220v / 1ph OR 230v, 460v / 3ph (Please Specify Desired Motor at Time of Order)
Standard Features:
2 HP Drive Motor with Magnetic Started and Overload Protection
Quick Positioning 45° Vise
Cast Iron Bed
Totally Enclosed Transmission
Quick and Simple Speed Change
1″ Wide Blade
Blade Cleaning Brush
Solid Carbide Blade Guides with Rollers
Recirculating coolant system with application through both guides
Stock stop
Easily adjusted head feed operated by needle valve
Two year limited warranty
Mechanical Specifications:
Shipping Dimensions: 80 1/4″ x 33 1/8″ x 45 1/4″ H
Shipping Weight: approx. 900 lbs.
Contact us for special pricing and availability
FOB Factory
