Description

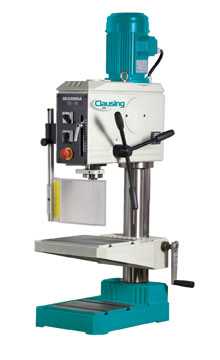

Clausing Ibarmia 19.7″ Geared-Drive Round-Column Tapping Drill, TM25RS
Inventory # 7545
Model: TM25RS
Specifications:
Drilling Capacity in Steel: 1″ Max.
Drilling Capacity in Cast Iron: 1.18″ Max.
Tapping Capacity in Steel: .71″ Max.
Tapping Capacity in Cast Iron: .87″ Max.
Spindle Taper: 3 MT
Quill Diameter: 2.44″
Spindle Travel: 4.72″
Motor: 1 HP or 1.5 HP / 230v or 460v / 3ph
Number of Speeds: 8
Height: 48.4″
Base: 22″ x 15″
Base to Spindle: 20.9″
Spindle Center to Column: 9.84″
Spindle to Table: 1.18″ Min. – 12.6″ Max.
Worktable: 10.6″ x 11.8″
Base Height: 3.1″
Column Diameter: 3.94″
Floor to Top of Base: 34.6″
Cabinet Height: 31.5″
Standard Features:
Automatic Feed Reversing System for Tapping
Depth Scale and Adjustable Depth Stop
Thermomagnetic Switch
Spindle Reversing Switch
Automatic Tool Ejector
Emergency Stop
High/Low Speed Range Selector
Drill Guard with Microswitch
Mechanical Specifications:
Shipping Dimensions: 20″ x 32″ x 55″ H
Shipping Weight: approx. 419 lbs.
Contact us for special pricing and availability
FOB Factory
