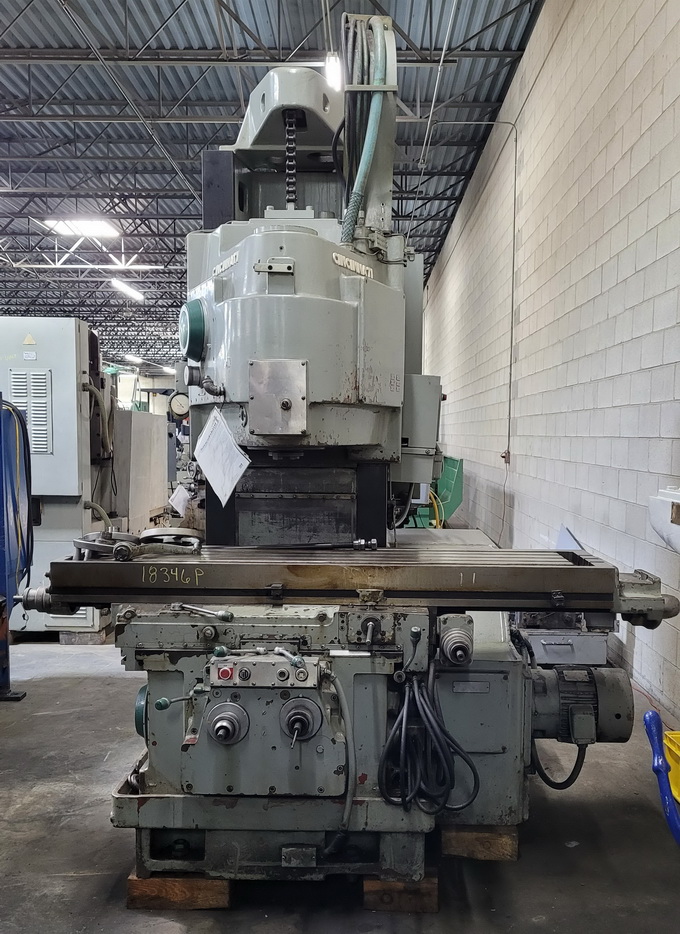

Cincinnati ‘VerciPower’ 18″ x 72″ Vertical Mill, 330-18
Inventory # 9840-C
Model: 330-18
S/N: 311031 V5W-3 – Rebuilt in 2000 by American Machine Tool Repair & Rebuilding Co. in Randolph, NJ
Specifications:
Table Size: 18″ x 72″ with (3) 13/16″ T-Slots on 3 1/4″ Centers
Spindle Taper: #50 NST in Horizontal Spindle & Vertical Head
Horizontal Spindle Speeds: (24) 16 – 1,600 RPM
Power Feeds: 3/8 – 90 IPM
Rapid Traverse: up to 150 IPM
Table Travel, Longitudinal: 34″
Table Travel, Cross: 16″
Vertical Head Travel: 24″
Motor: 30 HP / 230v, 460v / 3ph
Equipment Included:
Hard Replaceable Saddle and Vertical Ways in Good Condition
Automatic Table Cycle for Longitudinal Axis
Front and Side Operation Controls
Rapid Traverse to All Axes
Table Climb Mill Feature
Automatic and Continuous Cycles for Spindle Control
(2) Adjustable Traverse Stops on All Axes
Power Feeds and Speed Selector
Central Way Lubrication System
Mechanical Specifications:
Dimensions: 94″ x 101″ x 121″ H
Weight: approx. 21,400 lbs.
FOB York, PA Warehouse
Please Note: This Machine is Being Sold on Consignment and is Being Sold As-Is, As-Inspected, with No Warranty and No Return Privilege
