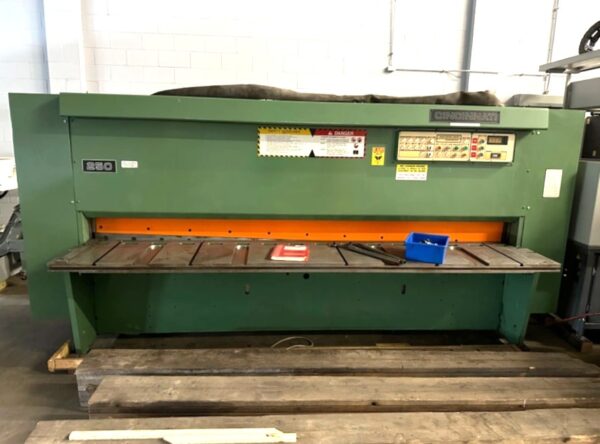

Cincinnati 10′ x 1/4″ Hydraulic Power Squaring Shear, Model 250
Inventory # 9841-C
Model: 250
Specifications:
Capacity: 1/4″ Mild Steel
Max. Length: 122 3/4″
Hydraulic Hold Downs: 11
Back Gauge Range: 48″
Strokes per Minute: 32 – 70 SPM

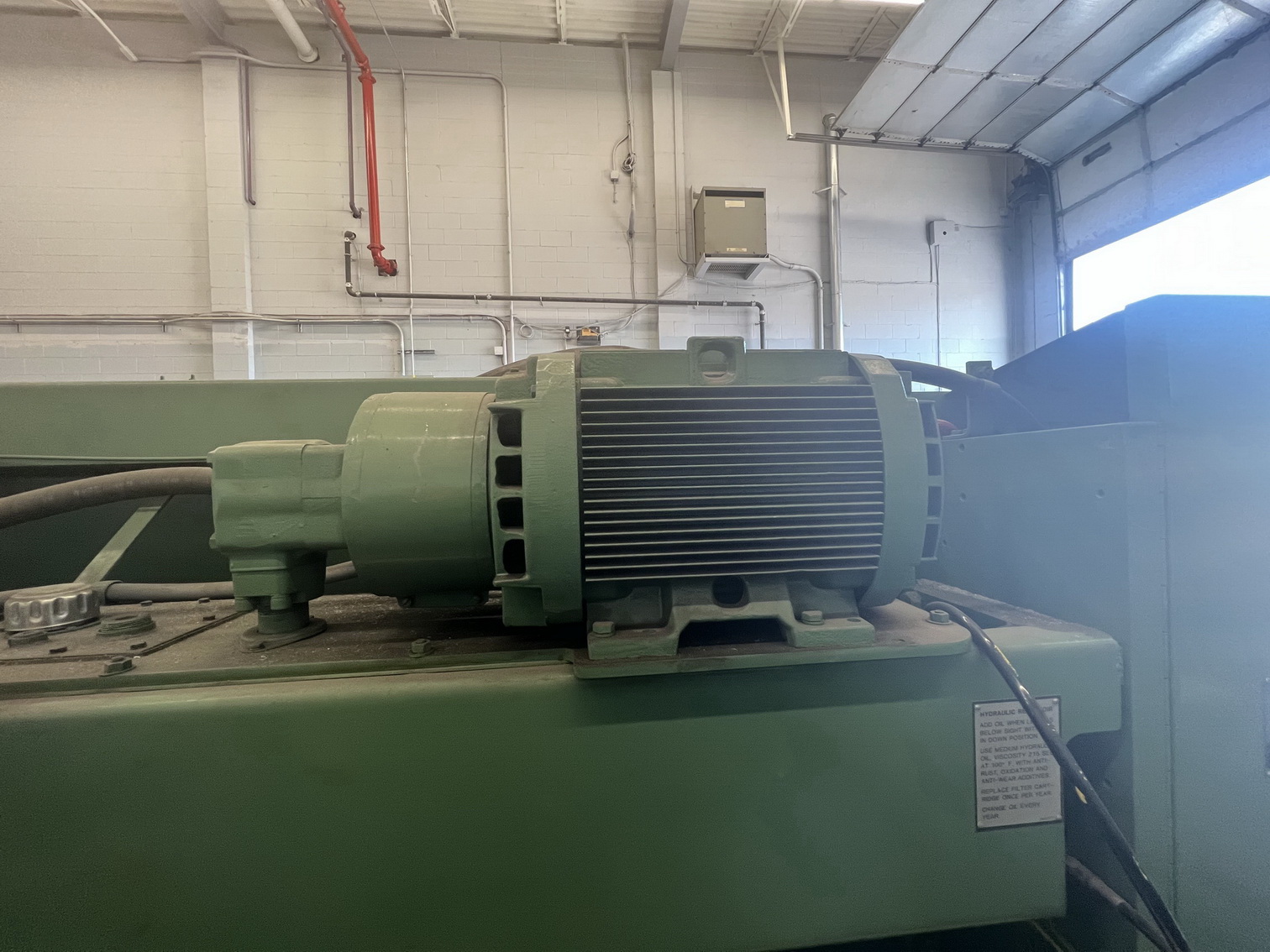

Motor: 25 HP / 460v / 3ph
Equipment Included:
Adjustable Stroke, Rake, and Blade Clearance
Pneumatic Rear Sheet Supports
10′ Squaring Arm
(2) Front Support Arms

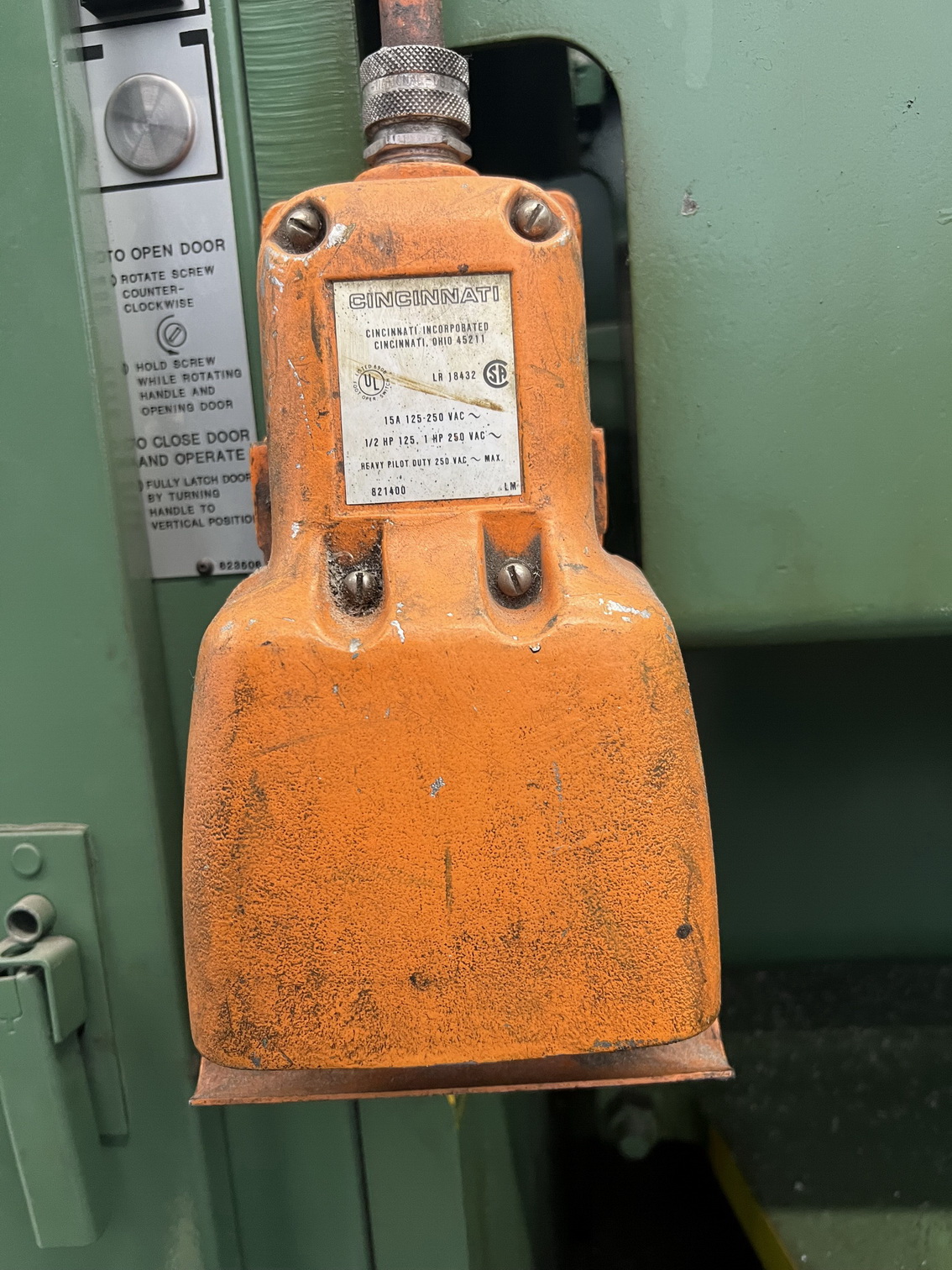

Electric Foot Switch
Back Off Cylinder on Back Gauge (Prevents Material Binding)
Hold Down Guards
Mechanical Specifications:
Dimensions: 171″ x 72″ x 73″ H
Weight: approx. 17,000 lbs.
FOB Worcester, MA Warehouse
Please Note: This Machine is Being Sold on Consignment and is Being Sold As-Is, As-Inspected, with No Warranty and No Return Privilege
