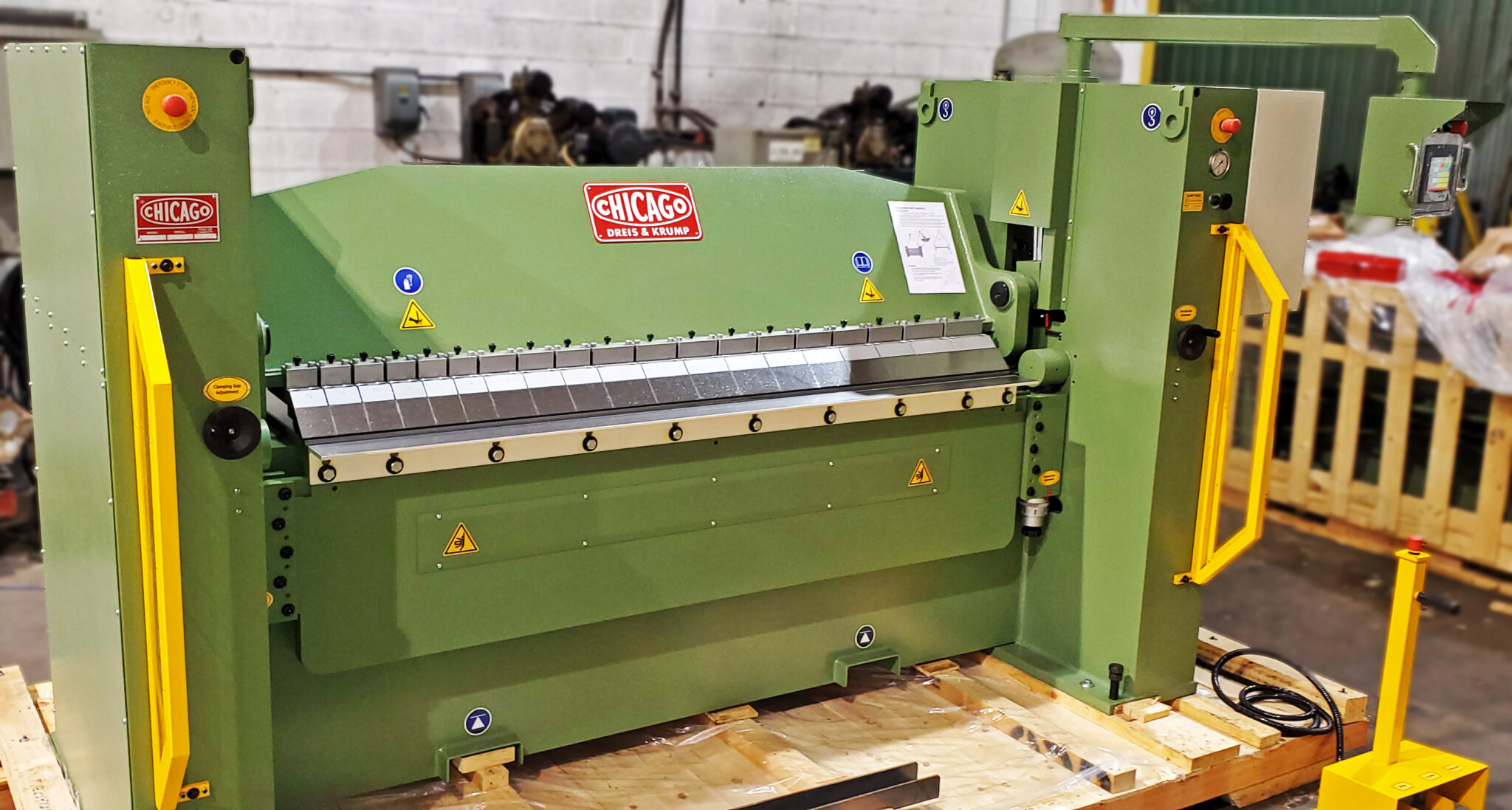

Chicago Dreis & Krump 96″ x 1/4″ Heavy Duty Hydraulic Leaf Box and Pan Brake, HBP 8250-6
Inventory # 9333
Model: HBP 8250-6
Specifications:
Bending Length: 96″
Capacity:
Mild Steel: 1/4″
Stainless Steel: 3/16″
Min. Reverse Bend: 1 3/8″
Box Depth: 6″
Motor: 10 HP
Standard Features:
24″ Rear-Operated Manual Back Gauge
Pendant or Electric Foot Switch Operation
Hydraulic Clamping with Adjustable Clamping Pressure
Program and Store Bend Angle
Adjustable Top Leaf Open Height
Adjustable Bending Leaf to Match Material Thickness
Mechanical Specifications:
Dimensions: 156″ x 72″ x 72″ H
Weight: approx. 13,600 lbs.
FOB Factory – Contact us for Availability
Optional Equipment:
Schneider Single Axis NC Control with Inch/MM Readout
