Description

Chevalier FSG-2A1224H 12” x 24”; High Precision 2-Axis Semi-Automatic Surface Grinder

Inventory # 7174-P

Model: FSG-2A1224H

S/n: P2883001 “1999” – Sold As-Is, As-Inspected with No Return and No Warranty Privilege

Specifications:

Table size: 12” x 24”

Max. Distance from Table to Spindle: 24 3/4″

Magnetic Chuck Size: 24″ x 12″

Longitudinal Movement:

Max. Travel (hydraulic): 25 5/8″

Max. Travel (manual): 27 1/2″

Table Speed (infinite variable): 16 – 82 fpm

Cross Transverse Travel:

Rapid travel: approx. 56 ipm

Automatic transverse increment: 0.04 – 0.5″

Max. Automatic transverse travel: 14 1/8″

Max. Manual transverse travel: 14 1/2″

Handwheel per revolution: 0.2″

Handwheel per graduation: 0.001″

Wheelhead Vertical Infeed:

Automatic infeed: 0.0001″ – 0.0002″

Handwheel per revolution: 0.1″

Handwheel per graduation: 0.0005″

Rapid Travel: approx. 13 ipm

Micro feed per revolution: 0.01″

Micro feed per graduation: 0.0001″

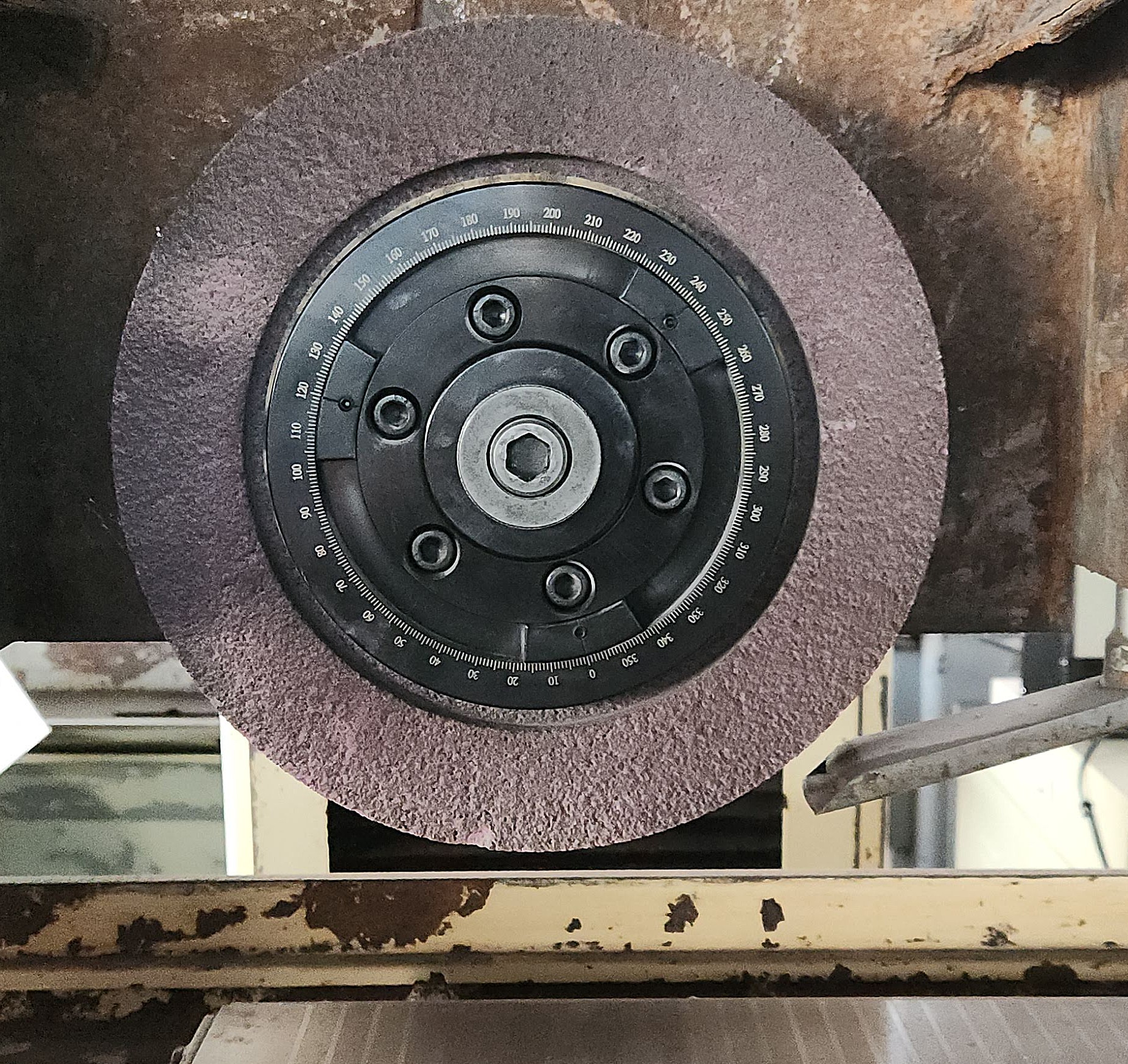

Grinding Wheel: 14″ Diameter x 2″ Width x 5″ Bore

Grinding Spindle: 5 hp, 1,750 rpm @ 60 hz, 1,450 rpm @ 50 hz

Hydraulic Drive: 2 hp

Motor: 10 hp / 230 / 460 v / 3 ph (Pre-Wired: 230 v)

Standard Features:

24″ x 12″ Chevalier Magnetic Chuck

Automatic Surface Grinding Cycle

Automatic Plunge Grinding Cycle

High Precision Cartridge Type Spindle

Table Reversing Mechanism

Longitudinal Slideways

Durable Slideways

Hydraulic and Coolant Tank

Machine Levelers

Mechanical Specifications:

Overall Dimensions: 78″ L x 73″ W x 84″ H

Overall Weight: approx. 4,630 lbs.

New Replacement Cost: $28,500.00 (3-Axis Model)

FOB Our Baltimore, MD Warehouse

Please Note: This Machine is Being Sold As-Is, As-Inspected with No Return and No Warranty Privilege
