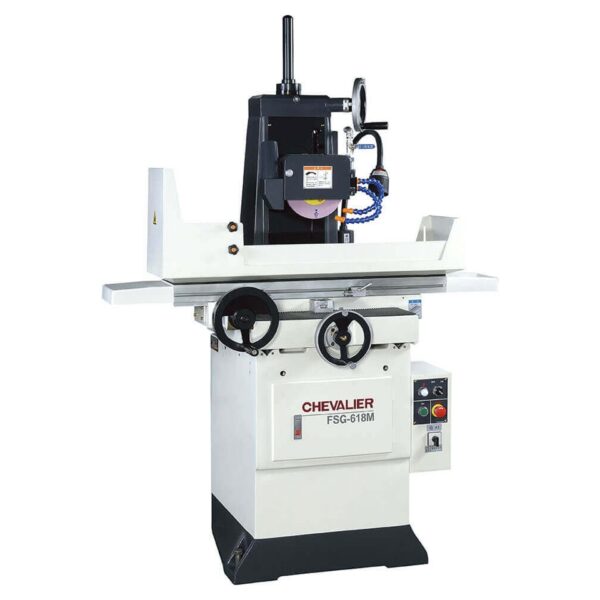

Chevalier 6″ x 18″ 3-Axis Manual Surface Grinder, FSG-618M
Inventory # 7640
Model: FSG-618M
Specifications:
Max. Grinding Length: 18″
Max. Grinding Width: 6″
Max. Table Travel: 19″ Longitudinal, 7″ Crossfeed
Max. Distance Between Spindle Center to Table Surface: 18″
Suitable Magnetic Chuck Size: 6″ x 18″
Downfeed Handwheel: Per Graduation 0.0001″, Per Revolution 0.050″
Crossfeed Handwheel: Per Gradutaiton 0.0005″, Per Revolution 0.100″
Spindle and Motor: 2 HP / 230v / 3ph / 3,450 RPM
Grinding Wheel: 8″ Diameter x 1/2″ Width x 1 1/4″ Hole Size
Standard Features:
2 HP low vibration spindle motor
Spindle run-out shall be within 0.000060″
High precision cartridge-type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding
Hardened and ground table guideways with steel balls
Patented, continuous loop, steel core reinforced, cog timing belt system for smooth and trouble-free table drive system
Flatness is guaranteed to be within 0.0001″ for the entire working surface
Table handwheel can be indexed for ease of operation
Saddle travels on hand scraped double V guideways, laminated with Turcite-B
Automatic continuous lube system with oil flow indicator on column
Meehanite castings
Standard Accessories:
LED machine lamp
Diamond dresser and diamond (table type)
Automatic lubricator
One grinding wheel and hub
Leveling screw set and pads
Wheel extracting screw and nuts
Balancing arbor
Exhaust hood
Toolbox and tools
Operating manual and parts list
Mechanical Specifications:
Shipping Dimensions: 41″ x 47″ x 76″ H
Weight: approx. 1,498 lbs.
Contact us for special pricing and availability
FOB Factory
