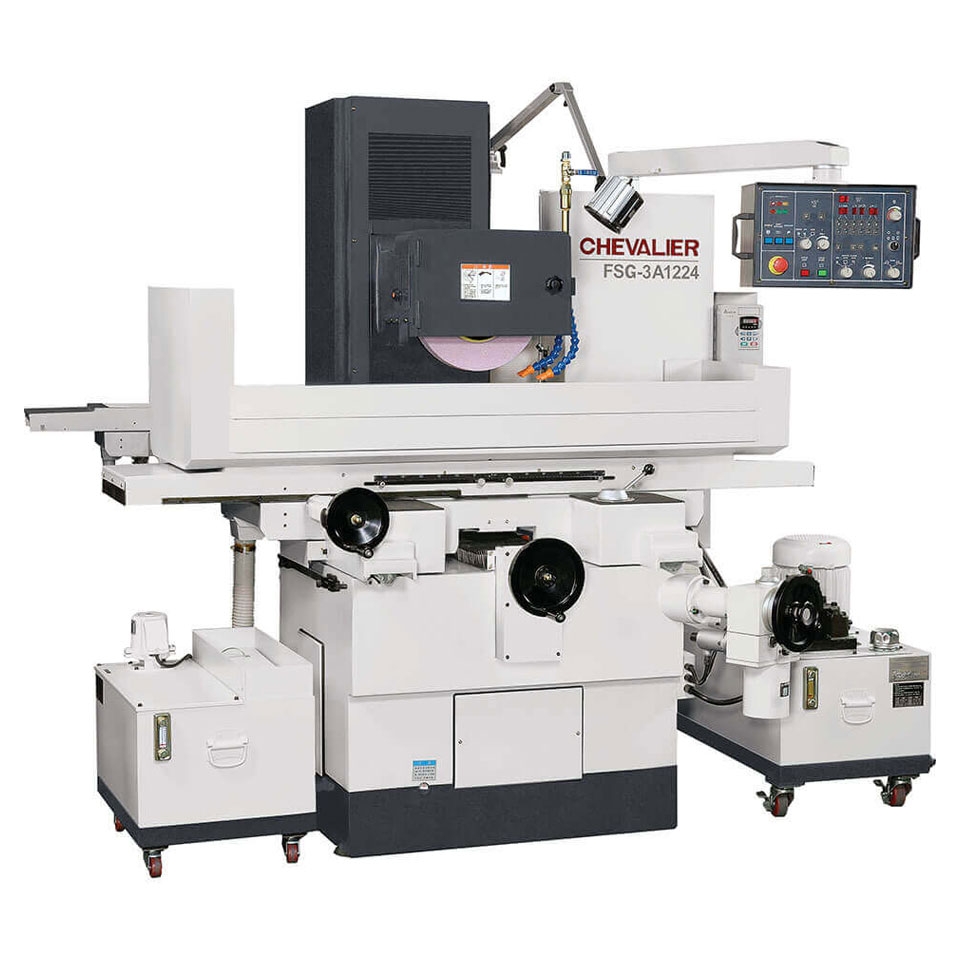

Chevalier 12″ x 24″ 3-Axis Automatic Surface Grinder, FSG-3A1224
Inventory # 2220
Model: FSG-3A1224
Specifications:
Table Size: 12″ x 24″
Max. Distance From Table To Spindle Center: 24 3/4″
Longitudinal Movement: 25 5/8″ (Hydraulic)
Max. Travel: 27 1/2″ (Manual)
Table Speed: 16 – 82 FPM (Variable)
Cross Transverse Travel:
Rapid Travel: 56 IPM
Auto Transverse Increment: .04 – .5″
Max. Auto Transverse Travel: 14 1/8″
Max. Manual Transverse Travel: 14 1/2″
Wheelhead Vertical Infeed:
Automatic Infeed: 0.0001″ – 0.0002″
Hand Wheel / Revolution: 0.1″
Hand Wheel / Graduation: 0.0005″
Rapid Travel: 13 IPM
Micro Feed / Revolution: 0.01″
Micro Feed / Graduation: 0.0001″
Standard Grinding Wheel: 2″ x 14″ x 5″
Standard Features:
High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding
3-Axis fully automatic with surface and plunge grinding cycles
Separate hydraulic system prevents vibration and reduces heat transference
Saddle travels on Turcite-B coated and hand scraped double V guideways
Meehanite cast iron
Wheel head rises up automatically and table parks at left or right side after cycle is completed
Mechanical Specifications:
Dimensions: 105″ x 72″ x 75″ H
Weight: approx. 4,630 lbs.
Contact us for special pricing and availability
FOB Factory
