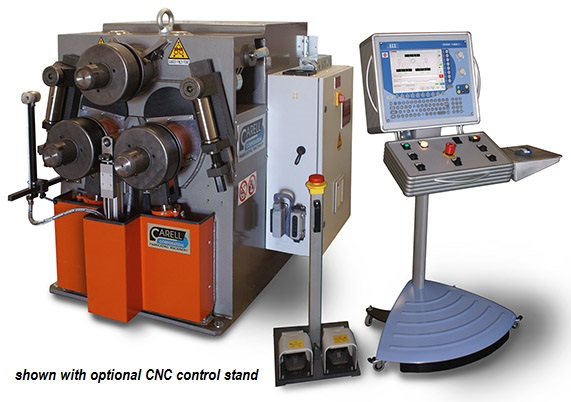

Carell 305HV 3″ Double Pinch Angle Roll
Inventory # 7832
Model: 305HV
Description:
The Carell 305HV is a 3 driven rolls, double initial pinch universal bending machine with independent hydraulic adjustment of both lateral bending rolls and powered rotation of all three bending rolls
The versatile unit is ideal for rolling standard/special sections as well as tube and pipe in mild-structural-stainless steels, aluminum, brass, copper and other materials. Machines are furnished with a set of standard universal rolls
Specifications:
Capacities:
Flat Bar, Hard Way: 3″ x 5/8″, 30″ Min. Diameter
Flat Bar, Easy Way: 5″ x 1″, 26″ Min. Diameter
Square Bar: 1 3/4″, 22″ Min. Diameter
Angle, Leg-Out: 3″ x 3/8″, 42″ Min. Diameter
Angle, Leg-In: 2 1/2″ x 5/16″, 42″ Min. Diameter
Channel, Leg-Out: 5″ x 2″, 28″ Min. Diameter
Channel, Leg-In: 4″ x 2″, 36″ Min. Diameter
Solid Round: 2″, 22″ Min. Diameter
Round Pipe, Sch. 40: 2 1/2″, 32″ Min. Diameter
Round Tube: 3 1/2″ x 14 Gauge
Square Tubing: 2 1/2″ x 10 Gauge
Rolling Speed: 20 FPM
Standard Features:
Dual LED Digital Displays monitor bending roll positions
Double Pinch Geometry permits pre-bending of leading and trailing ends of the profile without removal from the machine
Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
Operates in both horizontal and vertical orientations
Mechanical Specifications:
Weight: approx. 3,450 lbs.
Contact us for special pricing and availability
FOB Factory
