Description

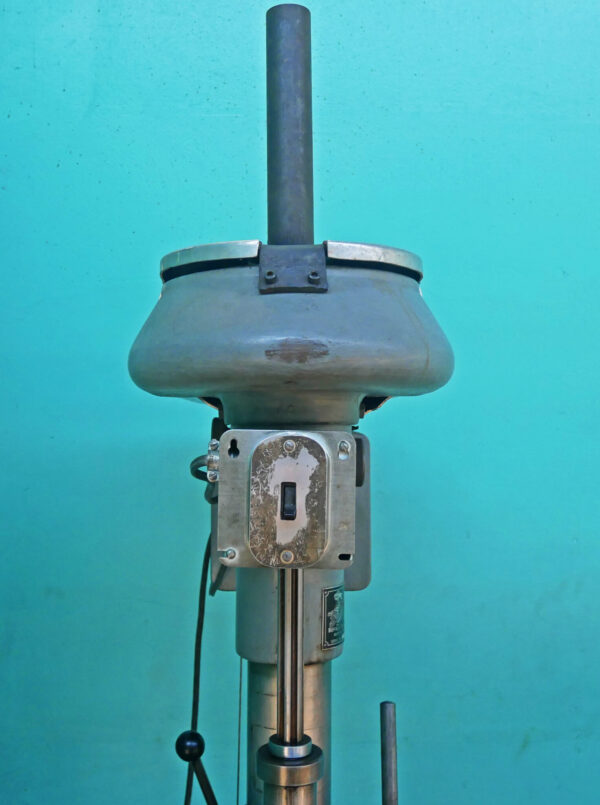

Buffalo Forge Co. 16″ Sensitive-Type Round Column Drill Press, No. 16
Inventory # 9667
Model: No. 16
S/N: 63-3014
Specifications:
Capacity: 7/8″ in Mild Steel
Table Size: 12″ x 12″
Pedestal Size: 11″ x 9″
Spindle Travel: 6 3/4″
Spindle Diameter: 3/32″
Spindle Nose Diameter: 1 7/8″
Spindle Nose Morse Taper: 3 MT, Albrecht Chuck
Spindle Speeds: (5) 400 – 660 – 1,100 – 1,800 – 3,000 RPM
Column Diameter: 4″
Range Adjustment of Sliding Head: 8 1/4″
Motor: .5 HP / 115v / 1ph
Mechanical Specifications:
Dimensions: approx. 35″ x 18″ x 88″ H
FOB Our Baltimore, MD Warehouse
