Description

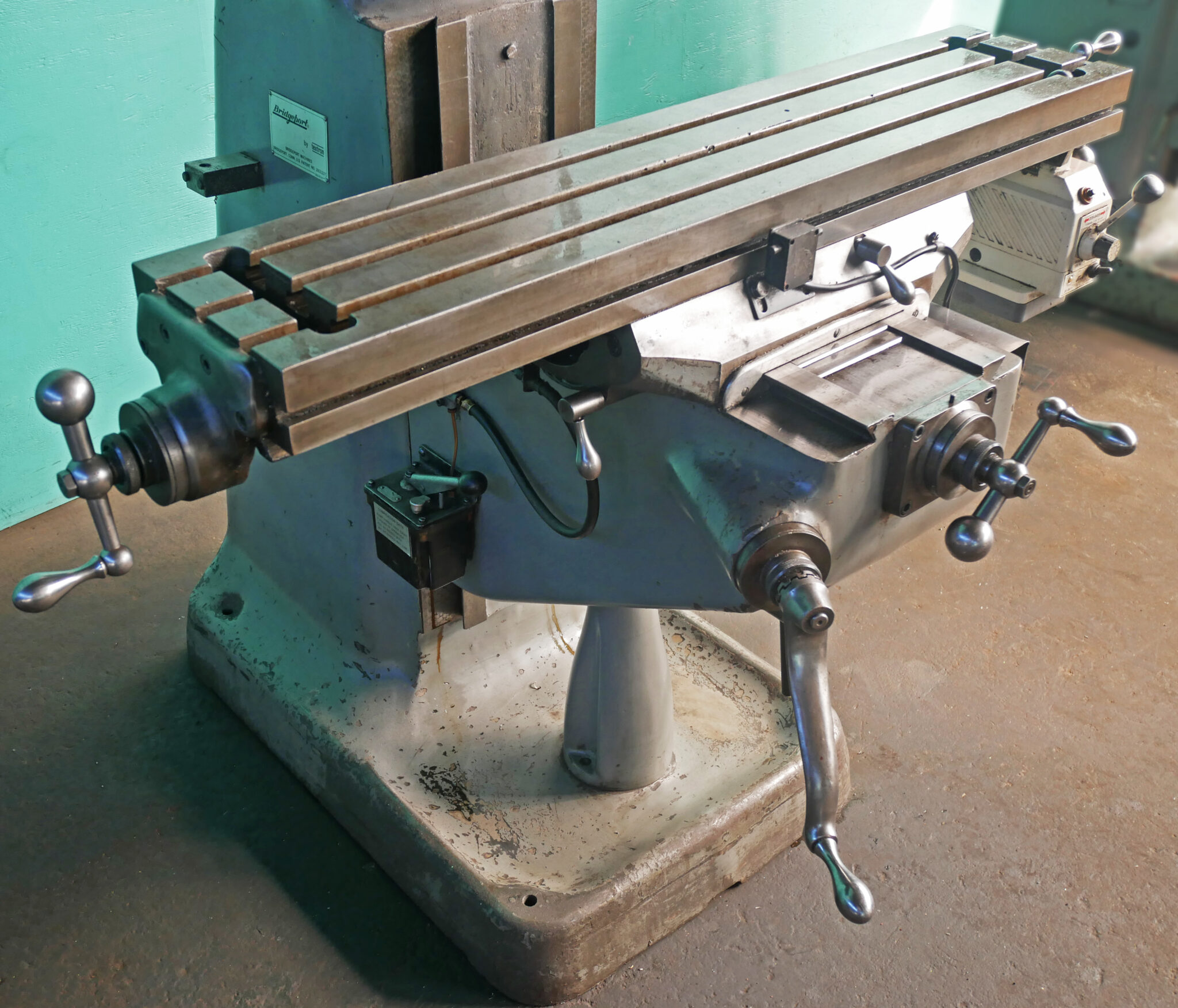

Bridgeport 9″ x 42″ Vertical Milling Machine, Series I
Inventory # 9603
Model: Series I
S/N: 173278
Specifications:
Table Size: 9″ x 42″
X-Axis Travel: 30″ with Power Feed
Y-Axis Travel: 12″
Z-Axis Travel: 16″
Ram Travel: 12″
Quill Travel: 5″
Spindle: R-8
Spindle Speed: (8) 80 – 2,720 RPM, Step Pulley
Throat Distance: 6 3/4″ – 18 3/4″ Max.
Max. Weight of Workpiece: 750 lbs.
Motor: 1 HP / 230v / 3ph
Equipment Included:
2-Axis Mitutoyo Digital Readout
Stainless Steel Coolant System
X-Axis Powerfeed
Mechanical Specifications:
Dimensions: 84″ x 120″ x 87″ H
Weight: approx. 1,930 lbs.
FOB Our Baltimore, MD Warehouse
