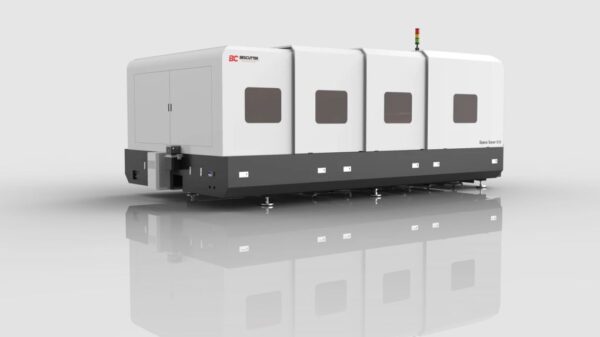

Bescutter ‘Space Saver’ 5′ x 10′ 12kW Fiber Laser
Inventory # 9607
Model: Space Saver, 12kW
Specifications:
Working Area: 60″ x 120″ (5′ x 10′)
Laser Generator: Han’s 12kW
Laser Head: Han’s HC15 (AutoFocus)
Control System: CypCut
Water Chiller: TongFei 12000
Traverse Speed: 3,150″ /Min.
X/Y Axis Positioning Accuracy: <= 0.05 mm/m
X/Y Axis Repeated Positioning Accuracy: <= 0.02mm
Standard Features:
Compact Design with Safety Enclosure. Ideal for Shop with Limited Space
Full Enclosure with Retractable Housing. Easy Loading and Unloading
Space Saving: No Exchange Table
High Rigidity Enhanced Aviation Aluminum Gantry
Rack and Pinion Structure, Servo Drive, Secondary Annealing Treatment of High Rigid Welding Frame with High Accuracy and Stability
Mechanical Specifications:
Dimensions: 213″ x 86″ x 79″ H
Weight: approx. 9,900 lbs.
FOB Factory – Contact us for Pricing and Availability
