Baileigh Industrial 52″ x 16 Gauge Shear, Brake, and Roll, SBR-5216

Shipping: Add to Cart to Calculate

SKU: Baileigh SBR-5216

Inventory #: 5354

Categories: , , ,

Condition:

Type:

Brand:

Description

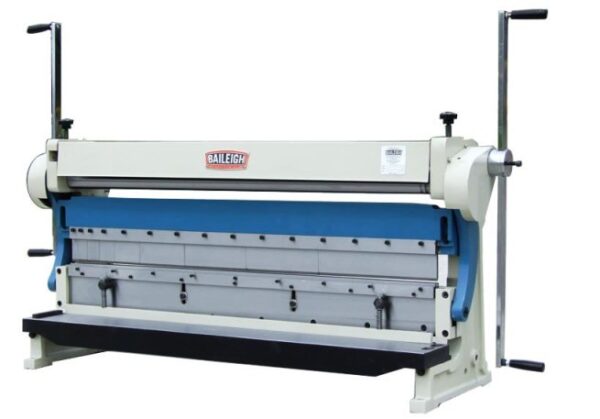

Baileigh Industrial 52″ x 16 Gauge Shear, Brake, and Roll, SBR-5216

Inventory # 5354

Model: SBR-5216

Description:

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear, brake, and roll saves space and money for small shops

Specifications:

Top Roll Diameter: 2.38″

Rolling Capacity: 16 Gauge (.060″)

Shearing Capacity: 16 Gauge (.060″)

Bending Capacity: 16 Gauge (.060″)

Min. Rolling Diameter: 3.57″

Bed Width: 52″

Max. Bend Angle: 90°

Power: Manual

Standard Features:

52″ width lets you roll, bend, and shear 4′ x 8′ sheets

Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom

Hardened, adjustable back and top rolls can form different thicknesses

Top roll can swing away from the machine for convenient material removal

3 grooves on the roll can form wire or round rod

Manual press brake section comes with a fixed bottom V-block die

9 movable fingers on the top beam can make many sizes of boxes and pans

Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material

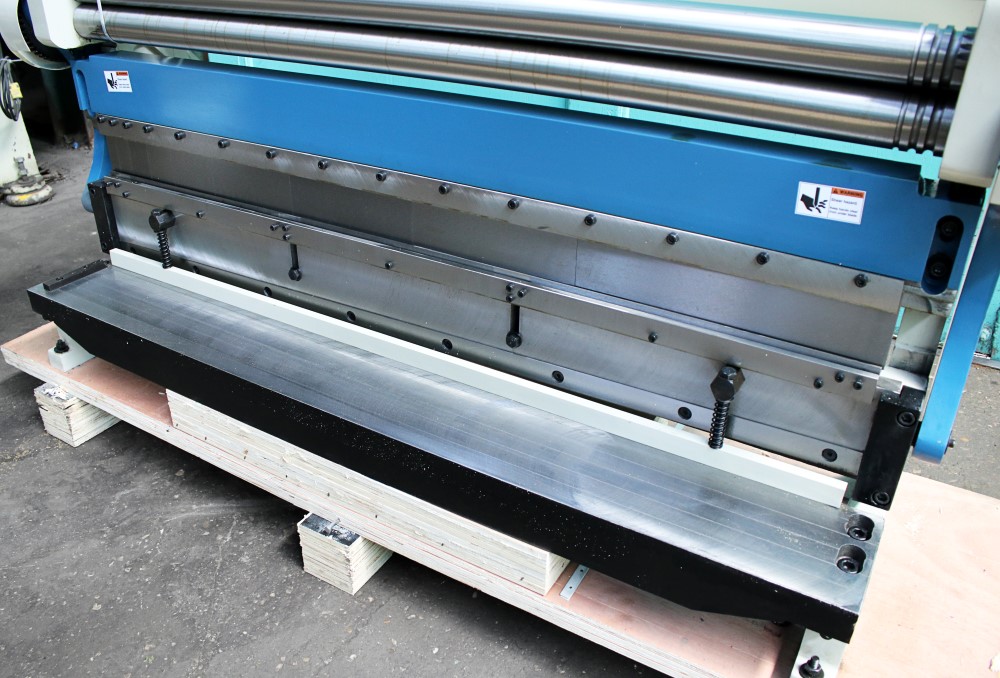

Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, and improve cut quality

You can adjust the blade gap to fit different guages of sheet metal

Material guide included

Hardened, reversible blades stay sharp

Manual back gauge helps you easily produce repeatable parts

Heavy steel construction, weighing 1,200 lbs., gives this combo machines the power to deliver accurate results for many years

One year parts warranty

Mechanical Specifications:

Shipping Dimensions: 71″ x 24″ x 37″ H

Weight: approx. 1,200 lbs.

FOB Factory

Additional information

Weight 1275 lbs
