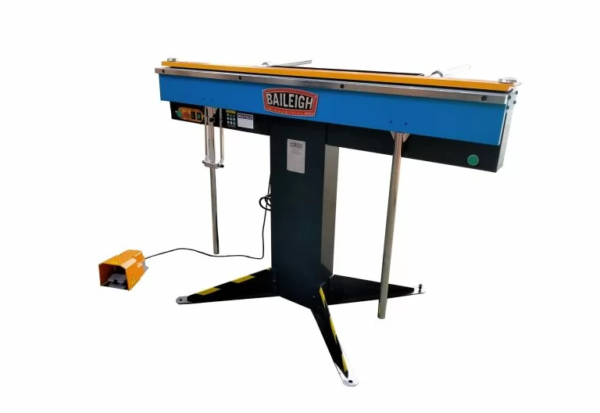

Baileigh Industrial 4′ x 16 Gauge Magnetic Sheet Metal Brake, BB-4816M-V2
Inventory # 9706
Model: BB-4816M-V2
Description:
Baileigh Industrial’s 4′ x 16 gauge magnetic sheet metal brake can bend boxes or pan to almost any depth since it doesn’t rely on conventional finger depths. Recommended for use in HVAC shops, industrial art shops, and general sheet metal fabrication shops. For making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications. As well as bending a variety of materials including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more
Specifications:
Capacity:
Bending Length: 4′ (48″)
Mild Steel: 16 Gauge
Max. Bend: 0 – 180°
Max. Box Depth: Unlimited
Input Power: 220v / 1ph
Standard Features:
Runs on 220-volt single-phase power and will work at virtually any site
4′ (48″) length with a maximum capacity of 16 gauge mild steel
The breakthrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake
6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake
Scaled stroke angle control lets you deliver repeatable bends time after time
You can set up the mild steel clamping bar with straight bars (of various widths if you have very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications
Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses
You can remove the bottom leaf’s bending extension for the tightest bend dimensions between bends of .625″
Comes with product supports and adjustable back gauges for production runs
One-year parts warranty
Mechanical Specifications:
Shipping Dimensions: 57″ x 45″ x 15″ H
Shipping Weight: approx. 500 lbs.
FOB Factory – Contact us for Pricing and Availability
