Description

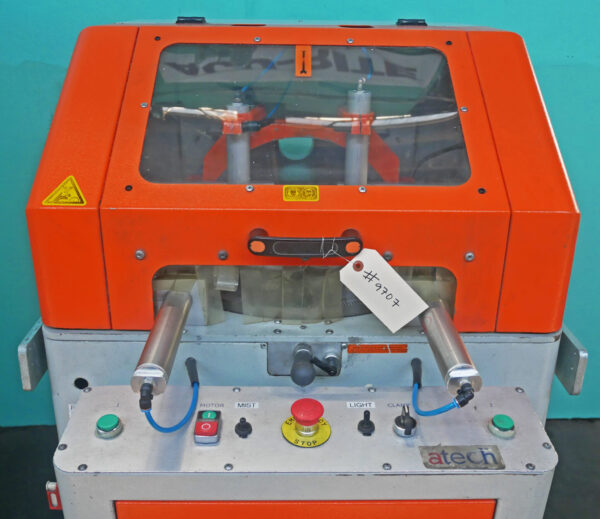

Aslan 18″ Automatic Miter Upcut Saw, US3-450A
Inventory # 9707
Model: US3-450A
S/N: 13020819
Specifications:
Max. Profile Height: 7″
Max. Profile Width: 11″
Cutting Angles: All Angles from -90° Left to +45° Right
Saw Blade Diameter: 17.7″ or 18.1″
Saw Blade Bore Diameter: 1.18″ or 1.259″
Saw Blade Rotation: 3,600 RPM
Air Pressure: 90 – 120 PSI
Air Consumption: 1.25 CFM
Motor: 3 HP / 230v / 1ph
Standard Features:
For cutting wood, aluminum, and vinyl profiles
Strong body for a strong life
Moveable back fence for wider cutting area
Adjustable saw blade rising speed
Multiple profile cutting at one sequence
Safety guard for protection
Saw stops cutting when the safety guard is opened
Pneumatic profile clamping system
Easy-to-use control panel
Hydro-pneumatic speed control system for smooth cutting
Dust collection connecter in the back
Air Pressured Twin Vertical Clamps
Air Gun
Mechanical Specifications:
Dimensions: 36″ x 37″ x 57″ H
Weight: approx. 495 lbs.
New Replacement Cost: $8,900.00
FOB Our Baltimore, MD Warehouse
