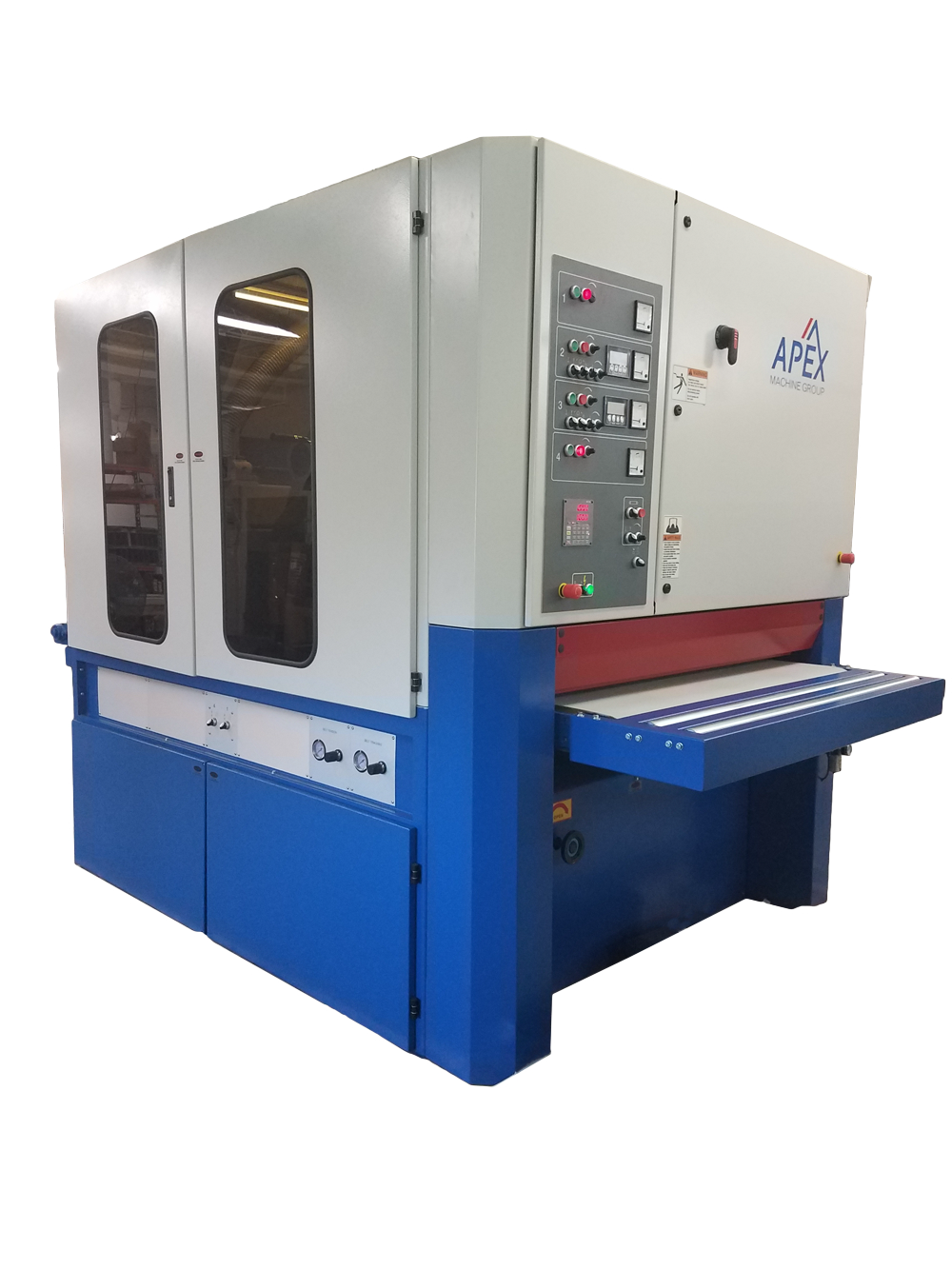

Apex 37″ Three Head Wide Belt / Disc / Disc Deburring & Finishing Machine
Inventory # 7398
Model: 2037M-DSSc
Made in Taiwan
Details:
The 2037W-D2S is engineered and built with heavy production needs in mind and is constructed to give the machine long life and durability.
Consists of a 37” x 75” abrasive belt sanding head followed by twin rows of oscillating discs making up the three sanding stations.
Specifications:
1st Sanding Station/Head: Contact Drum:
For dimensioning the surface of the material being processed
2nd & 3rd Sanding Station/Head: Variable Speed Oscillated Disc Head:
Made up of a row of oscillating rotating discs with variable speeds on both the disc rotation and the oscillation movements and have replaceable abrasive dovetail backed strip style brushes that are made with several hundred different types of abrasive strips and wire materials
Maximum Width Stock: 37”
Minimum Part Length: 12”
Motor: 20 HP, 5 HP, 5 HP @ 460 v / 3 Phase – approximate full load amps: 52
Machine Opening: 0 – 6”
Belt Size: 37” x 75”
Feed Speed: 5-25 FPM
Pass-line height: 32” to 38”
Compressed Air Requirements: 4 CFM @ 90 psi
Standard Features:
Welded carbon steel cage frame for heavy duty, long lasting durability and performance
Lifting-lowering screws mounted on long distance for more rigidity and stability
Abrasive belts oscillation by means of electronic photocell sensor, including sensitivity trimmer adjustment
High efficiency exhaust dust hood system
Idle table rollers support on in-feed
Rubber covered hold down rollers 50 shores
Machined working table in pre-welded steel
Motorized table lifting with fine adjustment, made on 4 precision screws on double support
Table lifting-lowering system completely electrically controlled with manual adjustment wheel for fine adjustment
Heavy duty rubber conveyor belt
Variable feed speed m/min with easy turn of a dial at control panel
Electronic digital display for working thickness; resolution 0.001″
Programmable digital thickness indicator
Air-operated disc brake system
Centralized control panel
Hour meter
Equipment Included:
*Belt Cleaning Unit:
Cleaning device and sticky style conveyor belt, scuffs the special type conveyor belt, allowing the user to run small parts
Motorized conveyor table to allow operator to easily change to the desired thickness
Variable frequency drive
(4) 3M 37″ x 75″ sanding belts
Initial load of suggested abrasives for disc stations
Mechanical Specifications:
Overall Shipping Weight: approx. 6,750 lbs.
Contact us for special pricing and availability
FOB Factory
