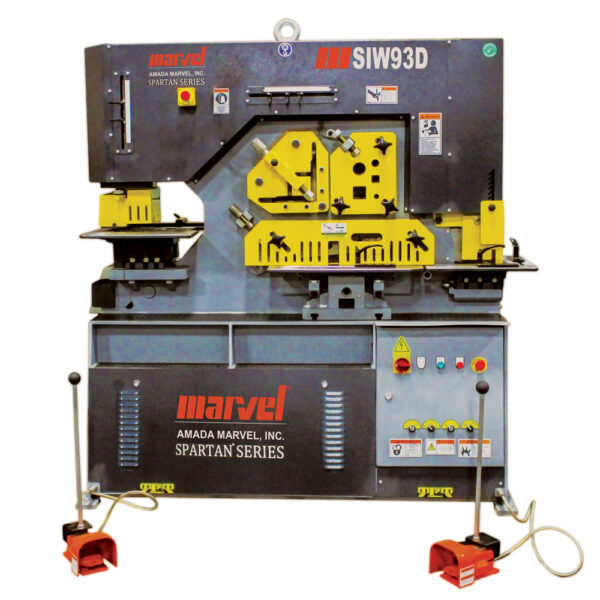

Amada Marvel Spartan 93 Ton Ironworker, MSIW93D
Inventory # 7787
Model: MSIW93D
Made in Turkey
Description:
Marvel Spartan MSIW93D heavy-duty, dual cylinder, completely integrated Ironworker with 93 ton capacity, 5 work stations and simultaneous dual operation
Specifications:
Punching:
Punch Pressure: 93 Tons
Standard Tooling: 1 1/2″ in 3/4″ Material
CPD Series: 26 Punch, 62 Die
Large Tooling: 2″ in 9/16″
CPD Series: SP51P Punch, SP80D Die
Optional Oversize Tooling: 4 5/16″ in 1/4″ Material
Throat Depth: 14″
Stroke Length: 3 5/32″
Cycles per Minute in 3/4″: 25
Punching Station Work Height: 42 1/2″
Flat Bar Shearing:
Flat Bar Shear Capacity: 18″ in 9/16″
Max. Width x Thickness: 14″ in 3/4″
Blade Length: 19″
Angle Flange Trim: 4 3/4″
Flat Bar Shear Work Height: 37″
Angle Shearing:
Capacity:
@ 90°: 6″ x 6″ x 9/16″
@ 45°: 3″ x 3″ x 5 1/6″
Angle Shear Work Height: 47 1/4″
Bar Shearing:
Max. Round Bar Capacity: 2″
Max. Square Bar Capacity: 2″ x 2″
Six Cavity Round and Square Bar:
Round: 3/4″, 1 1/8″, 2″
Square: 1 1/4″, 1″, 2″
Max. Channel Shear (Optional): 6″
Max. H-Beam Shear (Optional): 6″
Bar Shear Work Height: 47 1/4″
Notching:
Rectangular Notcher: 2″ x 4″ x 1/2″
Notcher Work Height: 37″
Motor: 10 HP / 230v, 460v / 3ph
Standard Features:
Punch Holder and Jog Mode
Punch Work Table: Includes back gauge and adjustable stops
Adjustable See-Through Punch Stripper: For fast and easy set up
Die Holder: Adjustable in machined T-slots for quick punch and die alignment
Lower Blade: Four usable edges
Support Table: Includes guides for accurate positioning and indicator lines at 30° and 45° left and right
Adjustable Hold-Down: Holds work piece securely in position when shearing
Upper Shear Blade: Provides for minimum distortion. Two usable edges
Shearing with no material loss and minimum deformity
Shear Blades: Four usable edges
Electrical Interlock Safety Guard
Guage Table with Stops: For precise positioning
Five Sets of Punches and Dies:
Punches: 9/16″, 11/16″, 13/16″, 15/16″, 1 1/16″
Dies: 19/32″, 23/32″, 27/32″, 31/32″, 1 3/32″
Adjustable Electric Back Gauge (36″)
24 Volt DC Control Voltage
Scrap Boxes at Punching and Notching Stations
Adjustable Stroke Depth at Punch
Two Full-Control Foot Pedals
Two Hole Die Holders
Two Piece Gauging Table at Punch Station
Keyed Punch Holder for Shaped Tooling
Mechanical Specifications:
Dimensions: 75″ x 39″ x 74″ H
Weight: approx. 5,200 lbs.
FOB Factory – Contact us for Availability
