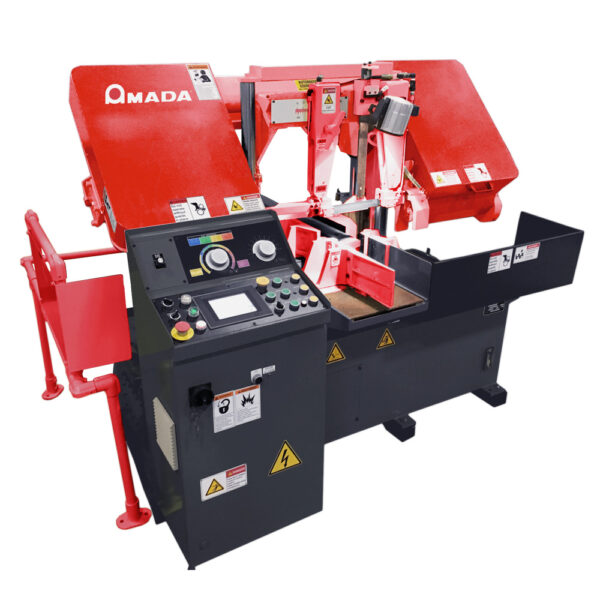

Amada Marvel Spartan 12″ x 10 1/4″ Heavy-Duty, Hydraulic, Horizontal Automatic Band Saw, HFA260P
Inventory # 6692
Model: HFA260P
Specifications:
Capacity:
Rectangular: 12″ x 10 1/4″
Round: 10 1/4″
Blade Size: 12′ 11″ x 1 1/4″ x .042″
Blade Tension: 30,000 PSI
Speed Range: 65 – 330 SFPM, Variable
Hydraulic Shuttle Feed: 0 – 16″
Repeatability: +/- .005″ per Index
Main Motor: 5 HP / 230v / 3ph
Standard Features:
Hydraulic Down Feed: Feed rate and down pressure can be controlled independently for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s station
Operator’s Control Panel: Conveniently located on the left-hand side of the machine, it offers full control of all machine functions such as; vising, saw frame, bundle clamping, touch screen, shuttle advance and retract, coolant, work light, and more
MPC Programmable Control: Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to 100 jobs. Inputs include part length from 0 – 999″ (in inches up to 3 decimal places) and number of pieces to be cut. The automatic piece counter stops each job when the pre-set number of cuts have been made. The control provides the option of running up to 20 parts in one job consecutively
Out-of-Stock Switch: The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation
Blade Guides: The combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of +/- .002 per inch of cut material
Fast Approach: Work height is automatically set allowing the bead to rise just enough to clear the workpiece, reducing cycle time and allowing for faster cutting performance
Chip Brush: Powered from the main drive shaft of the saw, the brush changes speed along with the blade to ensure that chips are being removed from each gullet of the blade, improving cutting performance and blade life
Work Light: Positioned directly over the work area to provide better illumination of the cutting area, the work light can be turned on and off independently from the operator’s control panel
Vise Jaws: Hydraulic full stroking. Front jaws are split to reduce the remnant to as little as 3″. The split vise jaws also help to reduce burrs left on the material and are ideal for bundle cutting. Holding the work piece on both sides of the blade reduces blade vibration, providing more accurate cuts and longer blade life
Rear Vise: The rear vise floats hydraulically to accommodate crooked stock assuring straight and accurate cuts
Automatic Chip Removal: The chip auger rotating in the coolant return removes chips quicly and efficiently, freeing the operator to perform more productive operations. Coolant is allowed to drain back to the tank before the chips are removed from the machine
FOB Factory – Contact us for Availability
