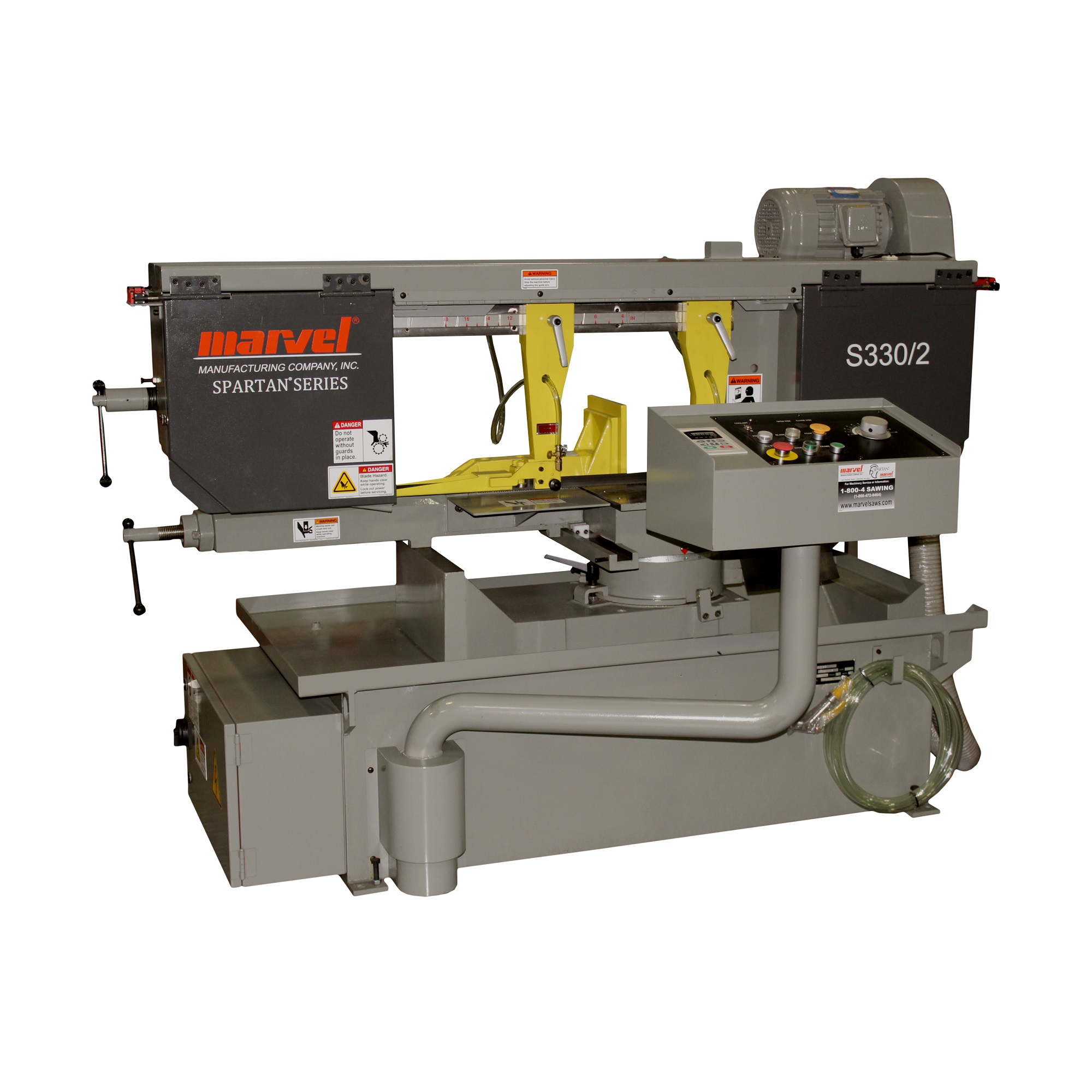

Amada Marvel Spartan 11″ x 12″ Horizontal Mitering Band Saw, S330/2/HV
Inventory # 7807
Model: S330/2/HV
Specifications:
Capacity:
@ 45°:
Rectangle: 11″ x 12″
Round: 13″
@ 60°:
Rectangle: 11″ x 8″
Round: 9 1/2″
@ 90°:
Rectangle: 12″ x 18″
Round: 13″
Table Height: 30 1/2″
Blade Speed: 0 – 330 FPM (Inverter Drive)
Blade Size: 162″ x 1″ x .035″
Cast Iron Blade Wheels: 16″ Diameter
Machine Vise: Manual Quick Position with Cam Lock
Motor: 3 HP / 230v / 3ph
Standard Features:
Blade Tension: Manual tension (30,000 PSI) provides consistent square cutting accuracy
Speed Range: Blade speed is infinitely variable through an Inverter Drive heavy-duty worm gear transmission. Blade speeds are 60 – 330 FPM. The broad speed range allows for optimum cutting of a large spectrum of materials
Hydraulic Down Feed: Infinitely variable feed rate is hydraulically controlled for fast, accurate cutting. Settings are made at the operator’s control station
Hydraulic Frame Return: The saw frame is raised hydraulically using a push button mounted on the operator’s control panel
Blade Guides: Carbide blade guides provide reduced vibration, heat and blade stress providing longer blade life and accuracies of +/- .002 per inch of cut material
Chip Brush: Powered from the drive wheel of the saw, the brush changes speed with the blade to assure that chips are being removed from each gullet, improving cutting performance and blade life
Vise Jaw: Hydraulic vise design clamps and holds the work piece securely. The vise is operated by a selector switch located on the operator’s control panel. Maximum vise opening is 18″
Swivel: The saw frame swivels a full 60° to the rear and 45° to the front for optimum miter cutting capability. The pivot shaft has sealed bearings for maintenance free operation, while a pointer and angle scale (-60° to +45°) make set up fast and easy. Stops are provided at -60° and +45°
Operators Control Panel: Operation of the machine is safe and convenient from the swing arm pedestal mounted on the machine base. Control voltage is 110v
Mechanical Specifications:
Dimensions: 82 1/2″ x 86 1/2″ x 53 1/4″
Weight: approx. 3,000 lbs.
FOB Factory – Contact us for Availability
