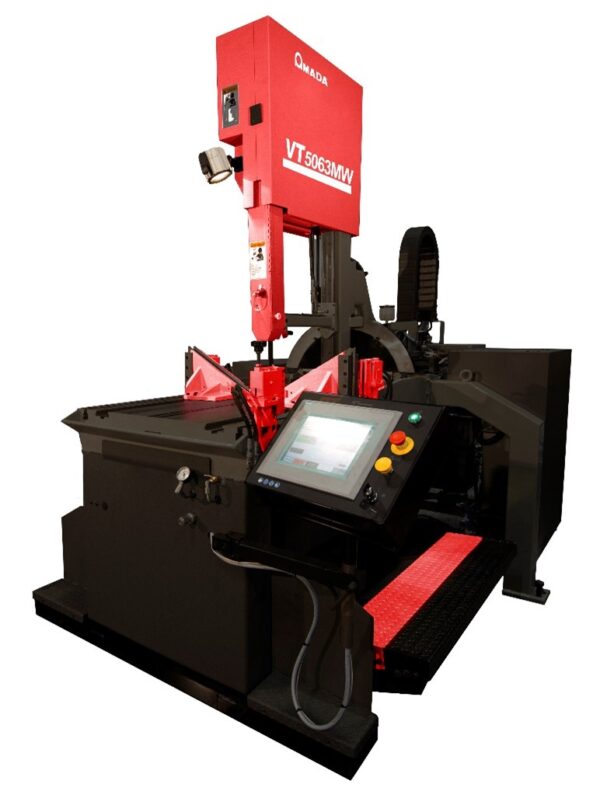

Amada Marvel 20″ x 25″ Manual Vertical Tilt Frame Band Saw, VT5063MW (Formerly 2150M)
Inventory # 7791
Model: VT5063MW
Made in USA
Specifications:
Capacity:
Nominal:
Rectangular: 20″ x 25″
Round: 20″
@ 45°:
Rectangular: 20″ x 17″
Round: 17″
@ 60°:
Rectangular: 20″ x 11 1/4″
Round: 11 1/4″
Table Height: 40″
Speed Range: 30 – 650 FPM
Feed Force: 0 – 350 lbs.
Blade Size: 218″ x 1 1/2″ x .05″
Blade Guides: Combination Roller Bearing / Carbide
Blade Tension: 45,000 PSI
Blade Motor: 7.5 HP
Standard Features:
Position accuracy of +/- .005″ per index
Feed Force: Direct force sensing electric ball screw
The 3° forward canted column reduces cutting times on structural shapes and extends blade life
Blade Guides: Rotating easy load combination carbide and ball bearing roller guides with self tensioning design
Blade Tension: Hydraulically controlled, 45,000 PSI maximum
Machine equipped with automatic blade break, blade stall shut-off switch
Vises: Hydraulic, full stroking with 9 1/2″ x 15″, 60° faceplates
Coolant System: Built-in flood system, with optional drop lubrication system
Easy Load Blade Guide:
Marvel’s patented easy-load blade guides make blade changes easier than ever
The blade change mode selector switch locks out all other saw functions while the blade is being changed
Hydraulic Vise Jaws:
Full stroke hydraulic vises help simplify set-up and material positioning for easy operation
The optional Second Machine Vise helps eliminate burs and align crooked material
Hydraulic Pack:
The compact self-contained hydraulic pack provides feed pressures up to 350 lbs. and blade tension up to 45,000 PSI. The system is equipped with a low fluid sensor that shuts the machine down if the hydraulic fluid level drops below a safe operating level
Contact us for special pricing and availability
FOB Factory
