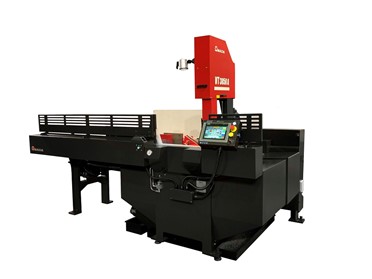

Amada Marvel 15″ x 20″ Vertical Tilt Frame Band Saw, VT3850A (Formerly 380APC)
Inventory # 7789
Model: VT3850A
Made in USA
Specifications:
Capacity:
Nominal 0° Cant:
Rectangle: 15″ x 20″
Round: 15″
Blade at 45°:
Rectangle: 15″ x 14″
Round: 14″
Blade at 60°:
Rectangle: 15″ x 9 1/4″
Round: 9 1/4″
Blade at -45°:
Rectangle: 15″ x 13 1/4″
Round: 13 1/4″
Blade at -60°:
Rectangle: 15″ x 8″
Round: 8″
Nominal 3° Cant:
Rectangle: 14 1/2″ x 20″
Round: 14 1/2″
Blade at 45°:
Rectangle: 14 1/2″ x 13 1/2″
Round: 13 1/2″
Blade at 60°:
Rectangle: 14 1/2″ x 8 3/4″
Round: 8 3/4″
Blade at -45°:
Rectangle: 14 1/2″ x 12 3/4″
Round: 12 3/4″
Blade at -60°:
Rectangle: 14 1/2″ x 7 3/4″
Round: 7 3/4″
Speed Range: 60 – 400 FPM
Feed Force: 0 – 300 lbs.
Blade: 192″ x 1 1/4″ x .042″
Blade Tension: 35,000 PSI
Blade Motor: 5 HP
Standard Features:
Touch screen control
Hydraulically controlled blade tension
Automatic sensor for jammed blade protection
60° mitering left and right
48″ double ball screw automatic bar feed with high speed travel for faster cycle times
Direct Force Sensing Electric Feed combining more consistent feed force with greater control
Direct positioning feedback on automatic bar feed
Marvel’s patent pending “Easy Load Blade Guides”
Precision linear ways on column, automatic bar feed, and guide arm
Inverter blade drive with sensorless vector control
Patent pending quick change column design, adjustable from 90° to 3° forward cant
Jammed blade protection guards against blade damage
Standard Equipment:
PC3 Programmable Control:
User friendly full color touch screen control
Graphical part programming and user friendly interface
Memory for up to 500 jobs and parts stored on removable media
A customizable material library
Blade speed, feed pressure and feed rate are automatically set either by material type or pre-programmed jobs
Easy Load Blade Guide:
Marvel’s patented easy-load blade guides make blade changes easier than ever
The blade change mode selector switch locks out all other saw functions while the blade is being changed
Automatic Bar Feed:
The 380 features the 48″ double ball screw bar feed design with following support rollers, shuttle speeds up to 60 FPM and repeatability tolerances of +/- .005″
The 380 bar feed uses preloaded recirculating linear guides with the electronic measuring scale implanted within the linear rail
Hydraulic Vises:
The vises are two stage half stroking. The vise jaws are easily repositioned on the clamping cylinder to cover a range of either 15″ – 7 1/2″ or 8 1/2″ to 0.5″
The vise controls are conveniently located on the PC3 touch screen control
