Description

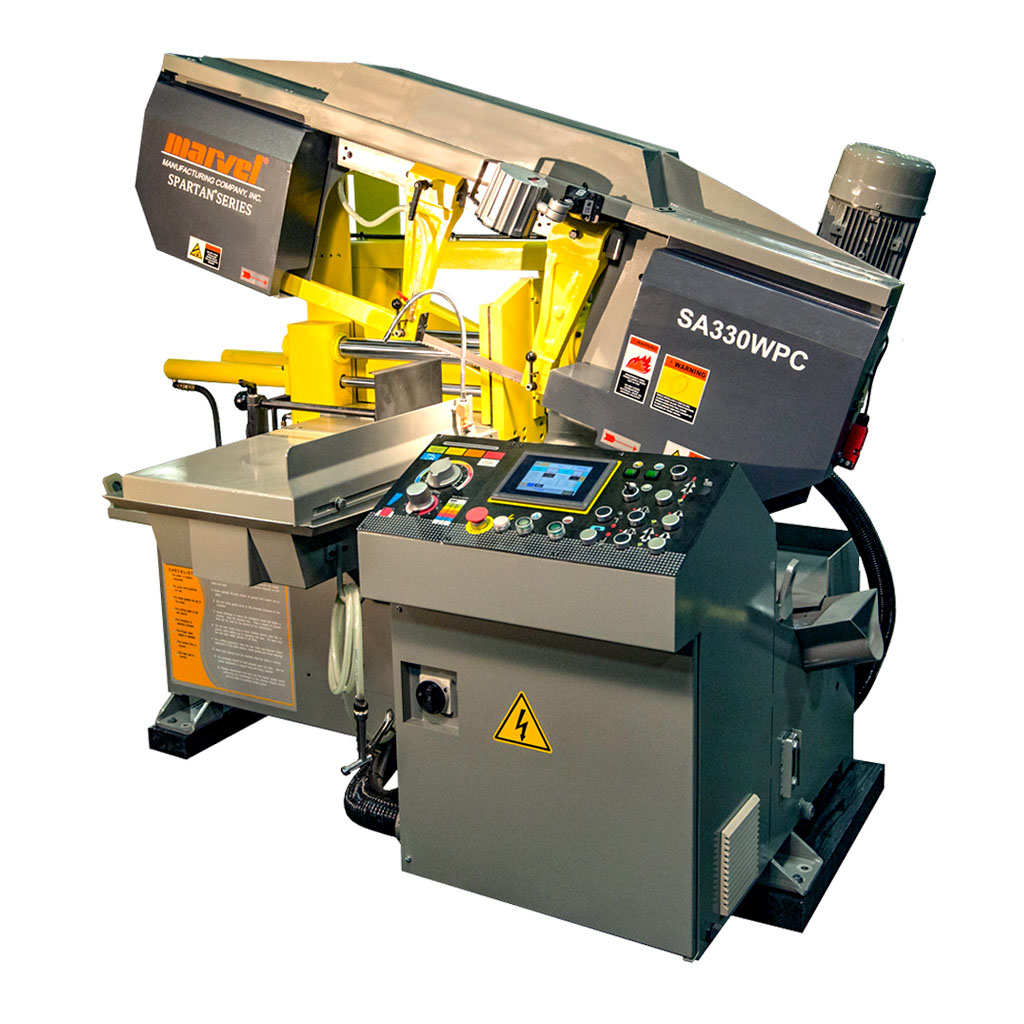

Amada Marvel 11″ x 13″ Bundle Cutting Horizontal Mitering Saw, SA330WPC
Inventory # 7794
Model: SA330WPC
Made in USA
Specifications:
Capacity:
@ 45°:
Rectangle: 11″ x 13″
Round: 11″
@ 90°:
Rectangle: 13″ x 16″
Round: 13″
Square: 13″ x 13″
Blade Speed: 95 – 295 FPM
Blade Size: 163″ x 1″ x .035″
Blade Tension: Manual
Max. Index Capacity: 0 – 27.6″
Hydraulic Pump: 1 HP / 230v / 3ph
Blade Motor: 5 HP / 230v / 3ph
Standard Features:
Blade Tension: 28,000 PSI. Manually controlled tension with blade tension indicator gauge provides consistent square-cutting accuracy. The motion detector will shut the machine off should the blade break or stall
Speed Range: 95 – 295 FPM infinitely variable through an inverter drive and a heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. The on-screen tachometer assures accurate speed setting
Hydraulic Down Feed: Feed rate and down pressure can be controlled independently for fast, accurate cutting. Set up is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s station
Hydraulic Shuttle Feed: Length Settings of 0-27.6″ are accomplished with simple programming at the operator’s touch screen. The shuttle comes to positive stops at both ends of the index, assuring cut-off length accuracy, and reducing material loss. Repeatability is +/- .005″ per index
PC Programmable Control: Conveniently located on the operator’s control panel, this touchscreen control allows the operator to program and store up to ten jobs. Inputs include part length from 0 – 393.661″ and number of pieces to be cut. The blade speed is displayed on and set using the touchscreen but is not stored in memory. The automatic piece counter stops each job when the pre-set number of cuts has been made. The control provides the option of running up to 10 jobs consecutively
Out-of-Stock Switch: The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation
Blade Guides: The combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of +/- .002 per inch of cut material
Fast Approach: Work height is manually set allowing the head to rise just enough to clear the workpiece, reducing cycle time and allowing for faster cutting performance
Chip Brush: Powered from the main drive wheel of the saw, the brush changes speed along with the blade to ensure that chips are being removed from each gullet of the blade, improving cutting performance and blade life
Full Stroking Hydraulic Vise Jaws: Holding the workpiece, providing accurate cuts and longer blade life
Rear Vise: The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts
Operator’s Control Panel: Conveniently mounted on the right-hand side of the machine and offers full control of all machine functions such as; Vises, Blade Speed, Saw Frame, Bundle Clamping, Shuttle Advance and Retract, Coolant and Work Light
Work Light: Positioned directly over the work area to provide better illumination of the cutting area, the work light can be turned on and off independently from the operator’s control panel
Mechanical Specifications:
Shipping Weight: approx. 3,190 lbs.
FOB Factory – Contact us for Availability
