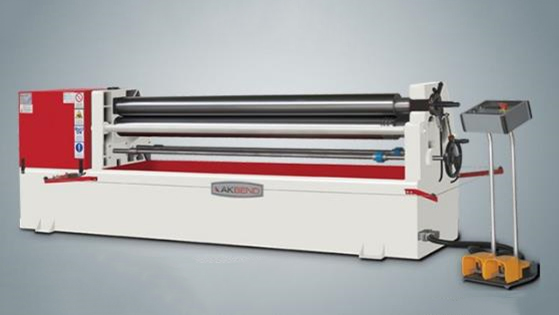

Akyapak 4′ 3-Roll Asymmetrical Plate Bending Machine, ASM 110-12/3.5
Inventory # 8750
Model: ASM 110-12/3.5
Description:
The ASM model is made of cast iron construction. ASM machines are combining the user friendly features, quality, and best prices as an economical model
Specifications:
Working Length: 4′
Pre-Bending: 8 Gauge
Max. Thickness: 6 Gauge
Toll Roll Diameter: 4.3″
Min. Bending Diameter: 5.9″
Bending Speed: 14.8′ /Min.
Motor: 3 HP / 230v, 480v / 3ph
Standard Features:
Body is made of cast iron construction
Central rollers driven by electric motor, gearbox, and gear drive
Cone bending device
Self brake main motor
Top roll can be swiveled out
Lower roll and back roll are with hand wheels up and down adjustable
Separate electric control panel with foot pedal
Suitable for CE, ISO 9001-2008, TSEK and TURQUM certificates
Equipment Included:
Back Roll with Motor
Hardened Rolls
Mechanical Specifications:
Dimensions: 91.2″ x 33.6″ x 45.6″ H
Weight: approx. 2,535 lbs.
Price on Request
FOB Factory
