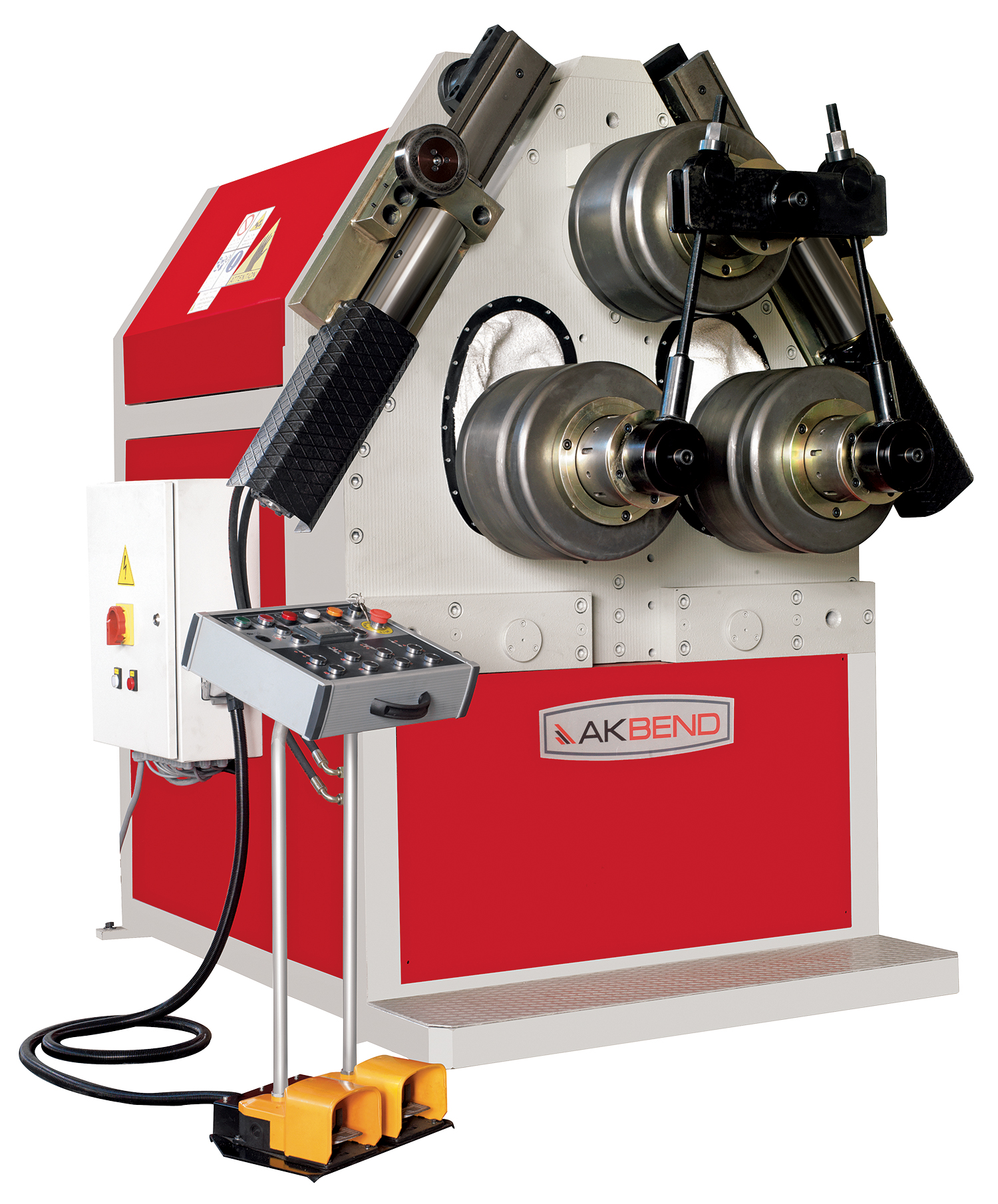

Akyapak 2″ Profile Angle Roll Bender, APK 121
Inventory # 8130
Model: APK 121
Description:
The power of hydraulic cylinders enables to bend the larger parts without difficulty. Practical and universal rollers creates the possibility of easiness for bending various sections, and this feature gives the opportunity of being more powerful and robust
Akyapak Profile Bending Machines are 3 rolls driven. This feature allows to have a possibility to make the high capacity bending processes real. Secondly, Akyapak’s 3 rolls driven machine minimizes the slipping of the materials during the bending process. The two bottom rolls are hydraulically driven and they can move independently with each other
Therefore, in comparison with the machines which are top roll drive, the features of our machines enhance the ability of operators and give the opportunity to make pre-bending process on both edges. Side supporters can move towards three directions to reduce the deformations and to facilitate bending processes, especially with angles and spirals
Specifications:
Capacities:
Angle, Leg Out:
2″ x 2″ x 3/16″, 26″ Min. Diameter
5″ x 5″ x 1/2″, 52″ Min. Diameter
Angle, Leg In:
2″ x 2″ x 1/4″, 26″ Min. Diameter
4″ x 4″ x 1/2″, 44″ Min. Diameter
Flat, Hard Way:
1 1/2″ x 3/8″, 20″ Min. Diameter
5″ x 1″, 60″ Min. Diameter
Flat, Easy Way:
8″ x 2″, 40″ Min. Diameter
Solid Square:
3″, 32″ Min. Diameter
Solid Round:
3 3/8″, 36″ Min. Diameter
Tube:
2″ x 0.79 Wall, 24″ Min. Diameter
6 1/4″ x 0.157 Wall, 118″ Min. Diameter
Pipe:
5″ Sch. 40, 70″ Min. Diameter
Square Tube:
3 1/2″ x 0.312 Wall
Roll Diameter: 15.35″
Shaft Diameter: 4.72″
Bending Speed: 13′ /Min.
Motor: 20 HP
Standard Features:
Steel construction body
Rolls are driven by hydraulic motor and planetary gearbox and gears
Shafts are made of special steel, hardened and ground
One set standard rolls
Lower rolls hydraulically movable up and down
Digital display for lower rolls
Separate and movable control panel
Guide rolls are adjustable manually in one direction
Manual lubrication
Certified by CE, ISO 9001 – 2008, TSEK and TURQUM
Mechanical Specifications:
Dimensions: 57.6″ x 78″ x 80.4″
Weight: approx. 10,405 lbs.
Price on Request
FOB Factory
