Description

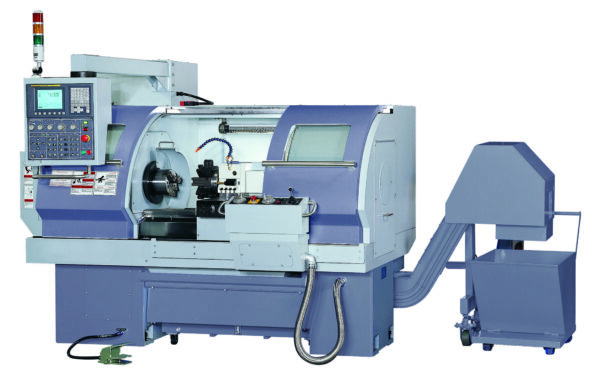

Acra 14″ x 40″ ENC CNC Lathe, FEL-1440
Inventory # 7504
Model: FEL-1440
Specifications:
Swing Over Bed: 14.17″
Max. Working Length: 27.55″
Max. Working Diameter: 6.7″
Between Centers: 35.82″
Width of Bed: 10.236″
Spindle Nose: A25
Spindle Center Sleeve: M.T. #4
Spindle Bore: 1.81″
Bar Capacity: 1.41″
Range of Spindle Speed: 40 – 5,000 RPM (Infinite Variable)
Motor: 7.5 HP (10 HP Optional)
Travel X: 8.07″
Travel Z: 34″
Rapid Travel: 295.3/393.7 ipm
Axis Motor: 1 HP
Z Axis Motor: 1.6 HP
Turret:
Tool Station: Standard Manual 4-Way Tool Post
Boring Bar Diameter: 20mm (0.787″)
Tailstock:
Quill Taper: M.T. #4
Quill Diameter: 2.28″
Quill Travel: 5.5″
Standard Equipment:
Fanuc OI Mate TD Controller
Halogen Light
Coolant System
Contact us for special pricing and availability
FOB Factory
