Acra 17″ x 40″ Precision Engine Geared Head Lathe, 1740TE
Inventory # 8262
Model: 1740TE
Made in Taiwan
Specifications:
Swing Over Bed: 17″
Swing Over Cross Slide: 10 7/8″
Distance Between Centers: 40″
Swing in Gap: 24 7/16″
Spindle Bore: 2 1/2″
Spindle Nose: D1-6
Spindle Speed: 36 – 1,800 RPM (12 Steps)
Motor: 7.5 HP / 230v, 460v / 3ph
Standard Equipment:
10″ 3-Jaw Chuck
12″ 4-Jaw Chuck
Coolant System
Halogen Light
Full Length Splash Guard
Steady / Follow Rest
4 Way Tool Holder
Mechanical Specifications:
Machine Weight: approx. 3,850 lbs.
Shipping Weight: approx. 4,500 lbs.
Contact us for special pricing and availability
FOB Factory

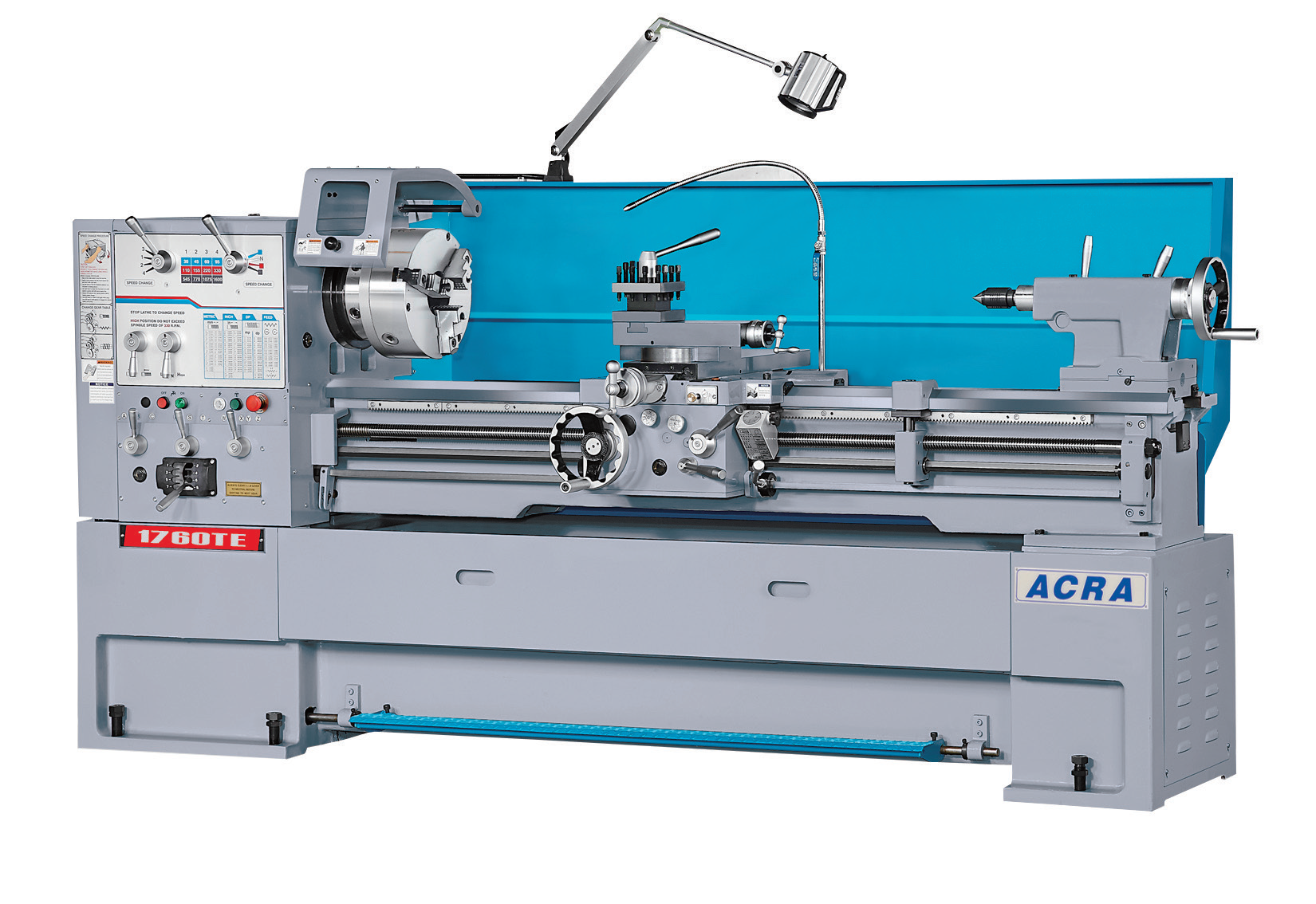

Please Note: Photo is of Model 1760TE and is for Representation Only. Actual Product Purchased May Differ in Appearance
