Description

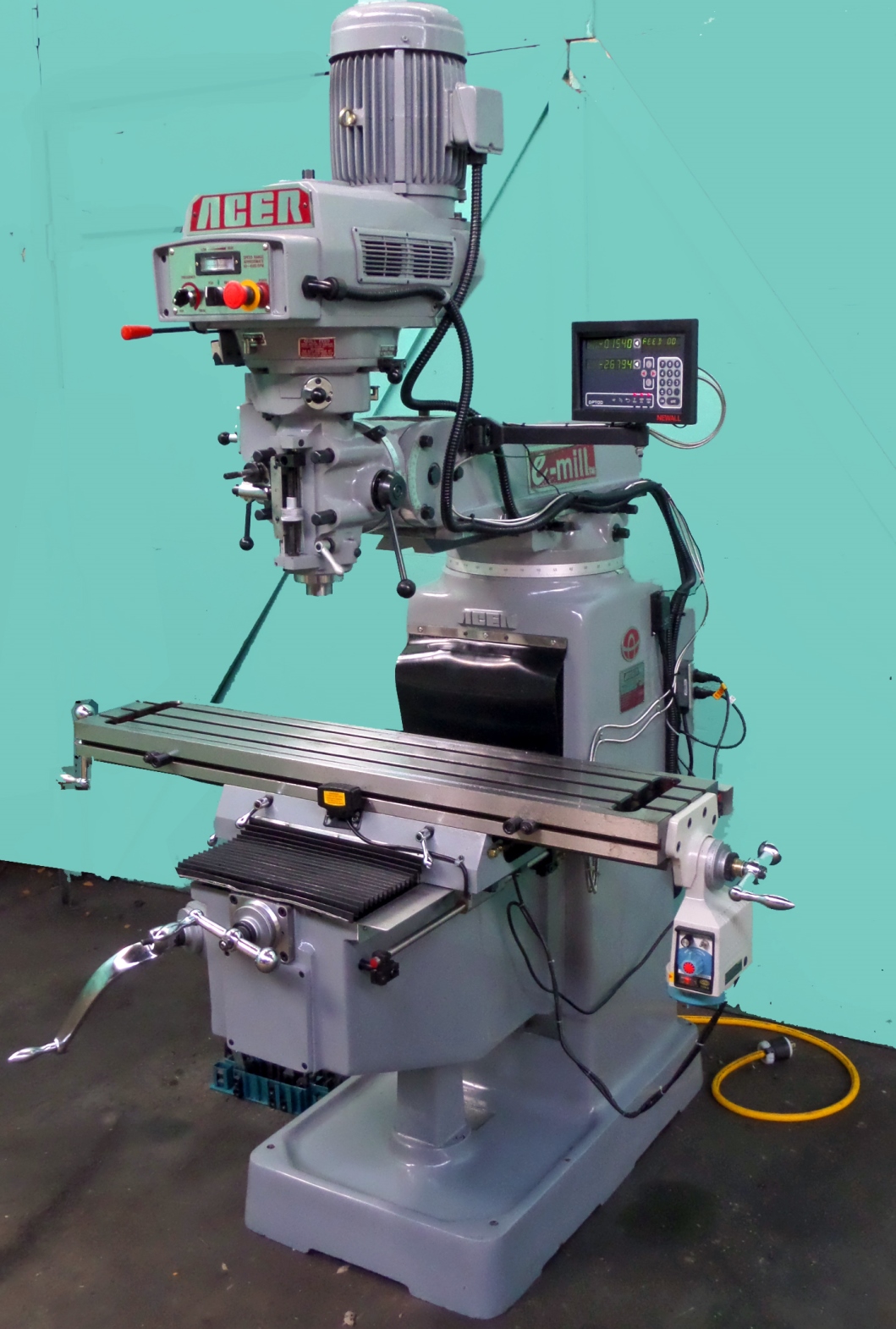

Acer E-Mill 10″ x 50″ Milling Machine with Newall DRO & Power Feed, 3VK
Inventory # 3028
Model: 3VK
Specifications:
Table Size: 10″ x 50″
Longitudinal Travel: 29″
Cross Traverse: 16″
Ram Traverse: 20″
Vertical Traverse: 16″
Quill Travel: 5″
Quill Diameter Chromed: 3 3/8″
Quill Power Rate: 0.0015″, 0.003″, 0.006″ /Rev.
Spindle Taper: R-8
Spindle Speed: 0 – 500 – 4,500 RPM (Variable)
Motor: 3 HP
Standard Features:
3 HP spindle inverter motor with frequency inverter drive
Newall DP700 2-Axis Digital Readout
Longitudinal Align Power Feed
Large digital spindle RPM display
Spindle is designed not to turn on automatically when power is restored after power failure
Precision grinding head housing; Electric brake
Precision spindle with ABEC-7 bearings
Precision X & Y axes and Knee by hardened and ground dovetail ways to HRC 52°
Rigid Meehanite GA-50 casting; One shot lubricator
Mechanical Specifications:
Weight: approx. 3,050 lbs.
Contact us for special pricing and availability
FOB Factory
