Description

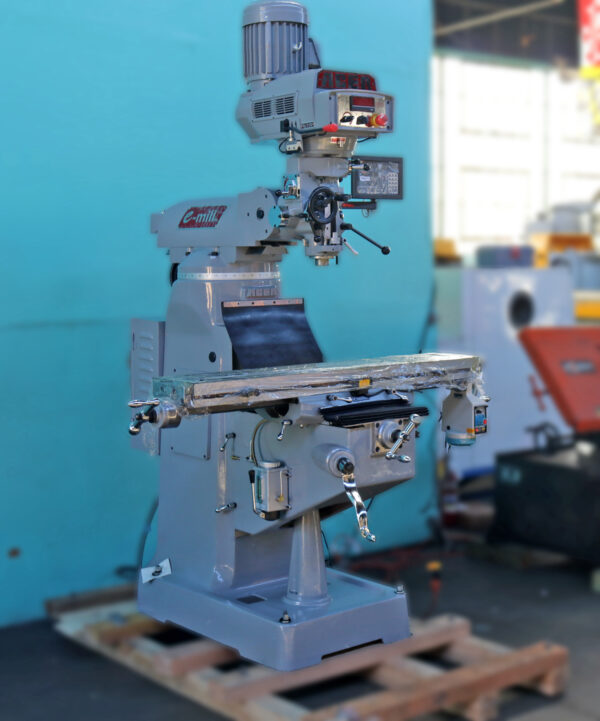

Acer 9″ x 49″ E-Mill Vertical Milling Machine with Newall DRO & Power Feed, 3VS-II
Inventory # 8863
Model: 3VS-II
Specifications:
Table Size: 9″ x 49″
Longitudinal Traverse: 30″
Cross Traverse: 12″
Ram Traverse: 12″
Vertical Traverse: 16″
Quill Travel: 5″
Quill Diameter Chromed: 3 3/8″
Quill Power Rate: 0.0015″, 0.003″, 0.006″ /Rev.
Spindle Taper: R-8
Spindle Speeds: 0 – 500 – 4,500 RPM (Variable)
Spindle Motor: 3 HP
Standard Features:
3 HP spindle inverter motor with frequency inverter drive
Newall DP700 2-Axis Digital Readout
Longitudinal Align Power Feed
Large digital spindle RPM display
Spindle is designed not to turn on automatically when power is restored after power failure
Precision grinding head housing; Electric brake
Precision spindle with ABEC-7 bearings
Chromed plated and precision ground spindle quill
Precision X & Y axes & Knee by hardened and ground dovetail ways to HRC 52°
Rigid Meehanite GA-50 casting; One shot manual lubricator
Mechanical Specifications:
Floor Space: 94″ x 69″ x 90″ H
Shipping Dimensions: 67″ x 67″ x 71″ H
Net Weight: approx. 2,380 lbs.
Contact us for special pricing and availability
FOB Factory
