Acer 14″ x 54″ CNC Bed Mill with Rigid Head and Fagor 3-Axis CNC Control, E 1454E
Inventory # 9666
Model: E 1454E
S/N: N16020062 “2016”
Specifications:
Table:

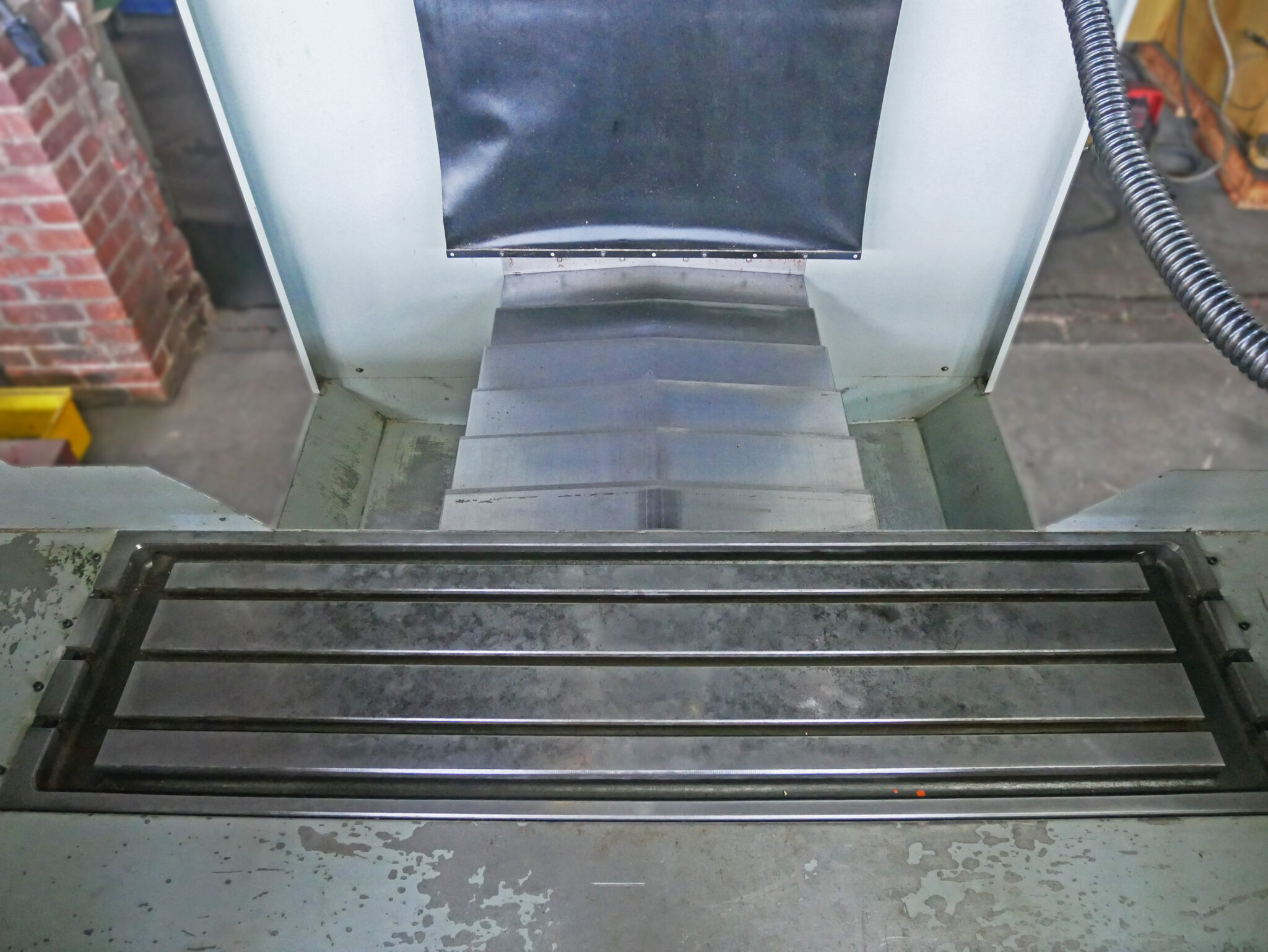

Table Size: 14″ x 54″
T-Slots: (3) 5/8″
Max. Table Load: 1,960 lbs.
Travel:
X-Axis: 40″
Y-Axis: 22.44″
Z-Axis: 26.77″
Rapid Feed: 200 IPM
Spindle Nose to Table: 1″ – 27 3/4″
Spindle Center to Column Face: 21.3″
Spindle:
Quill Diameter: 4.72″
Spindle Taper: CAT #40 (Optional BT #40, NMTB #40)
Spindle Speed: 0 – 6,000 RPM (High/Low)
Working Capacities, Mild Steel:
Drilling: 1 1/4″
Milling: 7″ /Min.
Boring: 6.3″
Tapping: 1.18″
Air Requirement:
Pneumatic Pressure: 85.34 PSI /Min.
Motors:
Spindle: 7.5 HP
Coolant Pump: 1/8 HP
Lubrication Pump: 80 Watts
Main: 9 HP
Standard Features:
Rigid spindle housing with pneumatic air tool change
Column base is 15 3/4″ wide by 17.72 deep
Head stroke deep at 21.26″
Saddle supporting width is 49.21″ – the widest at its class
Extra wide square slideways on Y (17.72″) and Z (11.81″) axes
Solid head-housing moves up and down for Z-axis operation providing mass behind heavy cuts
Equipment Included:
Programmable RPM for 3-Axis Control
Manual Pulse Generator
Home Position Switch for Home & Fixture Offset
Left and Right Rear Splash Guard
Table Guard
Chip Pan
“Maxi-Torque” Auto-Air Power Draw Bar and Safety Ring
Coolant System Integrated with CNC Control
Axis Quill Scale with Z Travel
Halogen Work Light
Way Cover Sets
480v Frequency Converter
Mechanical Specifications:
Max. Operation Space: approx. 136″ x 110″ x 105″ H
Footprint of Machine: 100″ x 74″ x 110″ H
Weight: approx. 6,605 lbs.
FOB Our Baltimore, MD Warehouse
