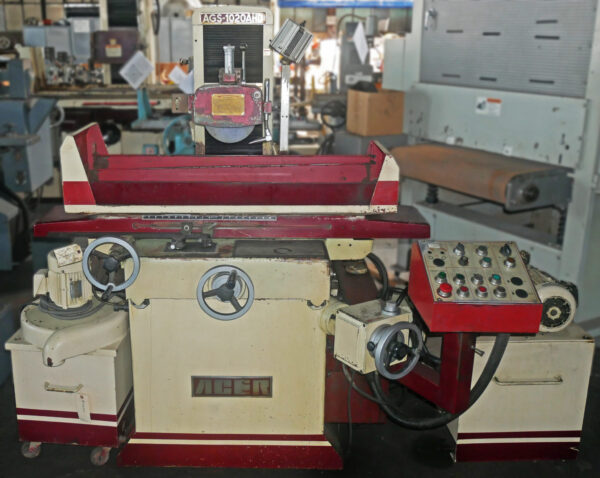

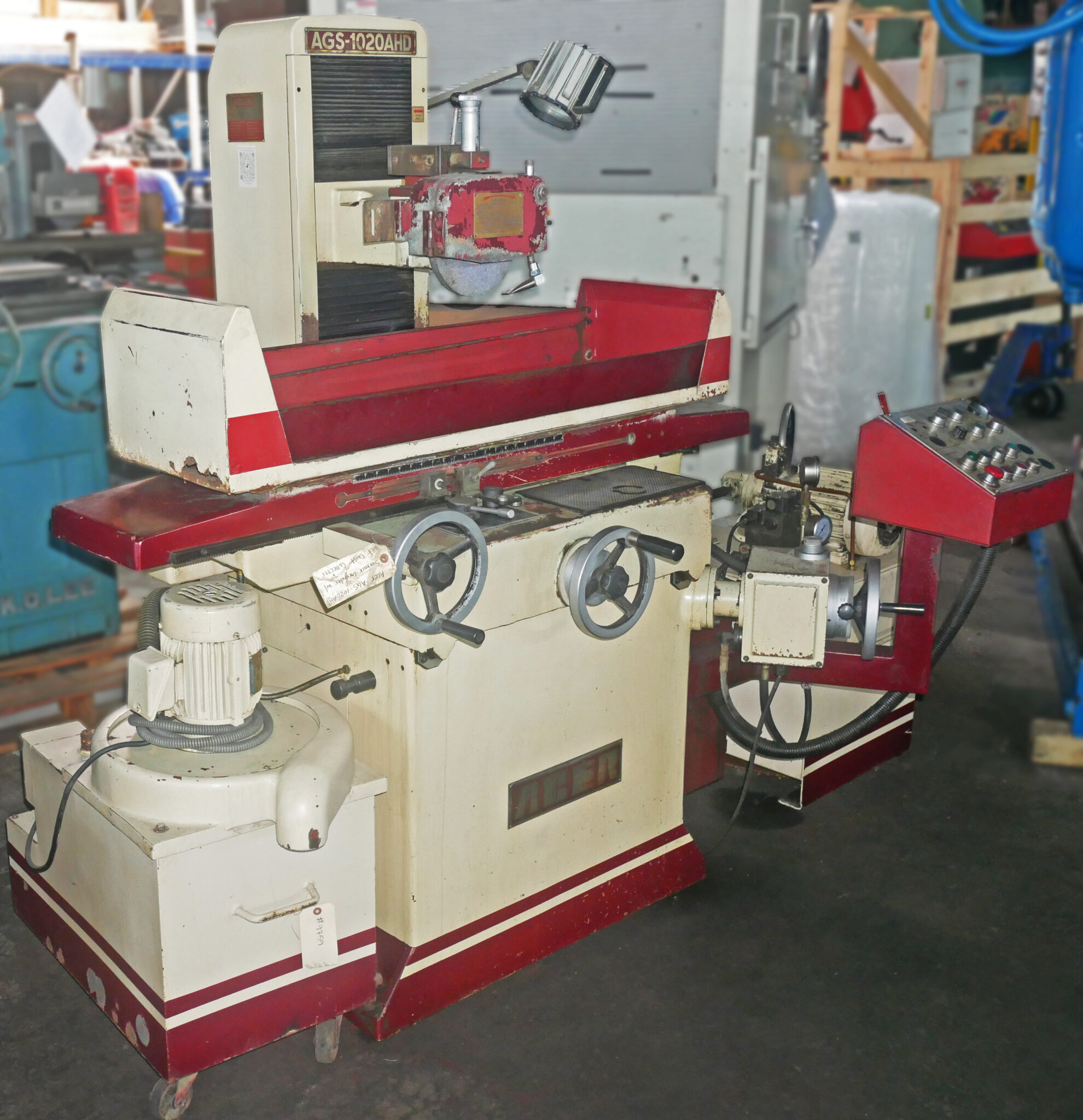

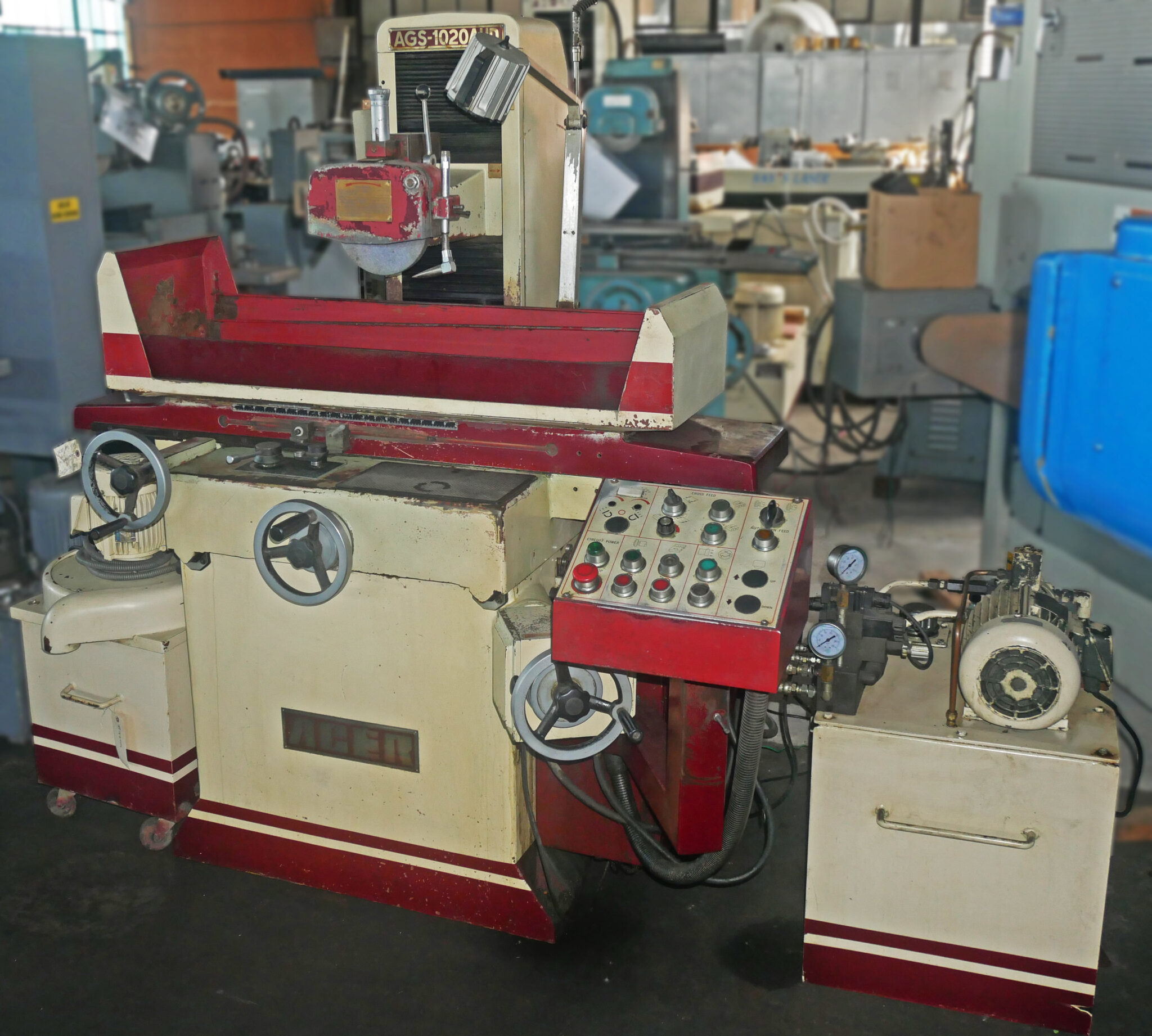

Acer 10″ x 20″ High Precision 2-Axis Automatic Surface Grinder with Wet Dust Collector, AGS-1020AHD
Inventory # 9759
Model: AGS-1020AHD
S/N: 9321012 “1993”
Specifications:
Max. Grinding: 10″ x 20″
Longitudinal Travel: 20 1/2″
Cross Feed Travel: 11″
Working Surface of Table: 9″ x 20″
Spindle Center to Table: 19 3/4″
Variable Table Speed: 16 – 80 FPM
Automatic Crossfeed: 0 – 1″
Downfeed Handwheel / Graduation: 0.0005″
Downfeed Handwheel / Revolution: 0.1″
Longitudinal Travel: 6″ – 20″
Cross Travel: 0 – 10″
Wheel Speed: 3,500 RPM
Grinding Wheel: 8″ x 1 1/4″ x 1/2″
T-Slot: 1″ x 9/16″
Motor: 2 HP / 230v, 460v / 3ph
Standard Features & Equipment Included:
3-Axis Auto Movement, Easy to Operate & Maintain

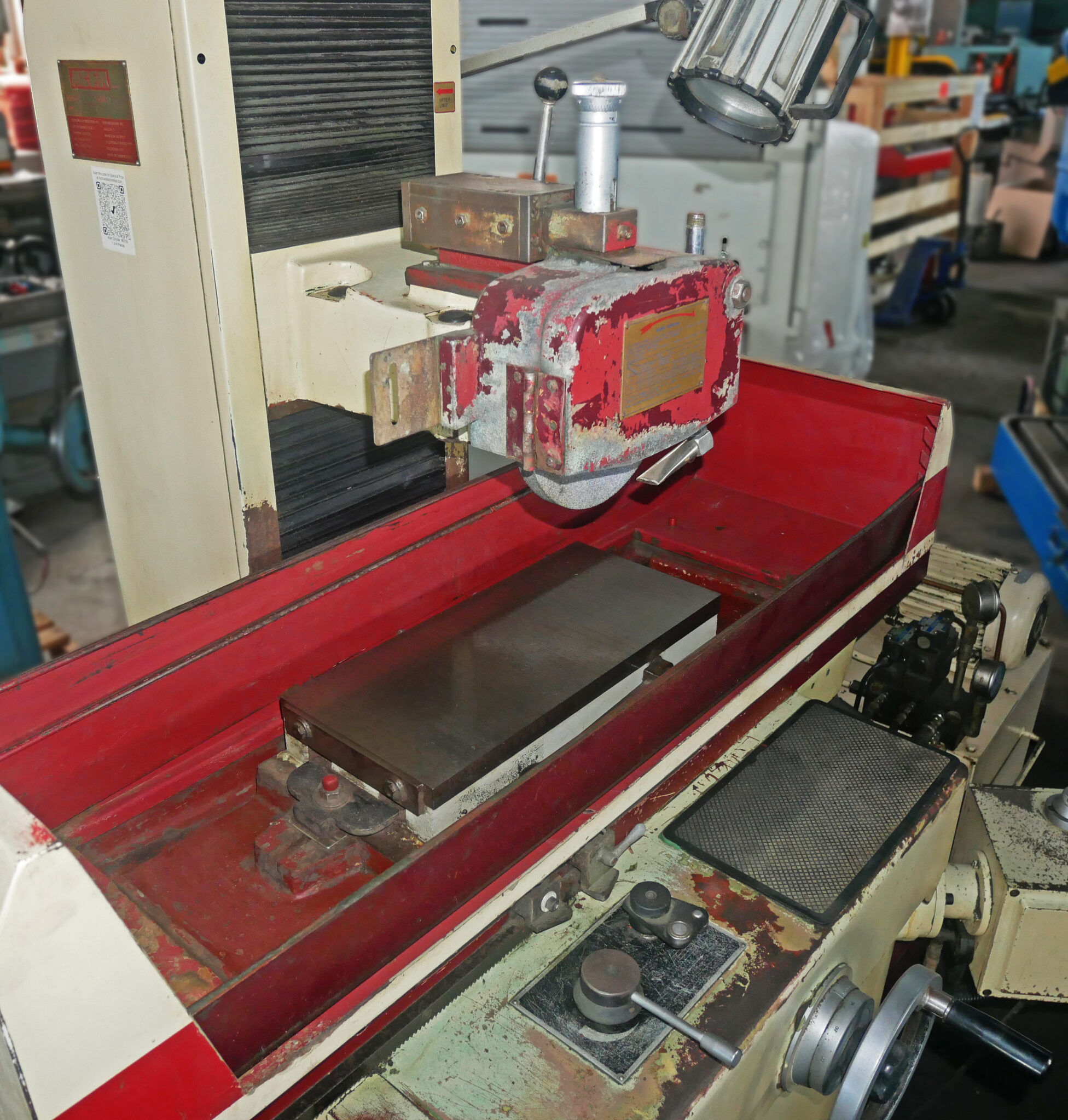

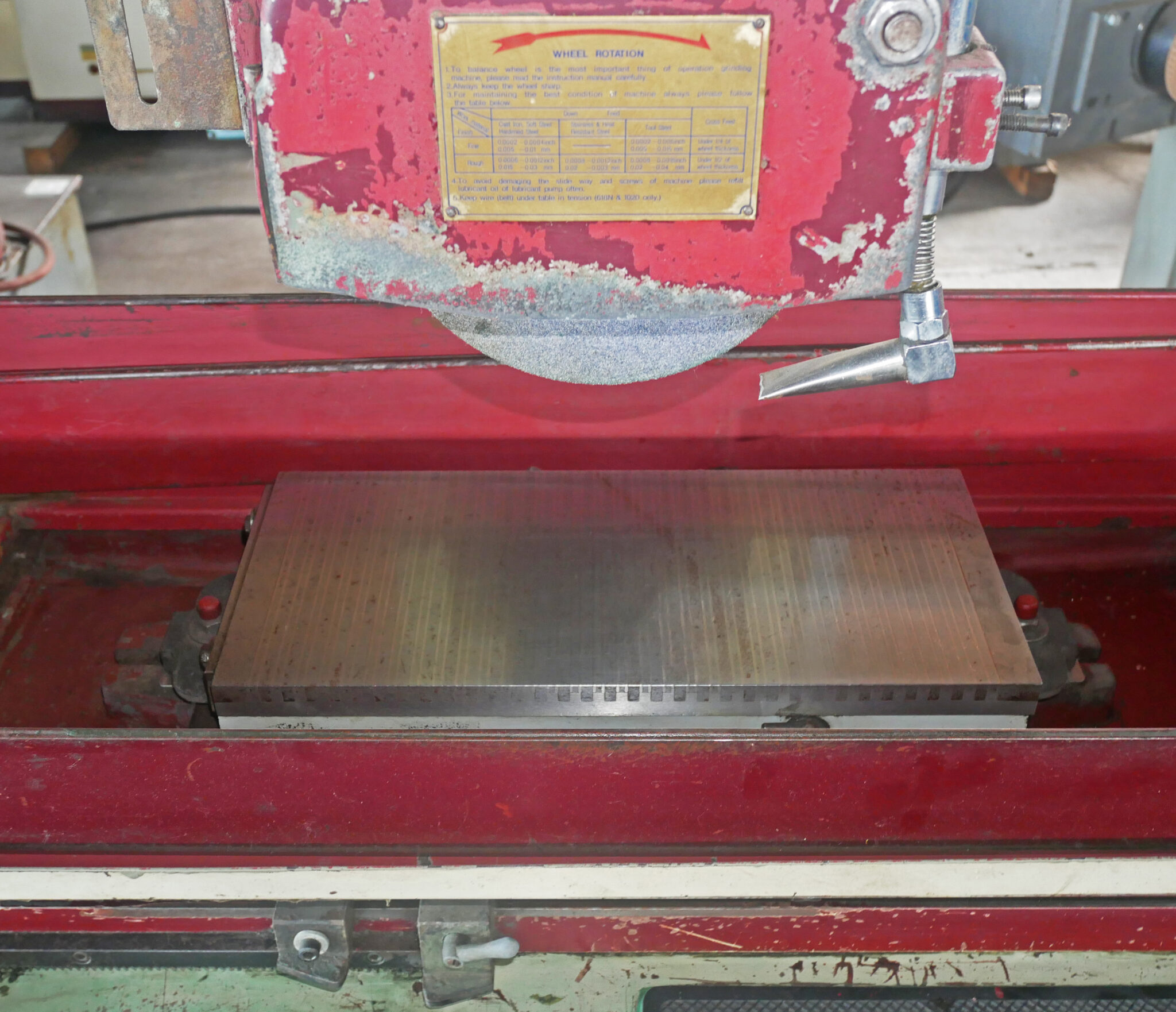

10″ x 20″ Permanent Magnetic Chuck

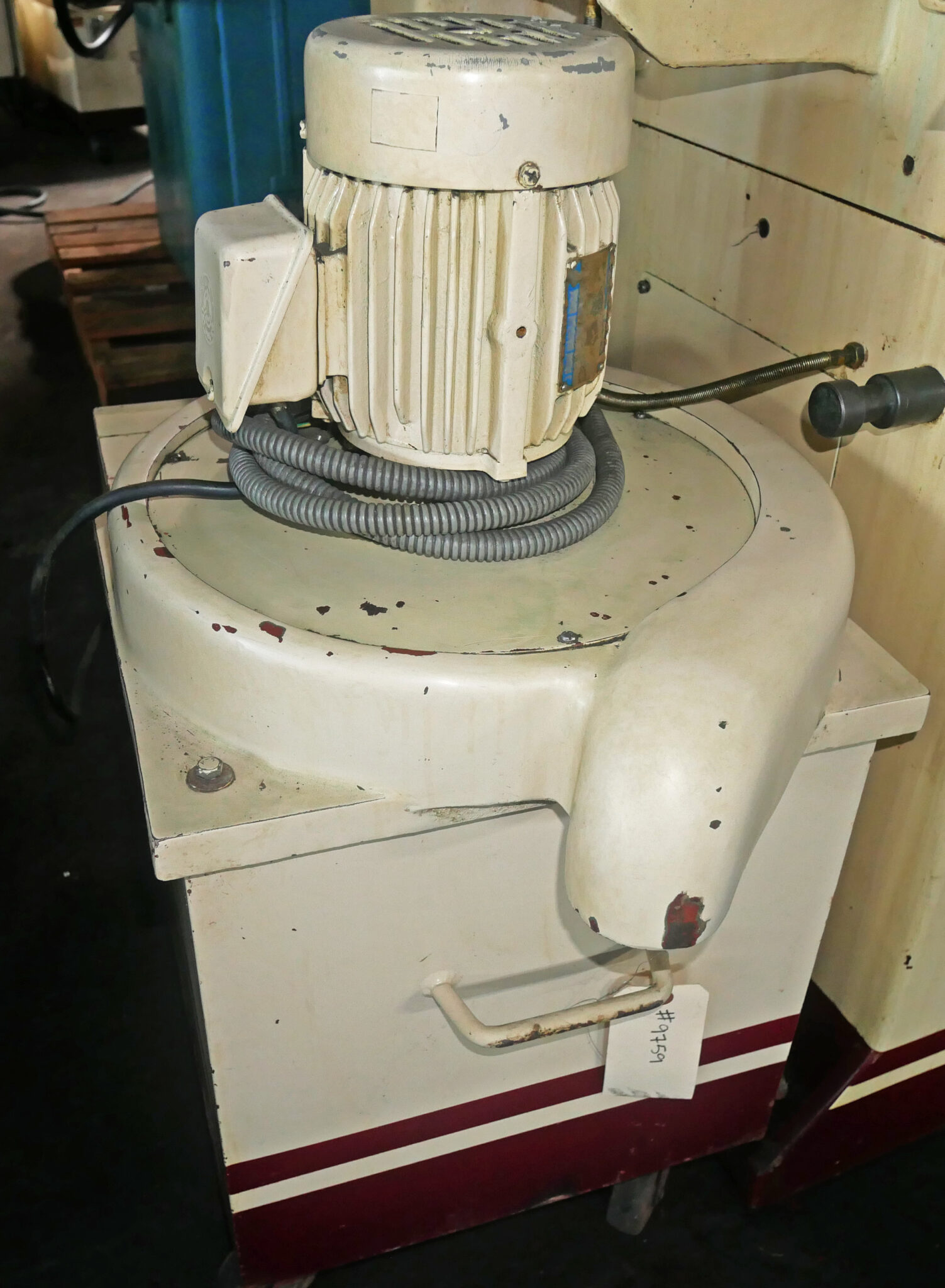

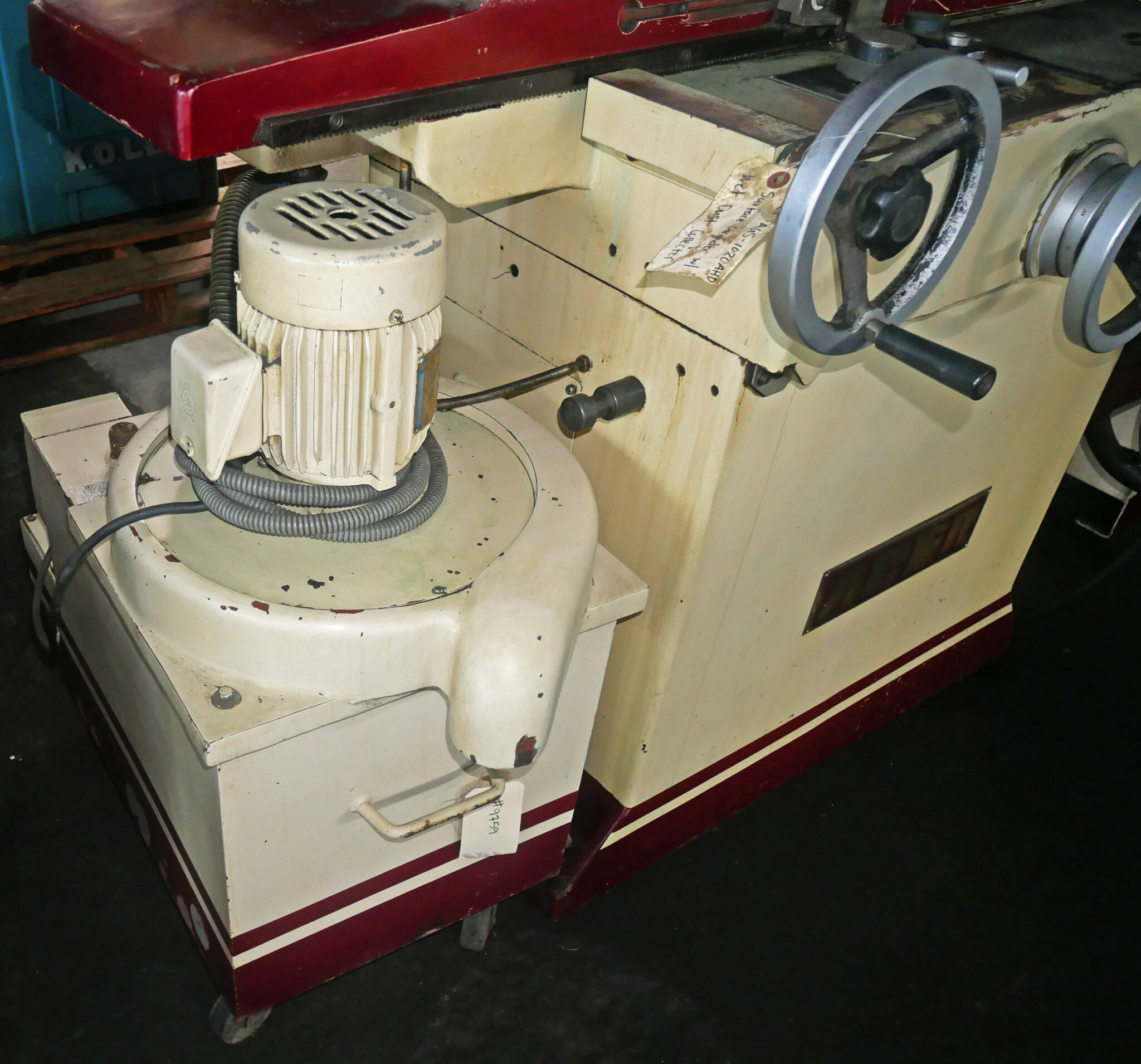

Wet Dust Collector
Auto Surface & Plunge Downfeed
Direct Drive Spindle Equipped with 4 ABEC-7 Angular Contact Ball Bearings

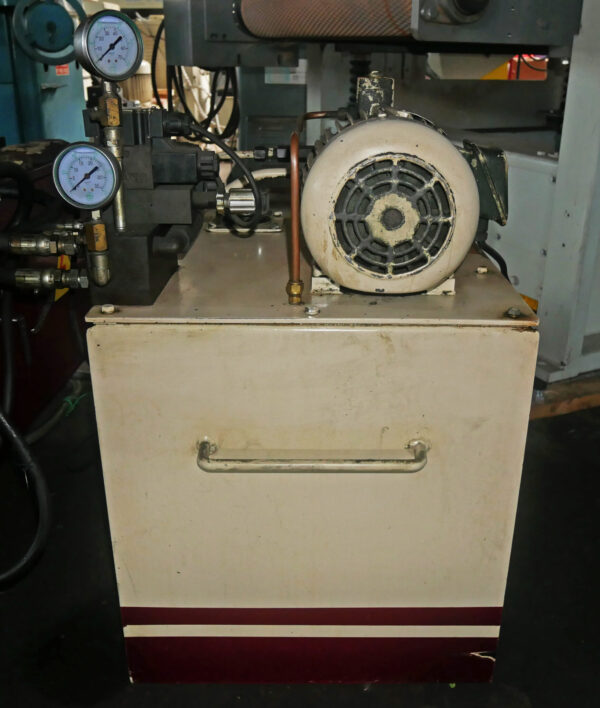

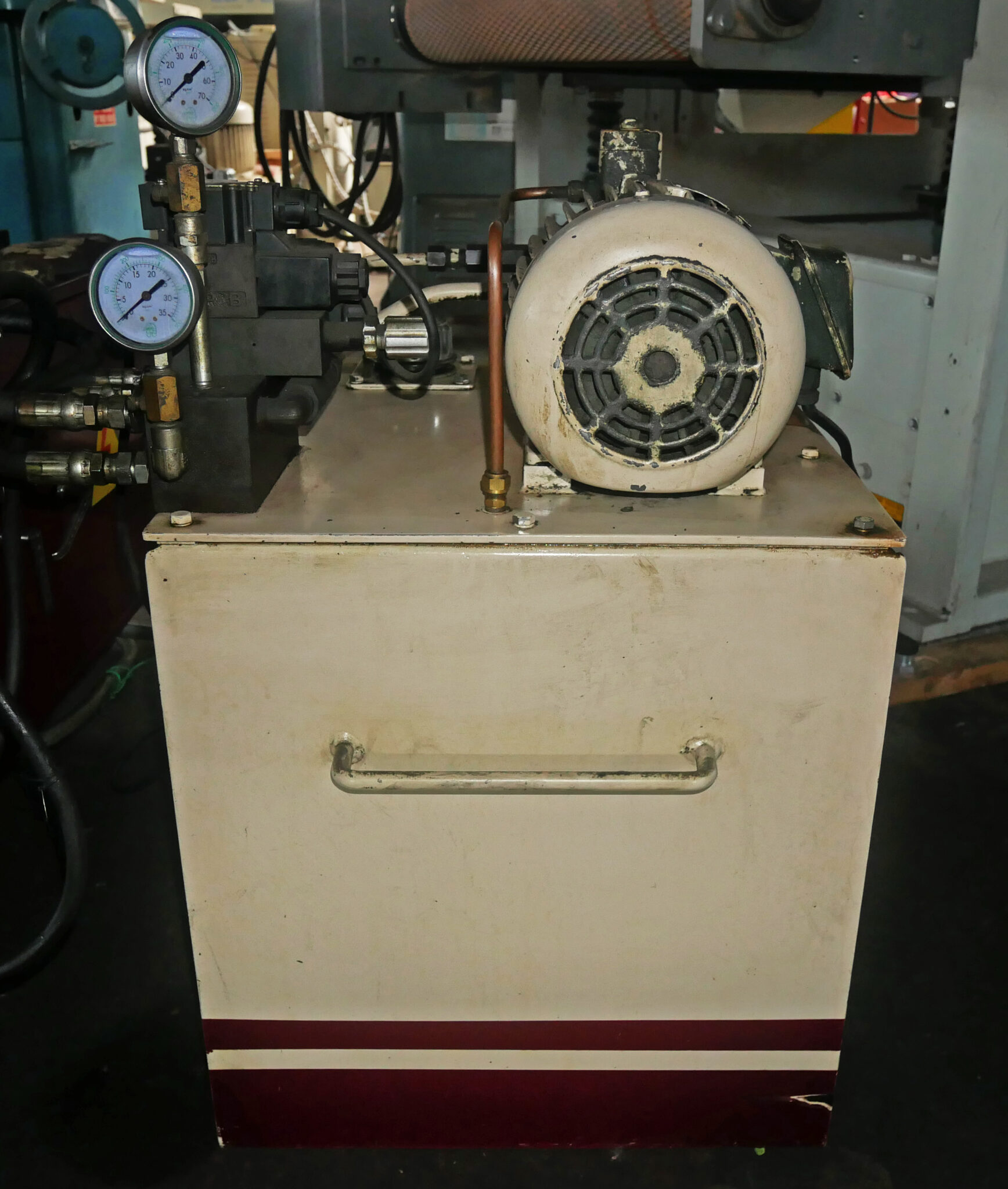

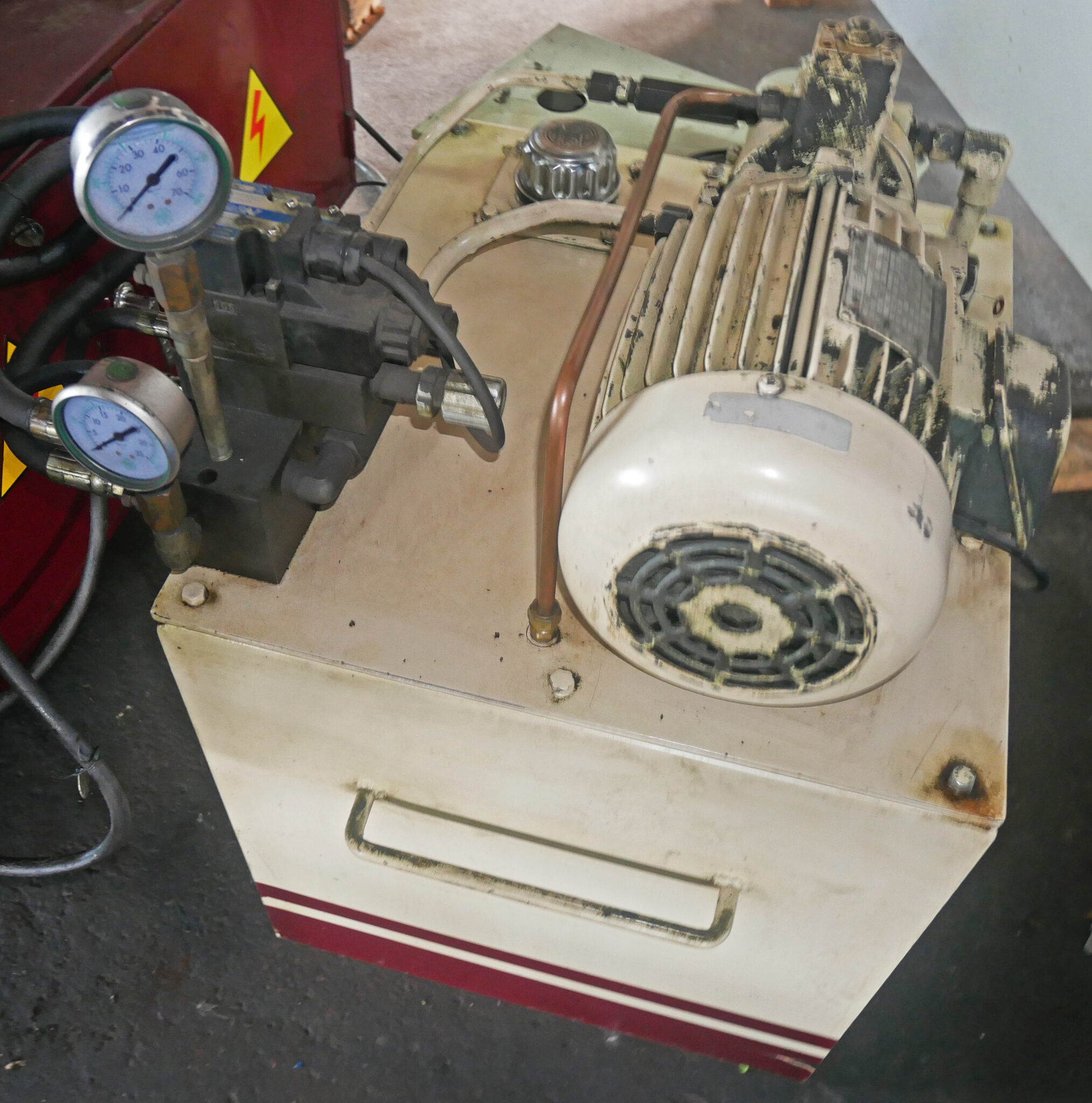

External Dual Hydraulic Pump System: One Each for Auto Incremental Downfeed and Table Longitudinal Travel

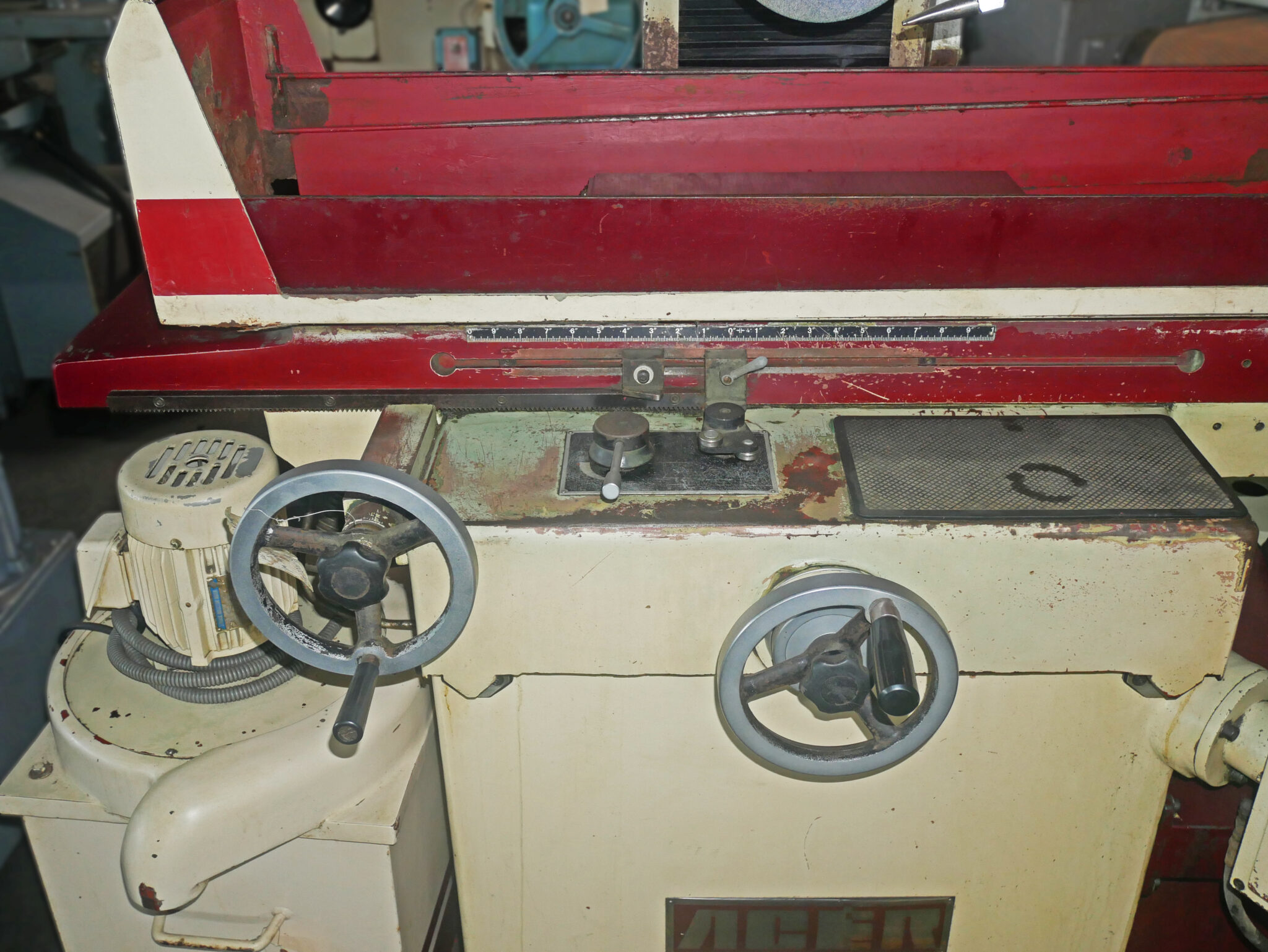

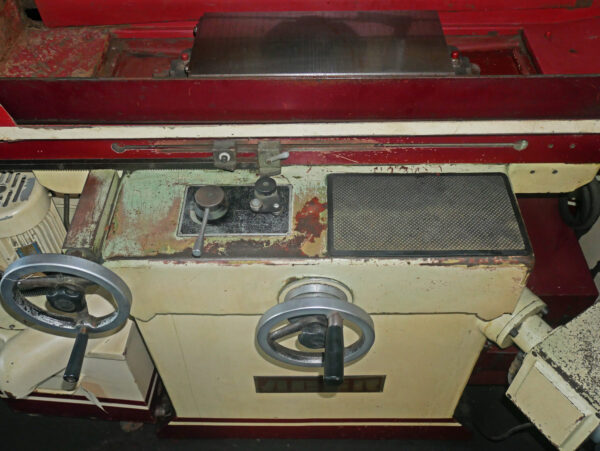

Downfeed Handwheel on Bed, Fine Feed Knob Adjacent to Handwheel

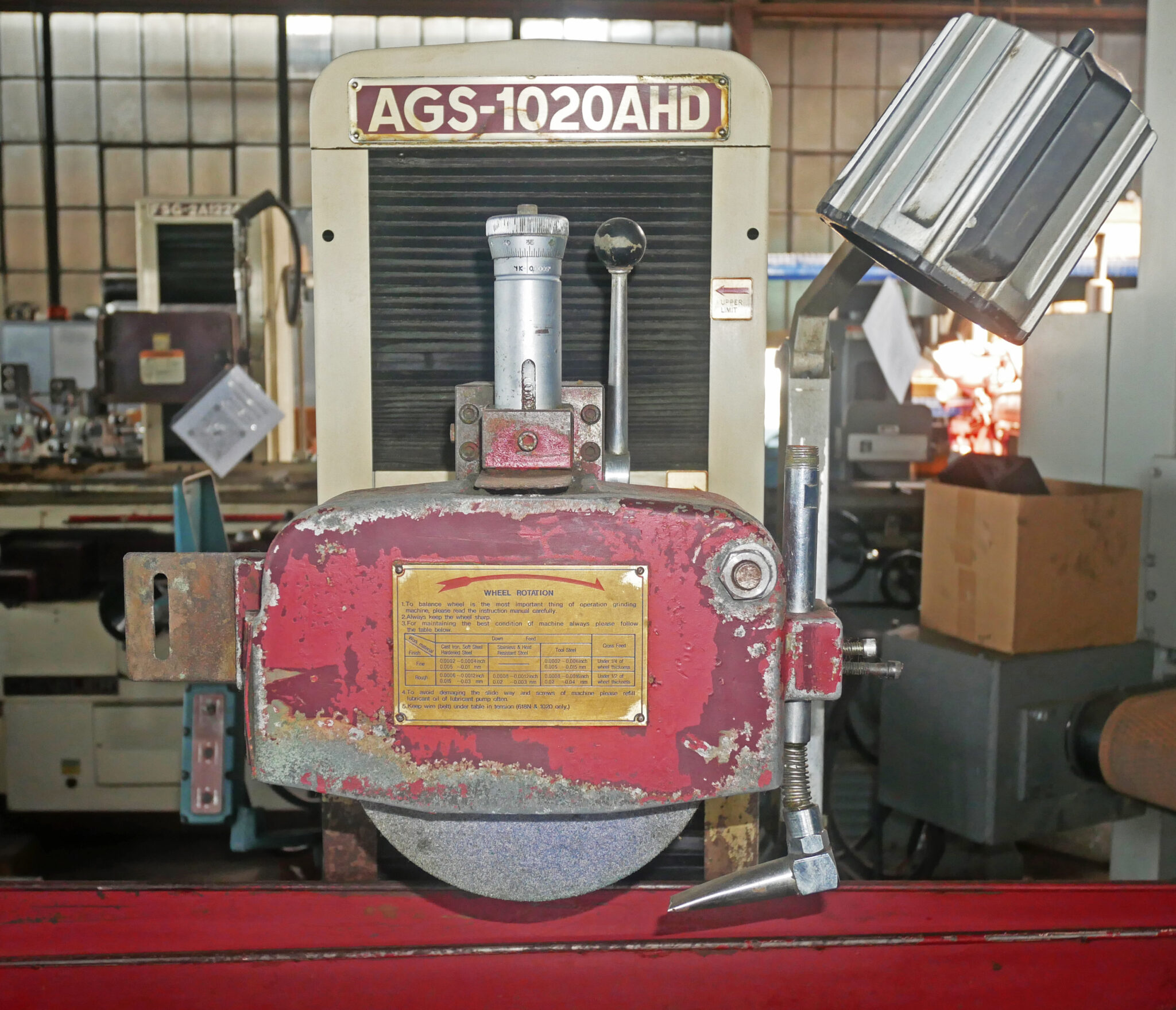

Overhead Manual Parallel Dresser
Dust Suction & Coolant System
Automatic Lubrication System
Reinforced High Column & Heavyweight Meehanite Casting
Double-V Crossfeed Ways; one V, one Flat Table Ways
Double Nut Design for Crossfeed Leadscrew
Extra Wide Saddle at 24 1/2″

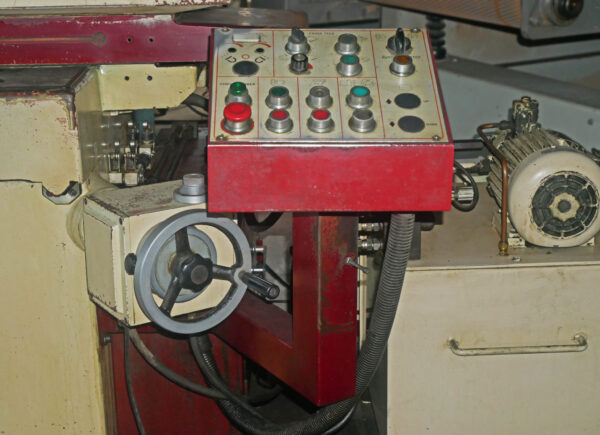

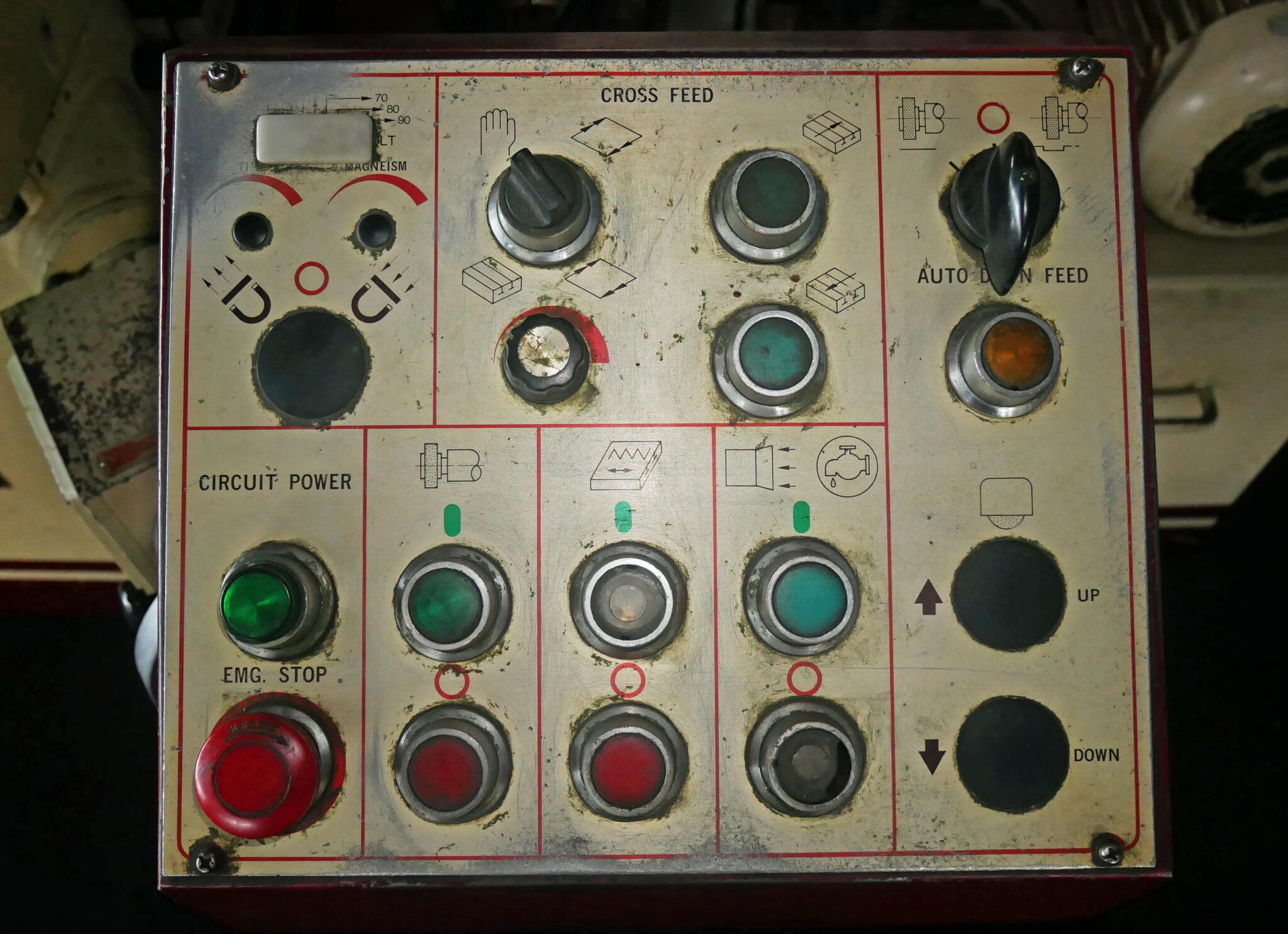

24-Volt Circuit Control
Wheel Balancing Base
Grinding Wheel
Splash Guard
Mechanical Specifications:
Dimensions: 80″ x 73″ x 74″ H
Weight: approx. 2,970 lbs.
FOB Our Baltimore, MD Warehouse
